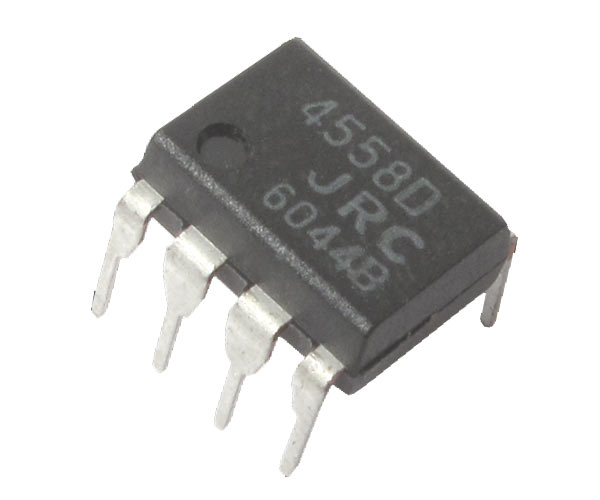

4558D Dual op amp
The 4558D is a dual operational amplifier (op-amp) IC designed for a wide range of analog signal processing applications. It offers high gain, wide bandwidth, and low noise, making it suitable for various audio, industrial, and instrumentation applications.
Key Features:
- Dual Op Amp: Contains two independent, high-gain, internally frequency-compensated operational amplifiers.
- Wide Supply Voltage Range: Operates over a wide range of supply voltages, typically from ±3V to ±18V.
- High Gain: Provides a typical open-loop voltage gain of 100 dB.
- Wide Bandwidth: Offers a wide bandwidth of typically 3 MHz.
- Low Noise: Features low input noise voltage, making it suitable for audio applications.
- Short-Circuit Protection: Includes internal circuitry to protect against output short circuits.
- Package Type: Available in various packages, including DIP-8 and SOP-8.
- Input Offset Voltage: Typically 2 mV
- Input Bias Current: Typically 200 nA
- Slew Rate: Typically 1 V/μs
- Common-Mode Rejection Ratio (CMRR): Typically 70 dB
- Power Supply Rejection Ratio (PSRR): Typically 90 dB
- Operating Temperature Range: 0°C to +70°C
- Audio Amplifiers: Suitable for pre-amplification and audio signal processing.
- Active Filters: Used in the design of various active filter circuits.
- Signal Conditioning: Ideal for amplifying and conditioning analog signals.
- Instrumentation: Applied in precision measurement and instrumentation circuits.
- Industrial Control: Used in control systems and industrial automation.
- Oscillators: Employed in the design of oscillator circuits for signal generation.
