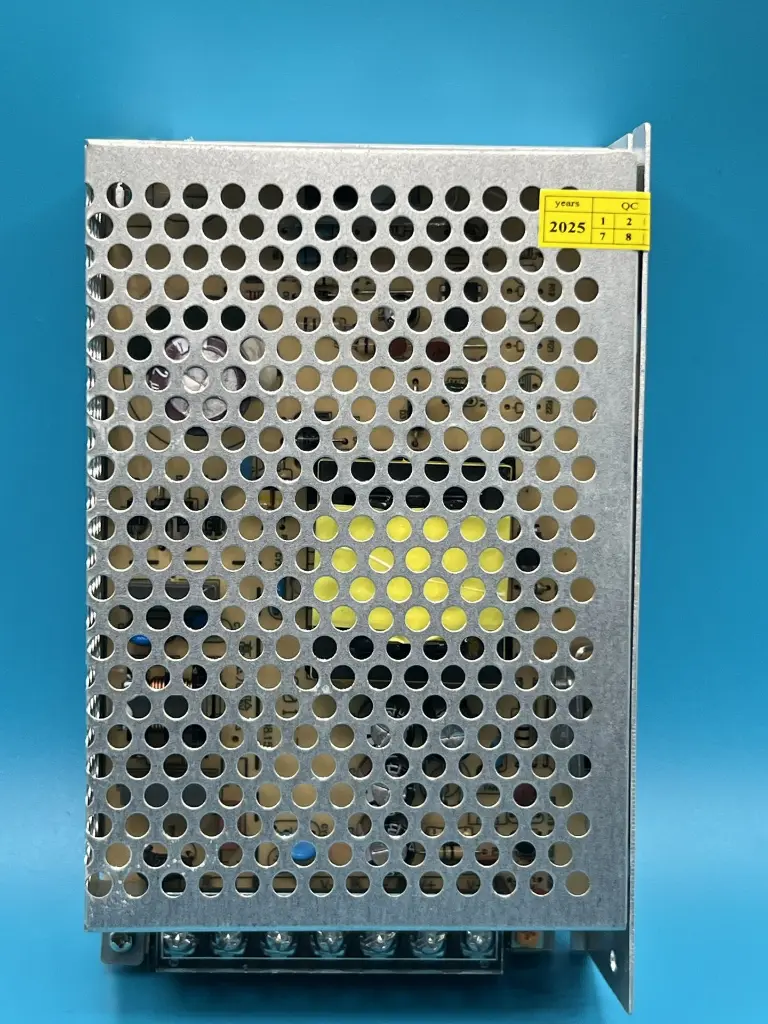

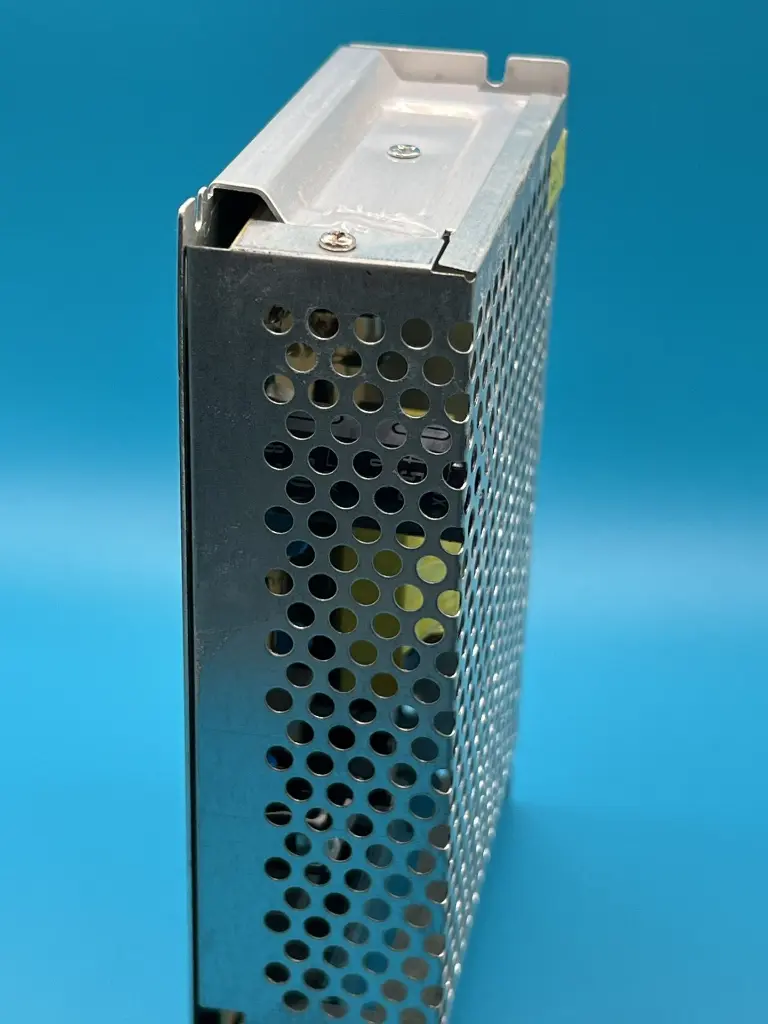

12V 10A Power Supply
9 sold in last 24 hours
The 12V 10A Power Supply is a robust and efficient power source designed to deliver a stable 12V output with a maximum current of 10A. This power supply is ideal for a wide range of applications, including powering LED strips, CCTV cameras, single-board computers, and other electronic devices that require a reliable 12V DC supply. It features over-voltage, over-current, and short-circuit protection to ensure the safety of connected devices.
Key Features:
- Output Voltage: 12V DC
- Output Current: 10A
- Power Output: 120W
- Input Voltage: 100-240V AC, 50/60Hz

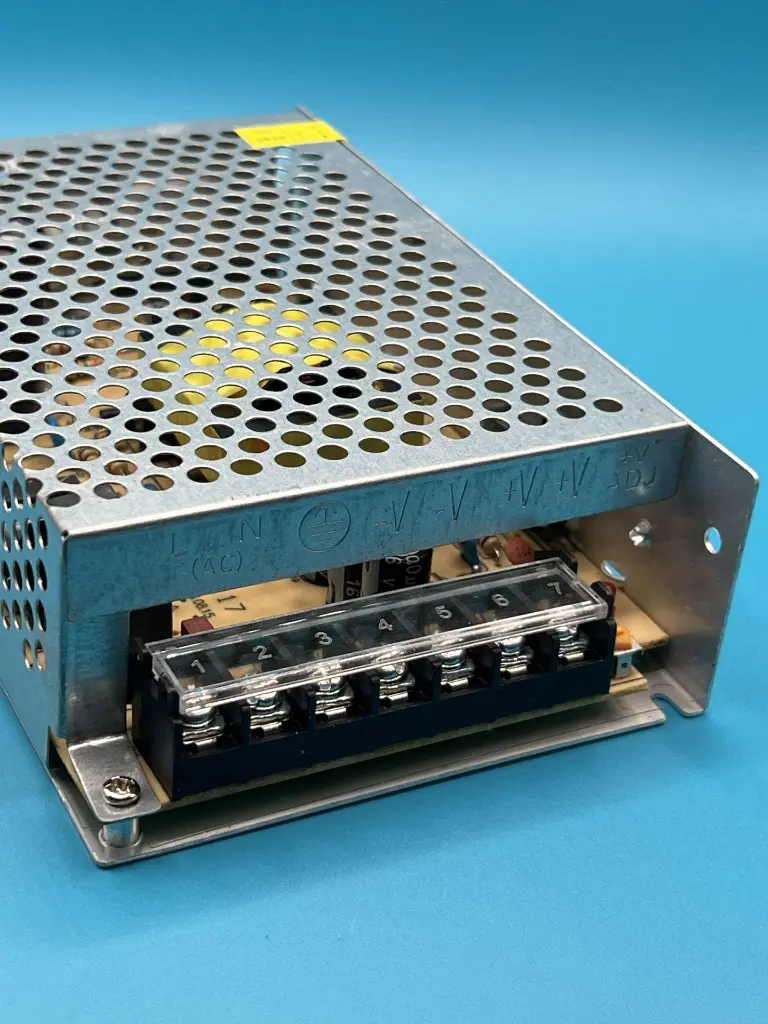

- Connector Type: 5.5mm x 2.1mm DC barrel jack or screw terminals
- Protection: Over-voltage, over-current, and short-circuit protection
- Efficiency: High efficiency for consistent power delivery
- Cooling: Built-in cooling fan or heat dissipation mechanism
- Certifications: CE, FCC, RoHS compliant
- Output Voltage: 12V DC ± 5%
- Output Current: 10A
- Power Output: 120W
- Input Voltage: 100-240V AC, 50/60Hz
- Ripple & Noise: ≤ 150mV
- Load Regulation: ± 1%
- Line Regulation: ± 1%
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -20°C to +85°C
- Humidity: 0% to 95% non-condensing
- Dimensions: Approx. 170mm x 63mm x 35mm
- Weight: 300 g
- Connector Type: 5.5mm x 2.1mm DC barrel jack or screw terminals
- Cable Length: Approx. 1.2 meters
- LED Strips: Ideal for powering 12V LED strips and other lighting projects.
- CCTV Cameras: Suitable for powering security cameras and surveillance systems.
- Single-board Computers: Can be used with Raspberry Pi, Arduino, and other microcontroller projects.
- DIY Electronics: Perfect for hobbyists and makers working on various electronics projects.
- Industrial Use: Suitable for industrial control systems and other applications requiring a stable 12V power source.
- Communication Equipment: Can be used to power communication devices and networking equipment.
