Description

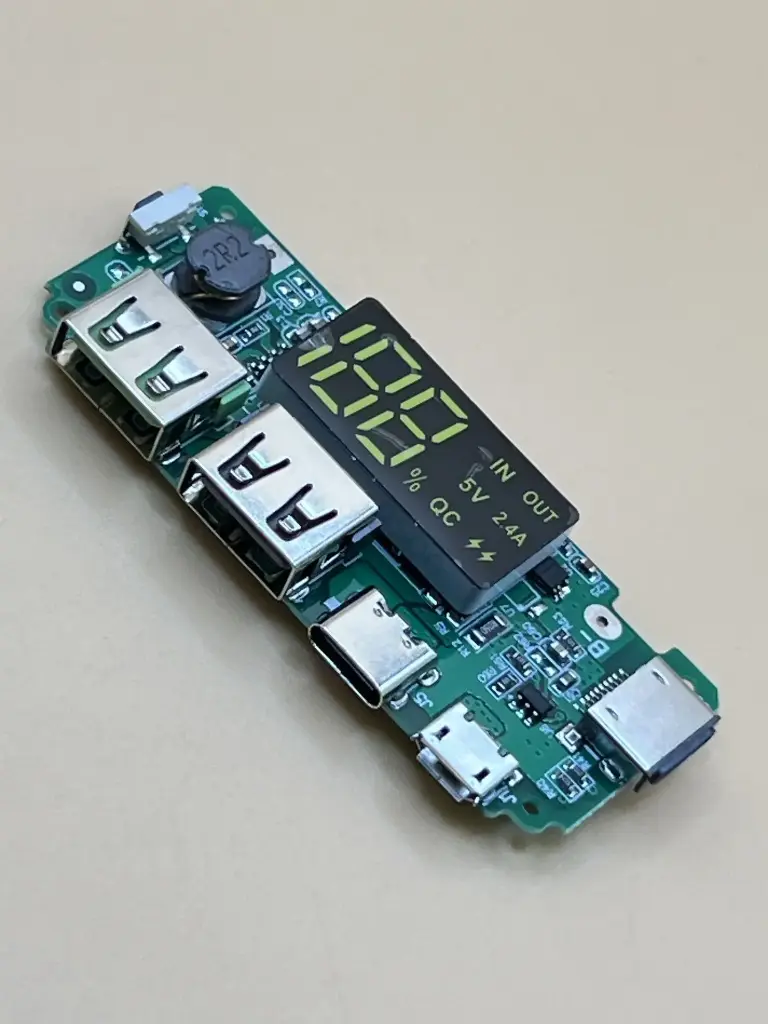

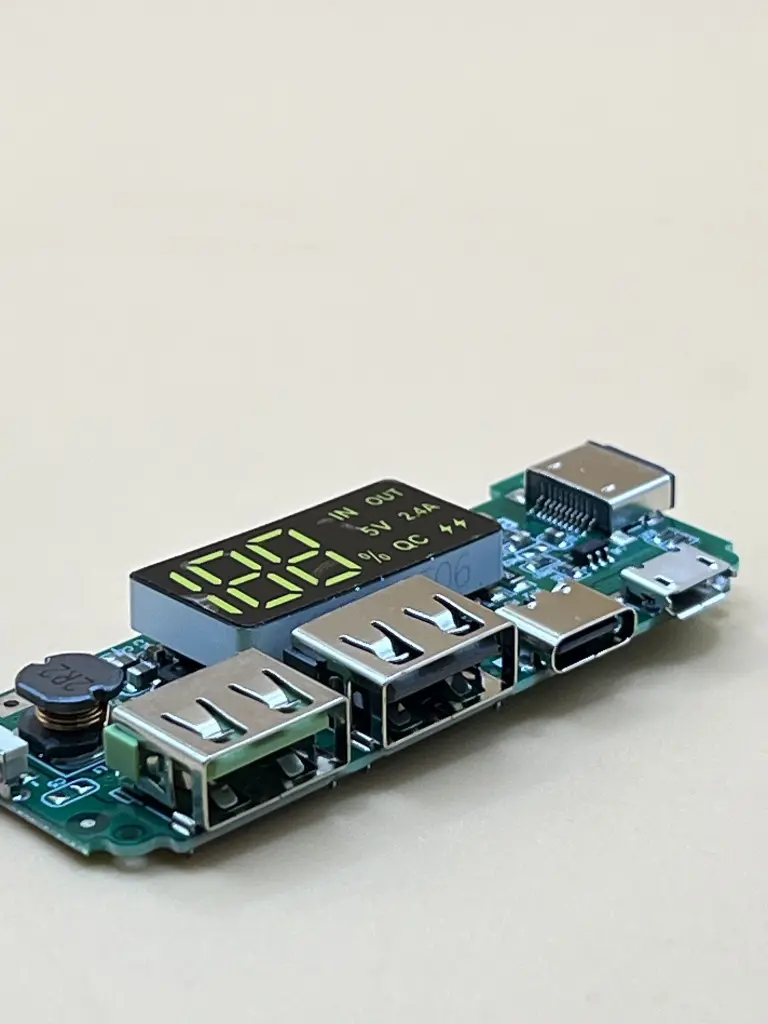

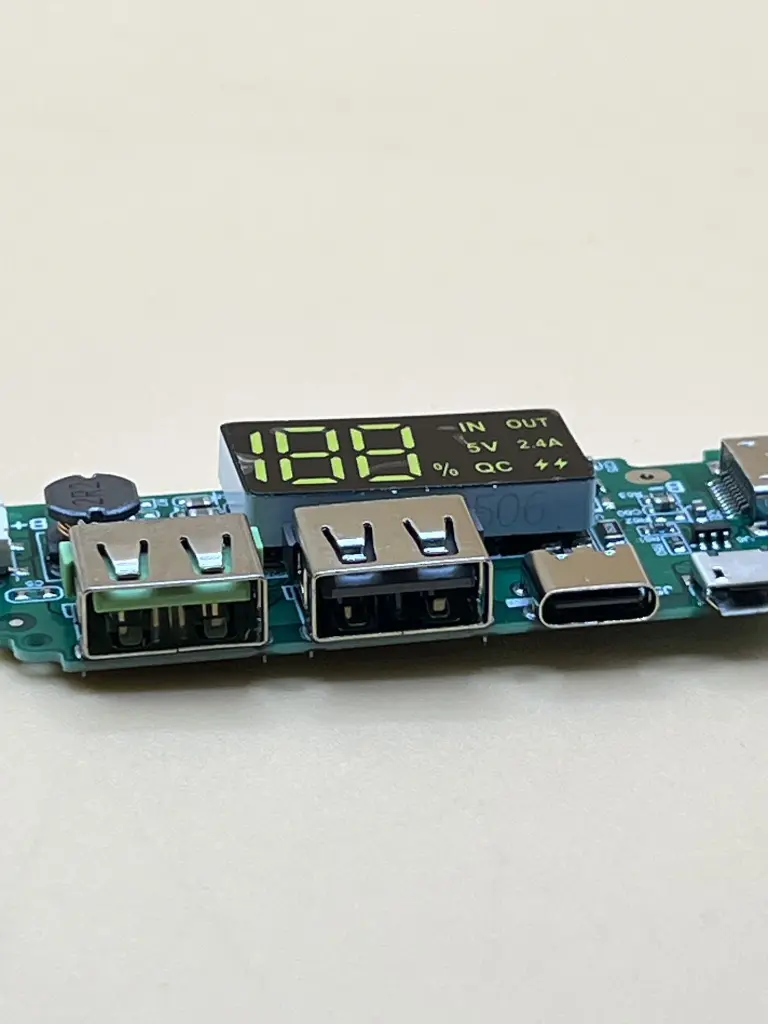

The 5V 2.4A Power Bank Module with Display is a compact, high-efficiency energy conversion board that transforms a single 3.7V lithium-ion battery into a portable power bank. It features multiple input interfaces—Type-C, Micro USB, and Lightning (Apple) for flexible charging options.
The onboard digital display provides real-time feedback of battery percentage and charging/discharging status, while the integrated protection circuitry ensures safe and reliable operation. A dedicated LED connection allows for flashlight functionality, making it a complete power solution for portable and DIY applications.
Key Features
- High Output Current: Provides a stable 5V, 2.4A output ideal for powering microcontrollers, sensors, and small electronics.
- Integrated Digital Display: Real-time battery percentage (0–100%) with IN/OUT indicators; double-click the button to wake the display from standby.
- Dual Functionality: Capable of charging the battery and powering external devices simultaneously.
- Comprehensive Protection: Built-in safeguards against overcharge, over-discharge, overcurrent, overvoltage, overheating, and short circuits.
- Plug-and-Play Output: Standard USB-A output for universal compatibility with most USB-powered devices.
- Compact Design: Lightweight and easy to embed in enclosures, portable systems, or DIY power projects.
- Flashlight Support: Optional LED connection for use as a flashlight—common in power bank designs.
- Battery Compatibility: Works with standard 3.7V 18650 lithium-ion or lithium-polymer cells.
Specification
- Input Voltage (Charging): 5V DC
- Output Voltage: 5V DC
- Maximum Output Current: 2.4A
- Battery Type: Single-cell 3.7V Li-ion / Li-Po (not included)
- Input Interfaces: Type-C, Micro USB, Lightning
- Output Interface: Dual USB-A ports (max combined 2.4A)
- Display Type: Digital LED or LCD (varies by model)
- Charging Efficiency: Greater than 90%
- Discharge Efficiency: Greater than 94%
- Dimensions: Approximately 65mm × 25mm × 5mm
- Operating Mode: Charge and discharge supported simultaneously
Application
- DIY and custom-built power banks
- Battery-powered embedded or IoT systems
- Outdoor and wearable electronic projects
- Educational electronics and STEM learning kits
- Emergency and portable backup power supplies
