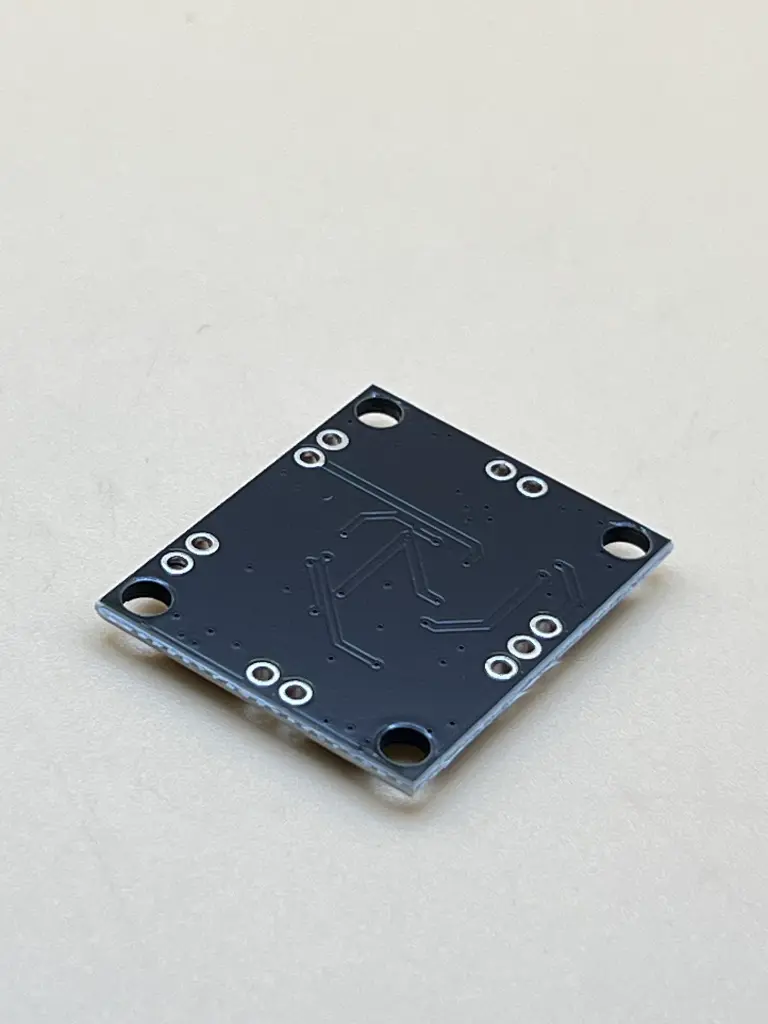

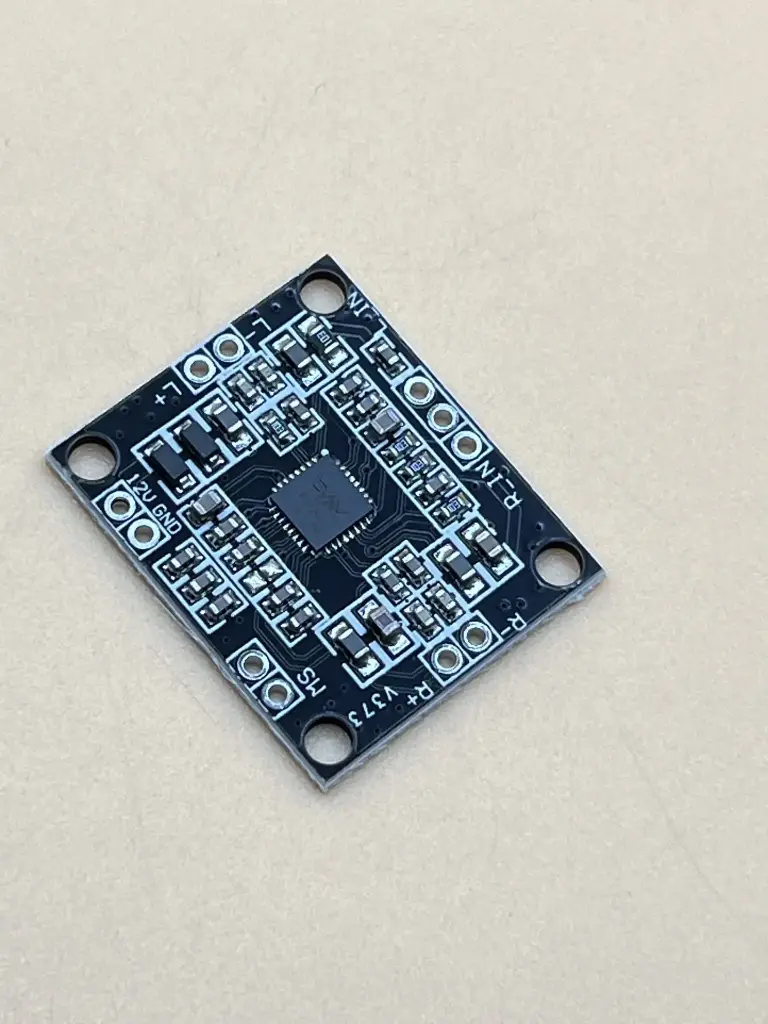

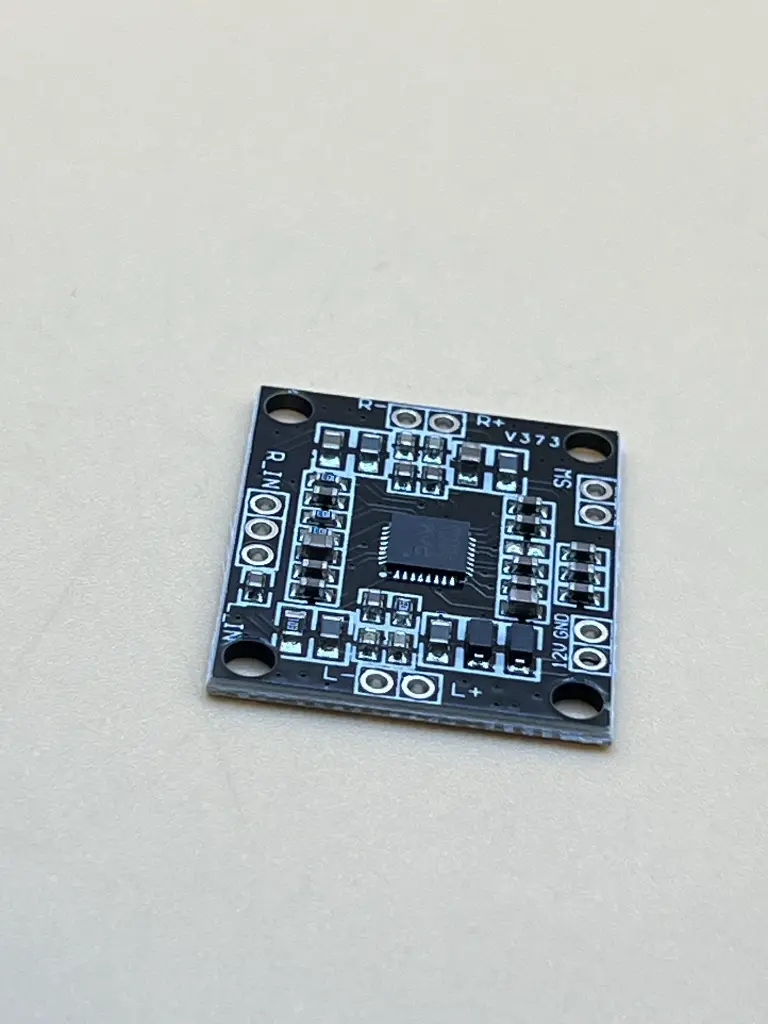

PAM8610 Class D Digital Power Amplifier
13 sold in last 24 hours
The PAM8610 Class D Digital Power Amplifier is a compact, highly efficient stereo audio amplifier capable of delivering up to 2×15W output power into 8Ω speakers.
Key Features
- Class D Amplification: High-efficiency, low heat output design
- Stereo Output: Delivers 10W per channel at 8Ω (with 12V supply)
- Compact PCB Module: Easy integration into small or portable devices
- Wide Supply Voltage: Operates from 7V to 15V DC
- Low EMI and THD: Clear, distortion-free audio output
- No Heatsink Required: Efficient design eliminates the need for bulky cooling
- High-quality sound reproduction:The amplifier delivers clear and top-quality sound, resulting in an enhanced listening experience.
- Energy efficient:With an efficiency of over 90%, the module consumes less power, beneficial for both the device’s lifespan and energy consumption.
- Extended volume control:The 32-step DC volume control allows the user to adjust the sound volume as desired, providing a personalized listening experience.
- Working Mode: Class D (PWM)
- Channel Type:Dual Channel stereo
- Output Power: 2×15W @ 8Ω, 13V
- Operating Voltage: 7V – 15V DC
- Max Wattage:15W
- Volume Control Range: +32dB to -75dB
- Volume control resolution:32 Steps
- Efficiency: Over 90%
- Speaker Impedance: 4Ω – 8Ω recommended**
- THD+N: 0.1%
- Input Type: Analog audio
- Board Dimensions: Approx. 30mm × 25mm
- Weight: 11g
- DIY portable speaker systems
- Battery-powered audio devices
- Bluetooth speaker projects
- Embedded sound output for IoT or robotics
- Speaker output in TV Projectors and computers.
