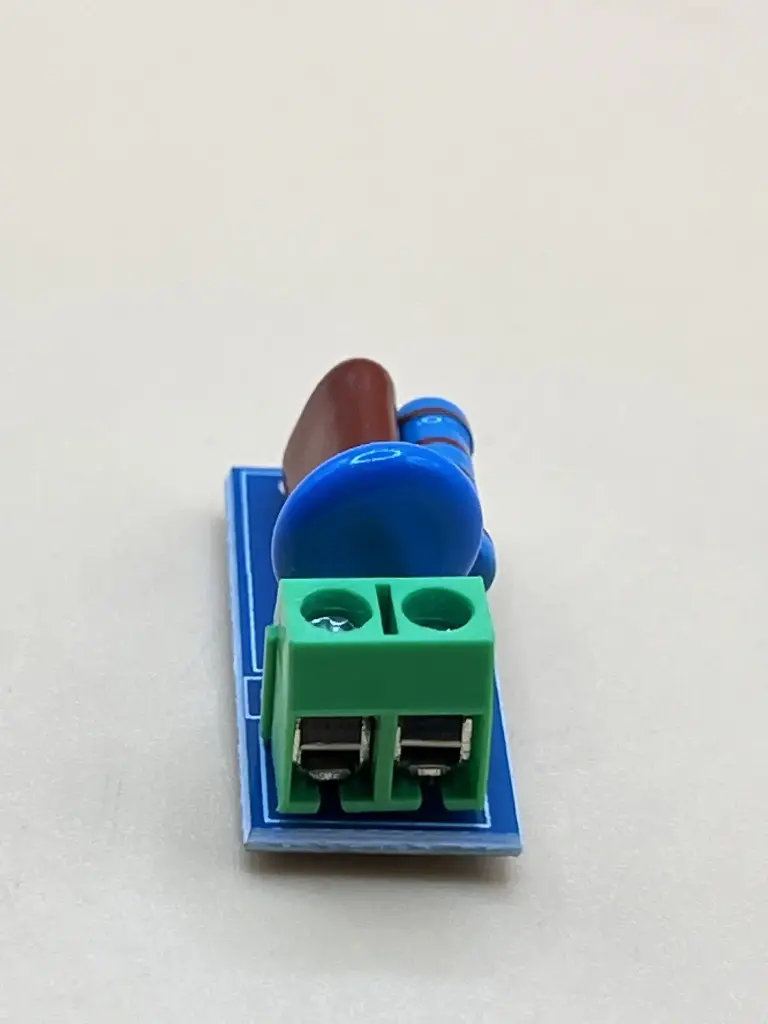

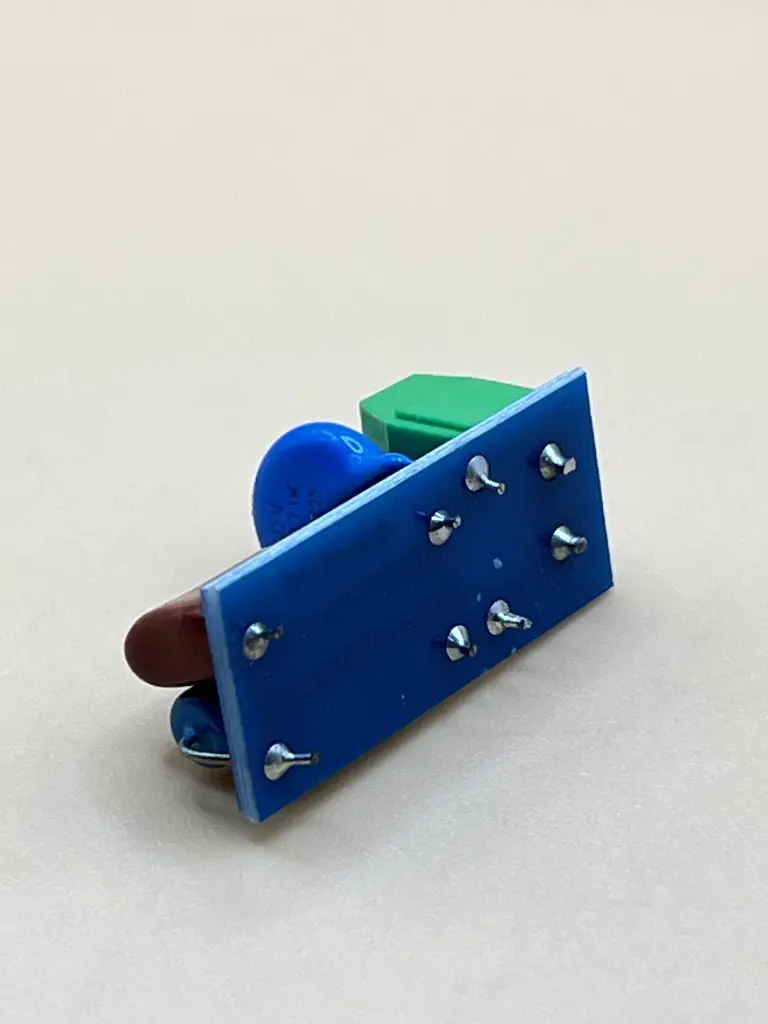

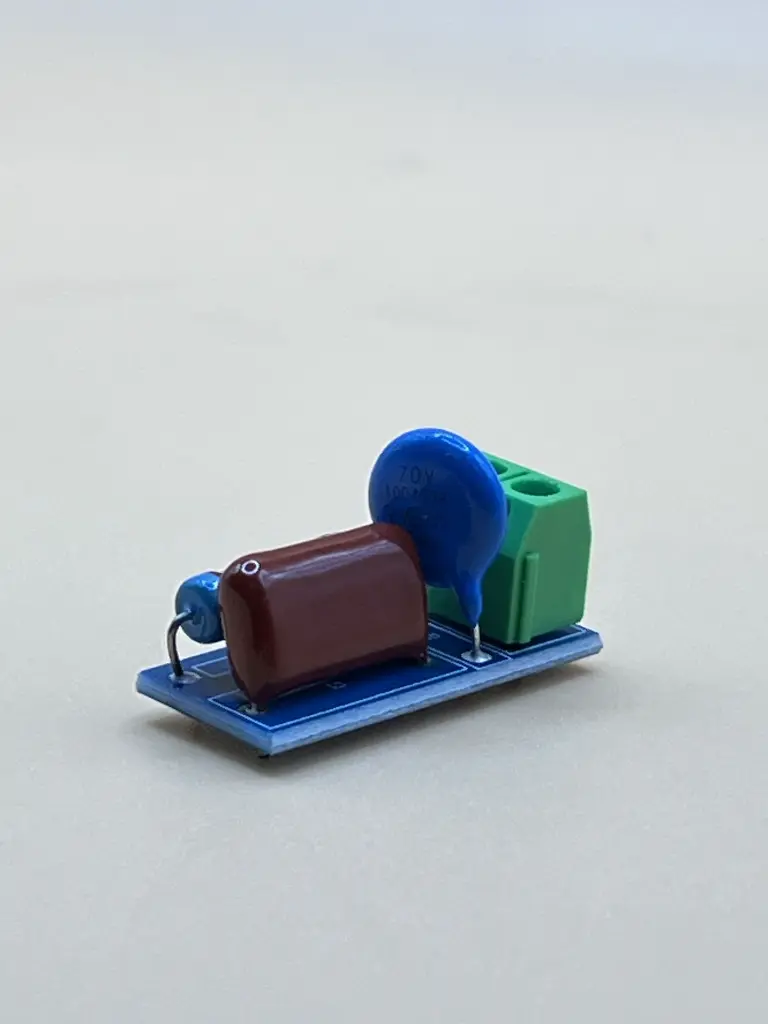

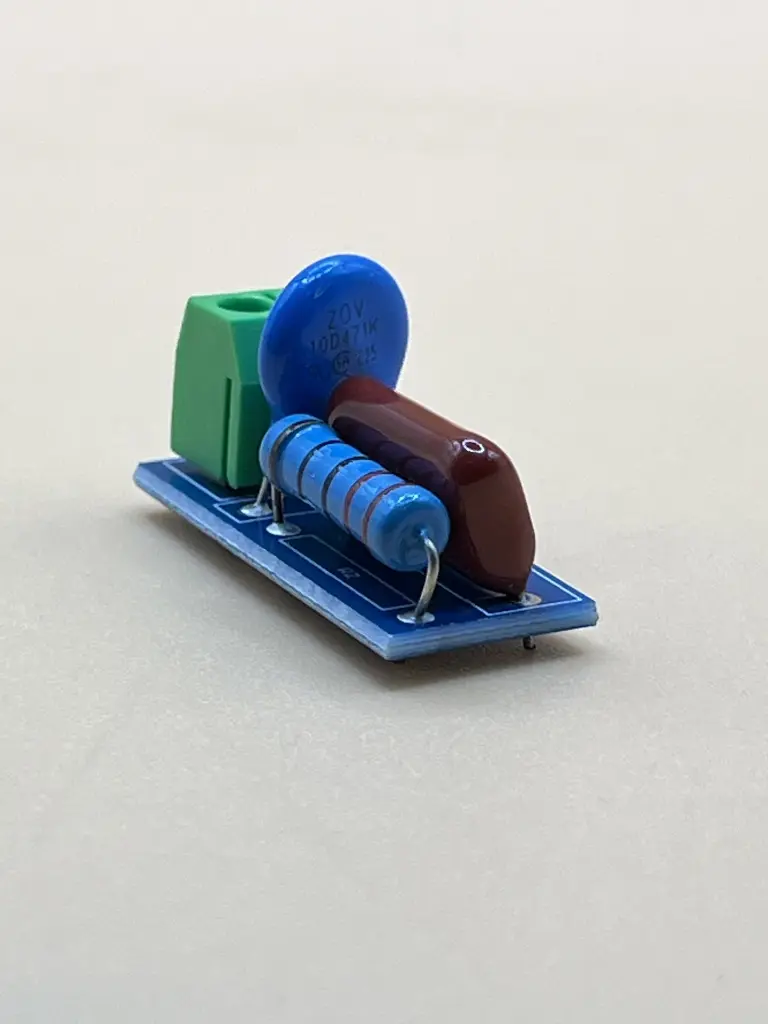

RC anti EMI absorbsion circuit module

The RC anti EMI absorption circuit module consists of a resistor and capacitor connected in series, placed in parallel with switching components. This setup enhances the voltage and current waveforms experienced by electronic power devices during switching operations. The circuit module helps protect switches like relays and thyristors from voltage spikes caused by inductive loads when switching on or off. It also reduces electromagnetic interference and improves the microcontroller’s resistance to electrical noise. Features and Specifications:

1. Compatible with AC or DC inductive loads ranging from 5V to 400V (up to 1000W), offering protection for relay contacts and thyristors.
2. Absorbs back electromotive force generated by inductive loads.
3. Includes a varistor to prevent excessive voltage changes that could cause relay contacts to weld.
4. Enhances the circuit's resistance to electrical interference.
5. Equipped with crimp terminals for easier and more secure wiring.
6. Resistor value: 220 ohms.
7. Capacitor value: 100nF (0.1µF).
8. Dimensions: 3.1 * 1.3cm

Applications:

1. Relay Contact Protection:
2. Thyristor and Triac Protection:
3. Inductive Load Switching:
4. Reducing Electromagnetic Interference (EMI):
