Description

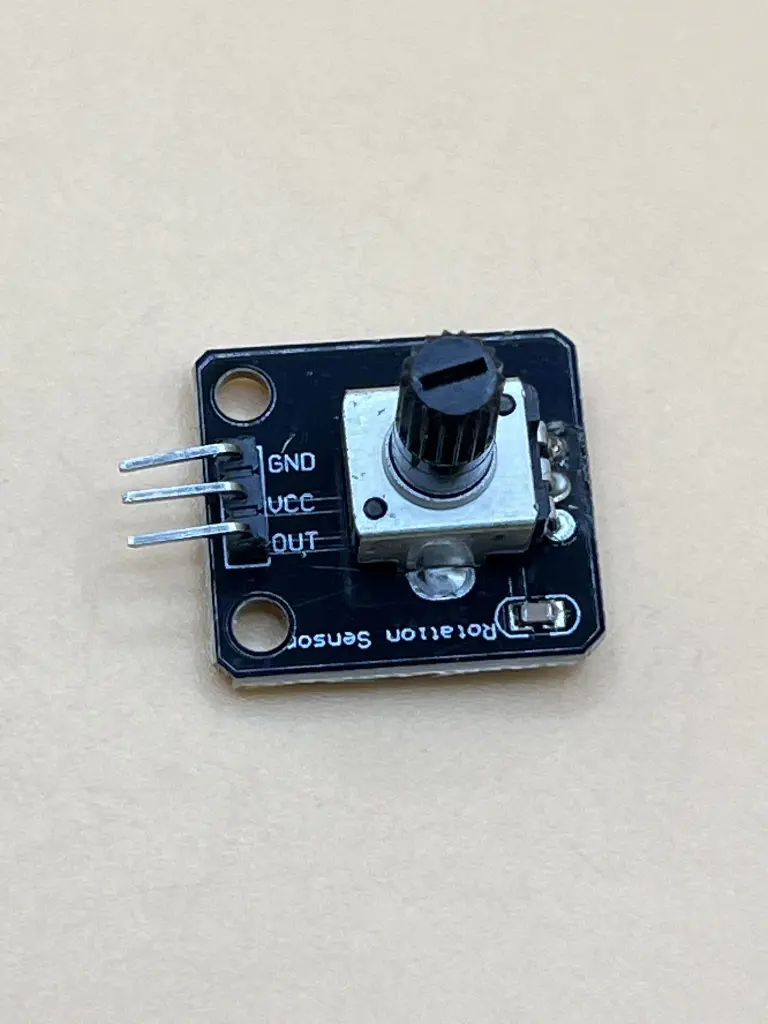

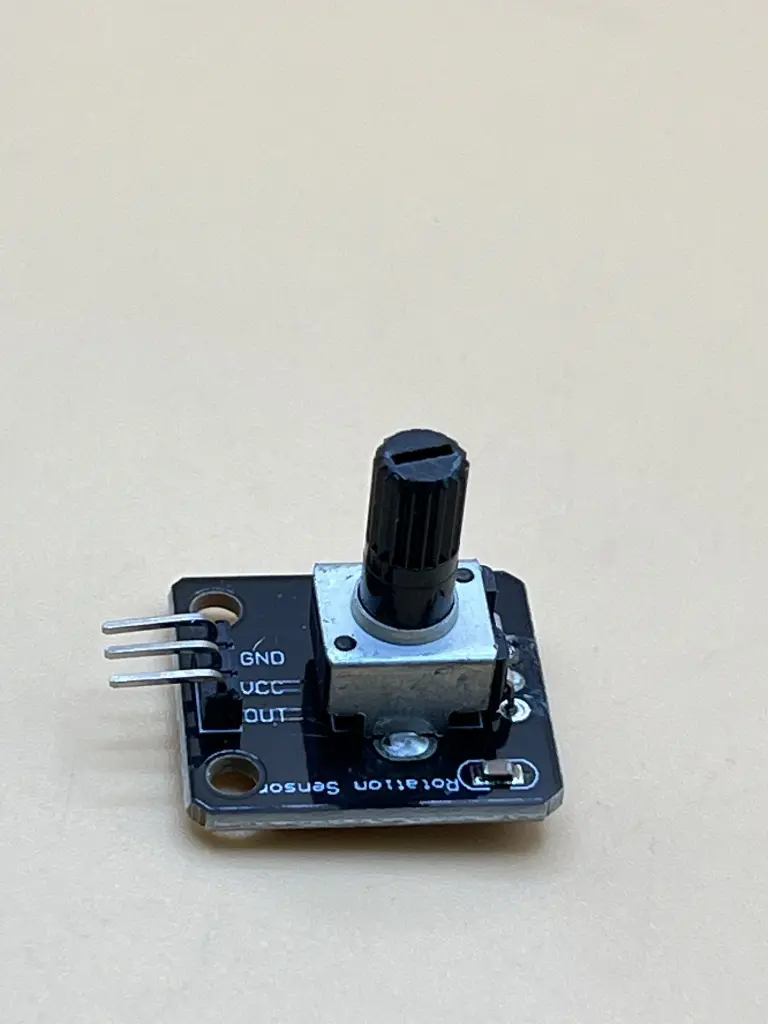

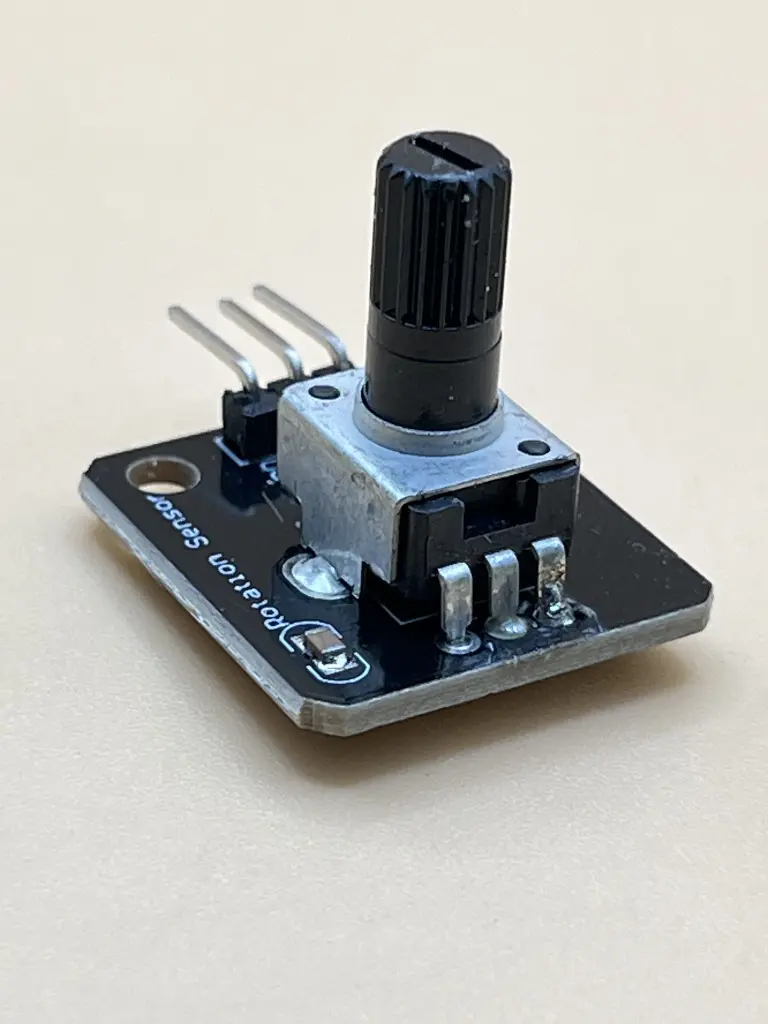

The potentiometer module is an analog rotational input device that allows users to control voltage output by turning a knob. Unlike a rotary encoder, this module provides a continuous analog signal corresponding to the knob’s position within its mechanical range
Key Features
- Analog Output: Provides a variable voltage from 0V to VCC
- Position-Based Control: Outputs absolute position (not incremental steps)
- ~280° Rotation Range: Limited mechanical rotation with end stops
- 3.3V–5V Compatible: Works with Arduino, Raspberry Pi, and more
- Simple Interface: Easy to connect using analog input pins
-
Beginner-Friendly: Great for learning analog sensor principles
Specification
- Operating Voltage: 3.3V – 5V
- Output Type: Analog voltage (0V to VCC)
- Mechanical Rotation Angle: ~280° (not continuous)
-
Interface Pins:
- VCC: Power supply
- GND: Ground
- OUT: Analog signal output
-
Dimensions: ~22 × 31 mm
Application
- LED Brightness Control
- Volume Adjustment
- Motor Speed Control
- Analog Input Learning Projects
-
User-Controlled Parameter Tuning
