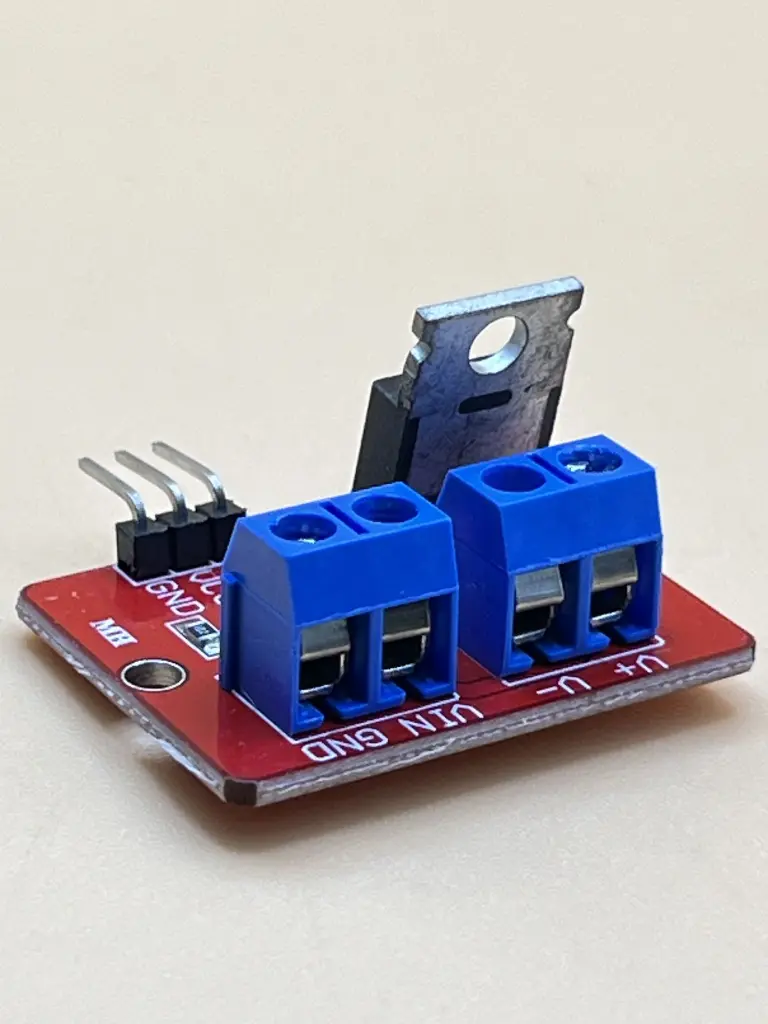

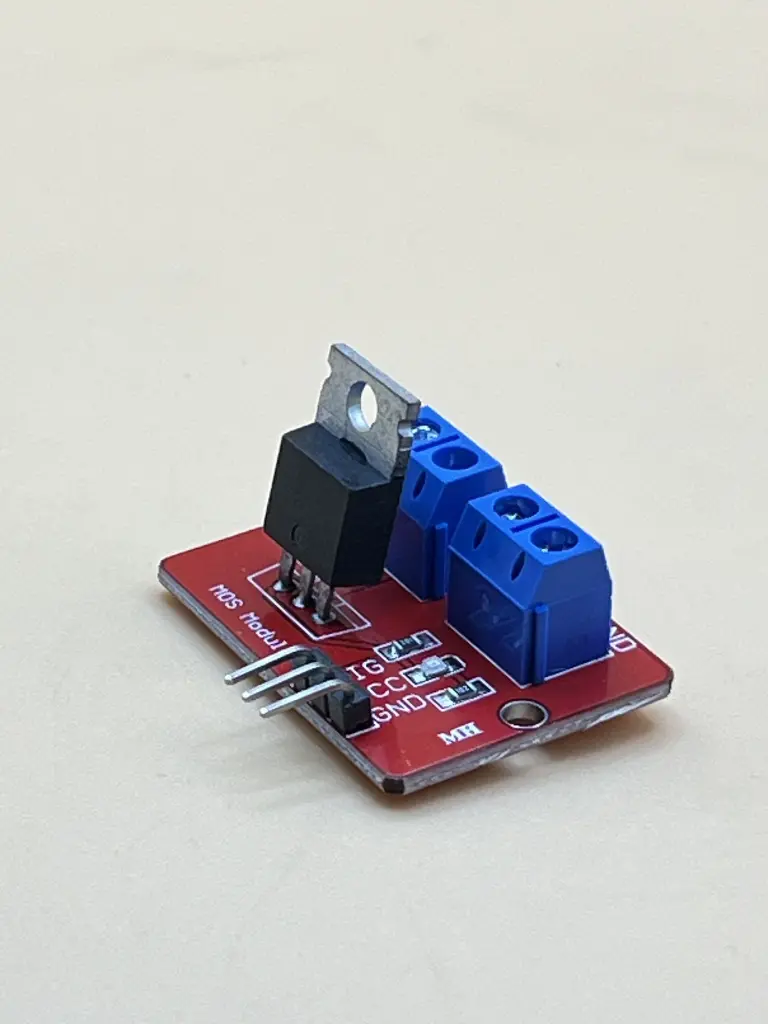

IRF520 module
3 sold in last 24 hours
This module features an N-channel MOSFET transistor, designed to control devices that require more current than a microcontroller or control system can provide. The IRF520 MOSFET used in the module supports a supply voltage range of 0 to 24V and can handle current loads up to 5A. However, if the current exceeds 1A, a heatsink is recommended to prevent overheating.
Features
- Input Voltage:Supports 3.3V and 5V control signals
- Output Load Voltage Range:0–24V, suitable for powering a wide range of DC loads with different voltage needs, including LED strips, DC motors, micro water pumps, and solenoid valves
- Compatibility:Works seamlessly with Arduino, Raspberry Pi, ESP32, STM32, and other microcontroller platforms
- This module uses gate voltage control to switch the connection between the drain and source, allowing you to manage load current and drive various DC devices.
- The module of the supply voltage: from 3.3 V to 5 V
- Supported voltage: from 0 V to 24 V
- Current limit: 5 A (above 1 A heatsink is required)
- LED indicator
- Dimensions: ‎3.62 x 2.68 x 1.46 inches
- Operating Temperature: -40 - +85
- Automation Projects: Frequently used in smart home projects, industrial control systems, and IoT applications for switching various devices.
- DC Motor Control: Used to turn motors on and off or adjust speed using PWM (Pulse Width Modulation) and Ideal for robotics and automation systems.
- Remote Device Control: Works with microcontrollers (Arduino, Raspberry Pi, ESP32, STM32, etc.) to remotely control devices or loads.
No Specifications
