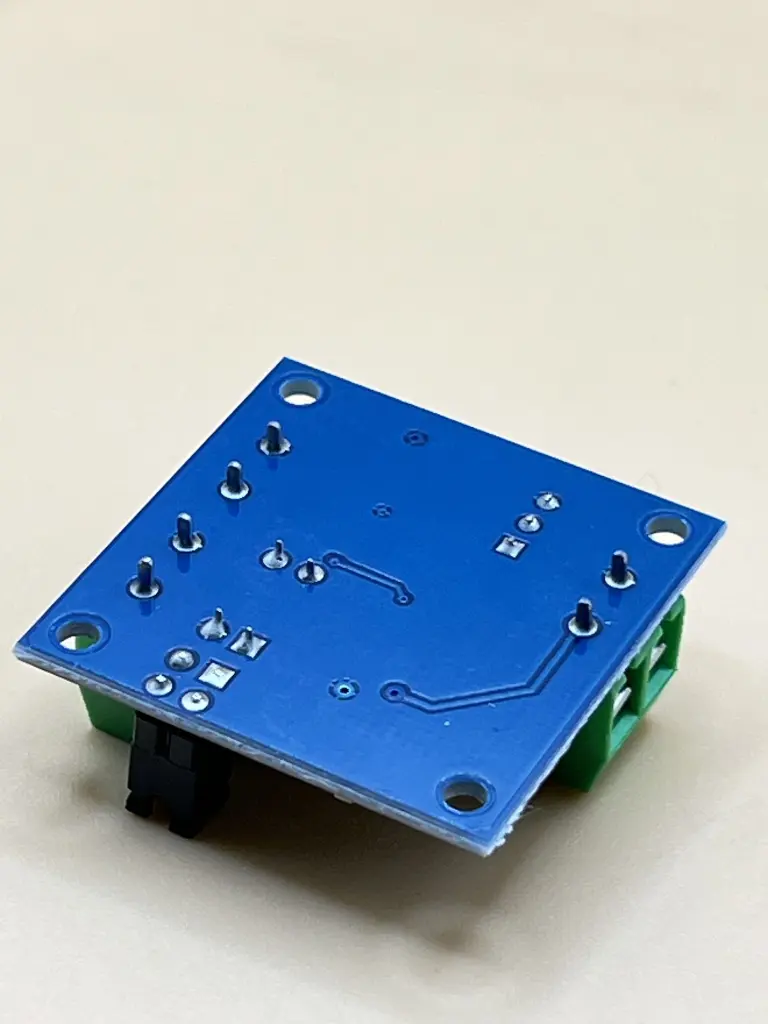

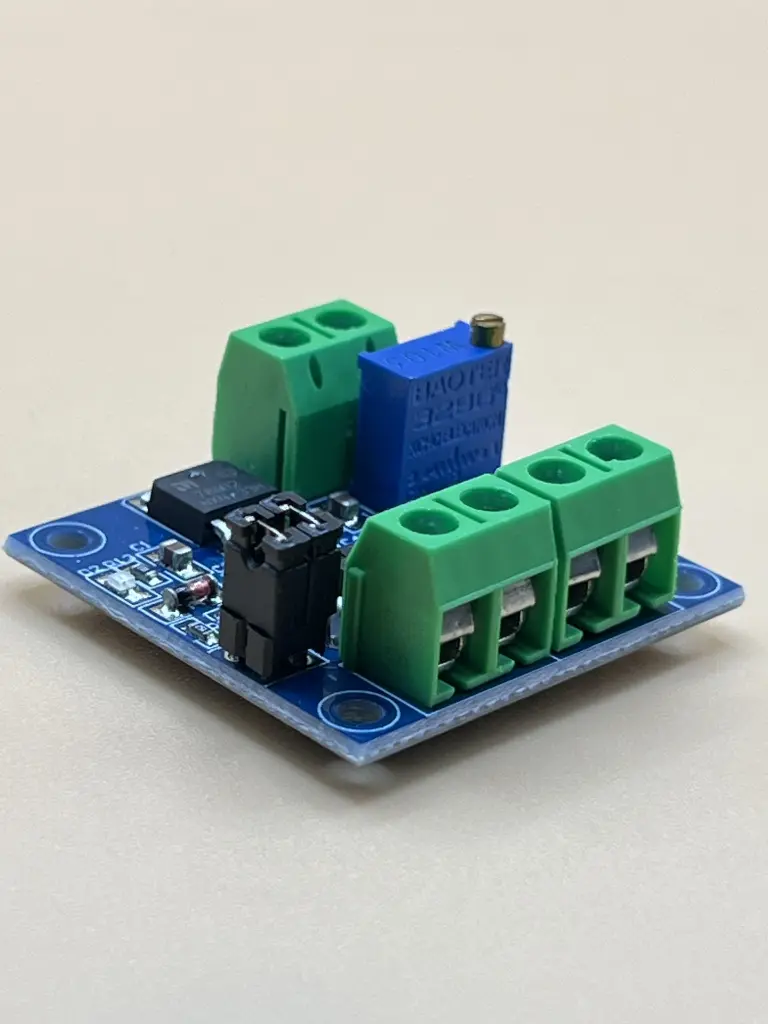

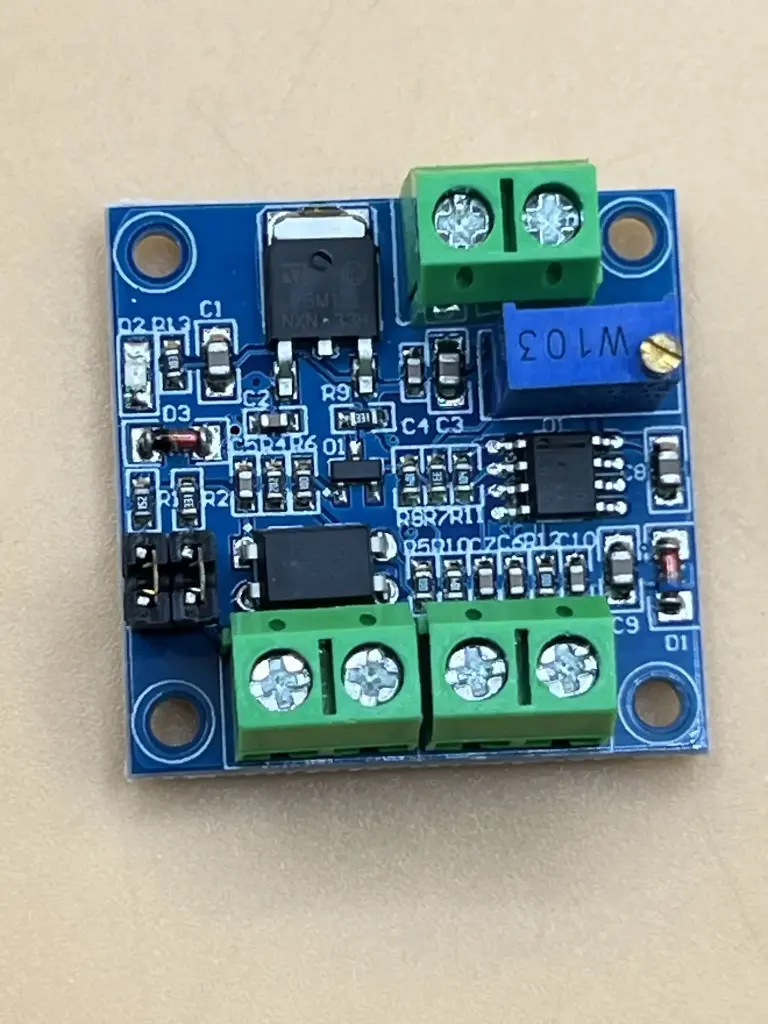

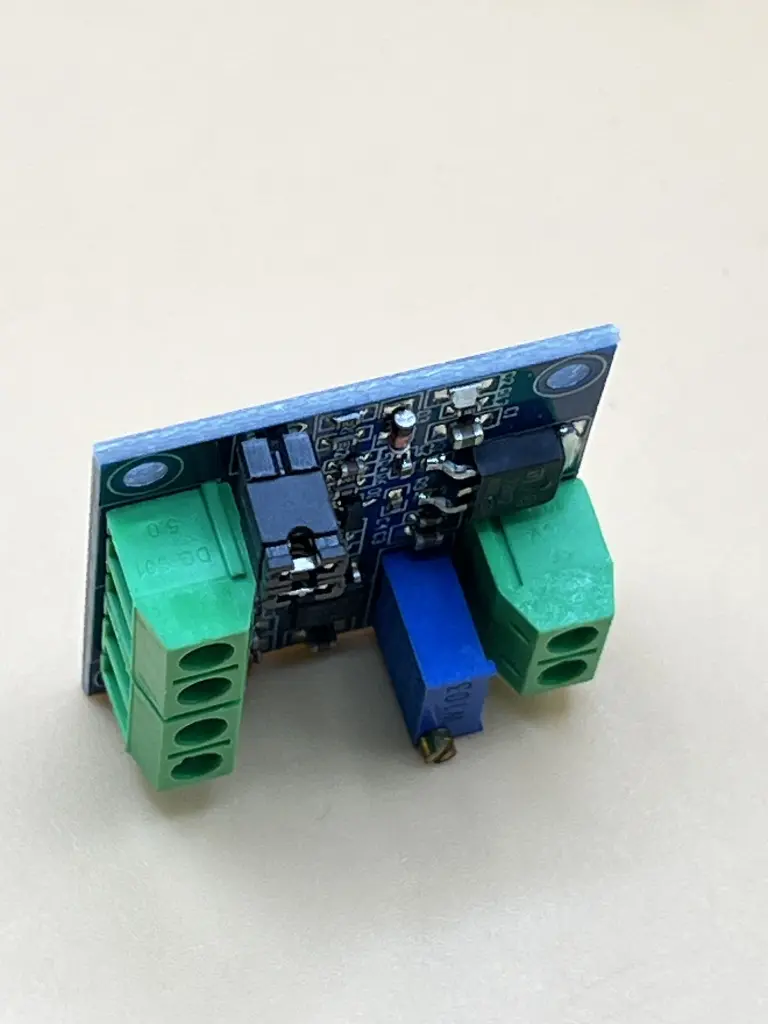

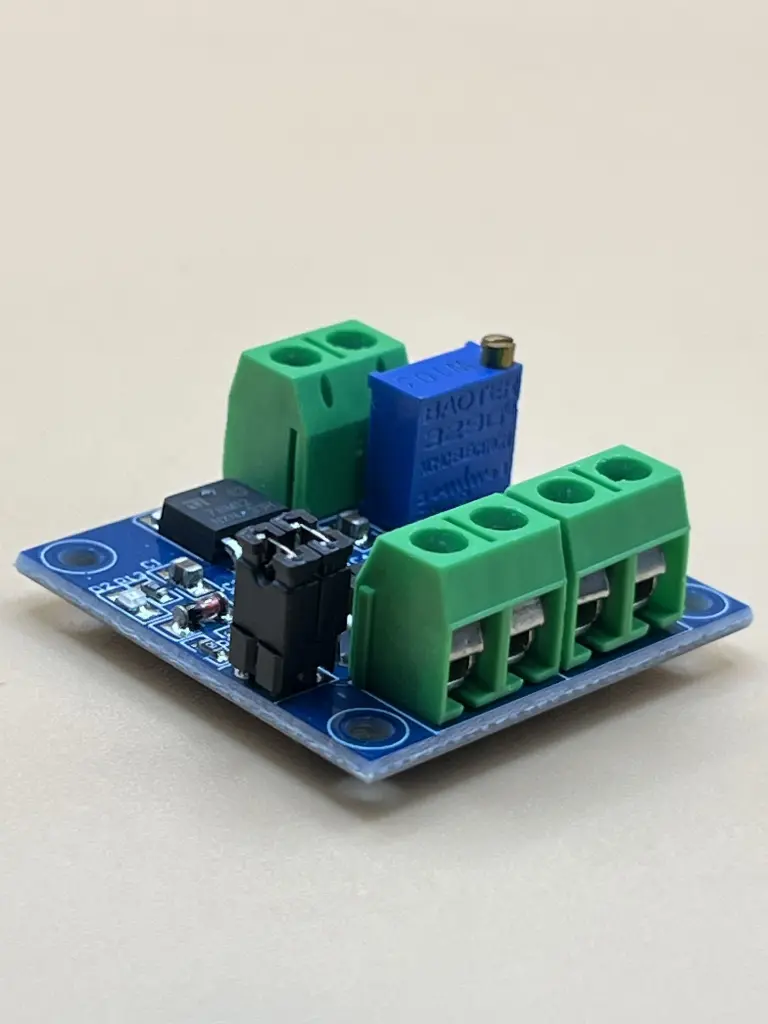

PWM to Voltage module
6 sold in last 24 hours
The PWM to Voltage module is a compact and efficient module designed to convert PWM digital signals into corresponding 0–10V analog voltage outputs.
Features:
- Converts PWM digital signals to 0–10V analog output
- Output voltage is proportional to PWM duty cycle
- Adjustable fine-tuning via onboard potentiometer
- Embedded MCU technology for accurate signal processing
- Selectable PWM signal input levels (5V or 24V) via jumper (short cap)
Specifications:
- Working Voltage:DC 12V – 30V
- Power Requirement:> 100mA
- PWM Receiver Frequency Range:1kHz – 3kHz
- Output Voltage Range:0V – 10V (regulated by PWM duty cycle)
- Output Error:±5%
- Input Signal Levels:
- 5V peak (short cap on ‘5V’): For MCUs or 5V signal sources
- 12V – 24V peak (short cap on ‘24V’): For PLCs or industrial signal sources
Applications:
The module can be used as signal interface switching for PLC or other industrial control boards.
