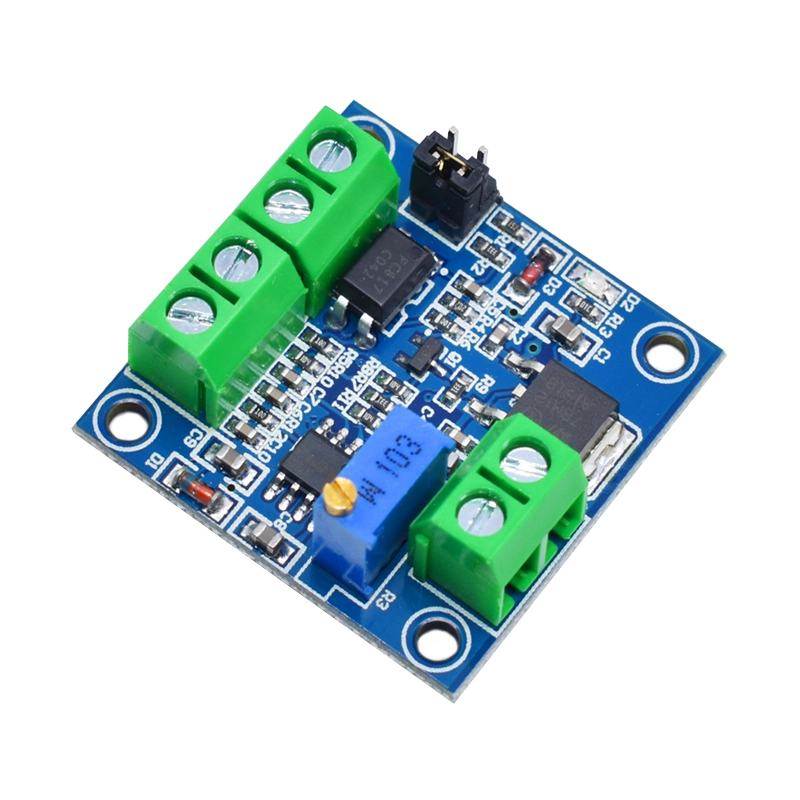

Voltage to PWM module
4 sold in last 24 hours
The Voltage to PWM module is a compact and efficient module designed to convert analog voltage signals (0–5V or 0–10V) into a PWM signal with a 0–100% duty cycle.
Features:
- Utilizes embedded single-chip microcontroller technology for stable performance
- Easy to operate, with fine-tuning available via an onboard potentiometer
- Supports selectable input voltage ranges (0–5V / 0–10V)via jumper cap for flexibility
- Compact and lightweight design, making it easy to carry and integrate into various applications
Specifications:
- Operating Voltage:DC 7V – 12V
- Conversion Range:0–5V / 0–10V input voltage to 0%–100% PWM output
- Output PWM Amplitude:5V (constant)
- PWM Frequency:~50 kHz (standard)
- Accuracy (Allowable Error):1% – 3%
- Module Dimensions:32mm × 34mm
- The module is used to control motors or other areas where PWM is required.
