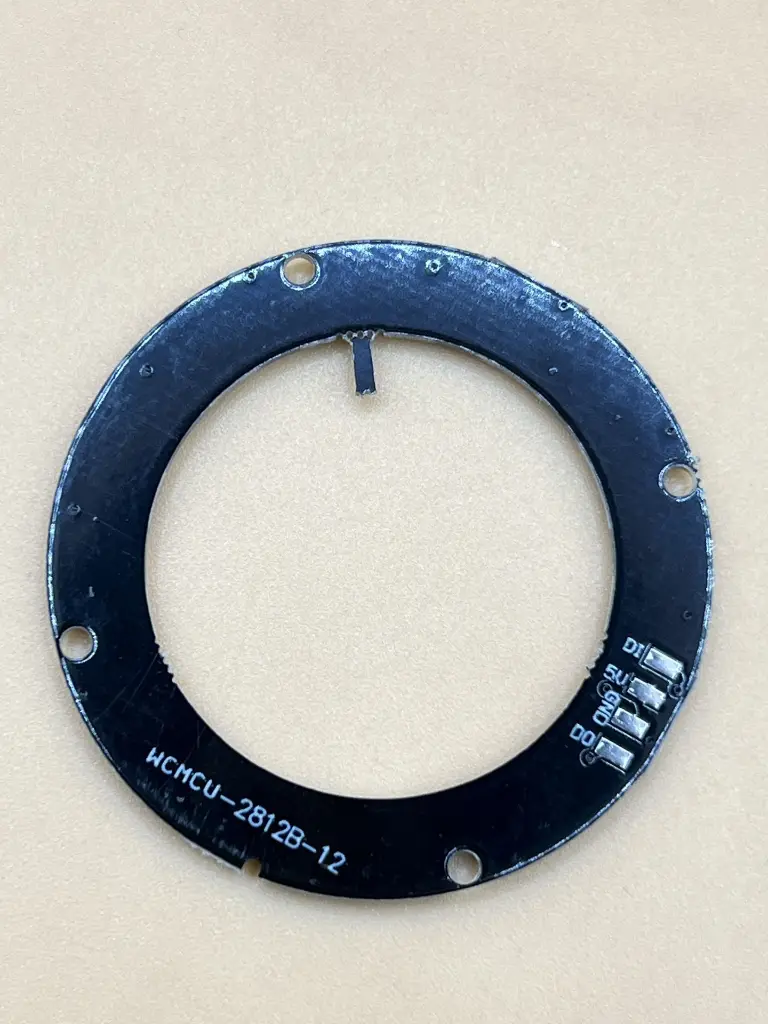

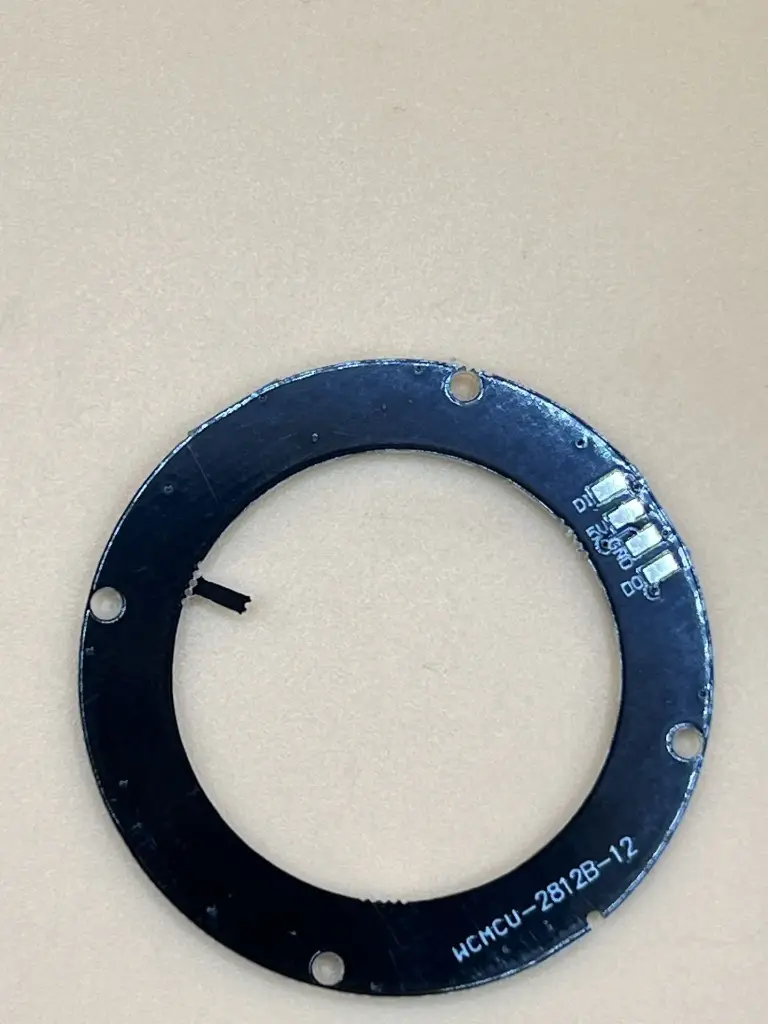

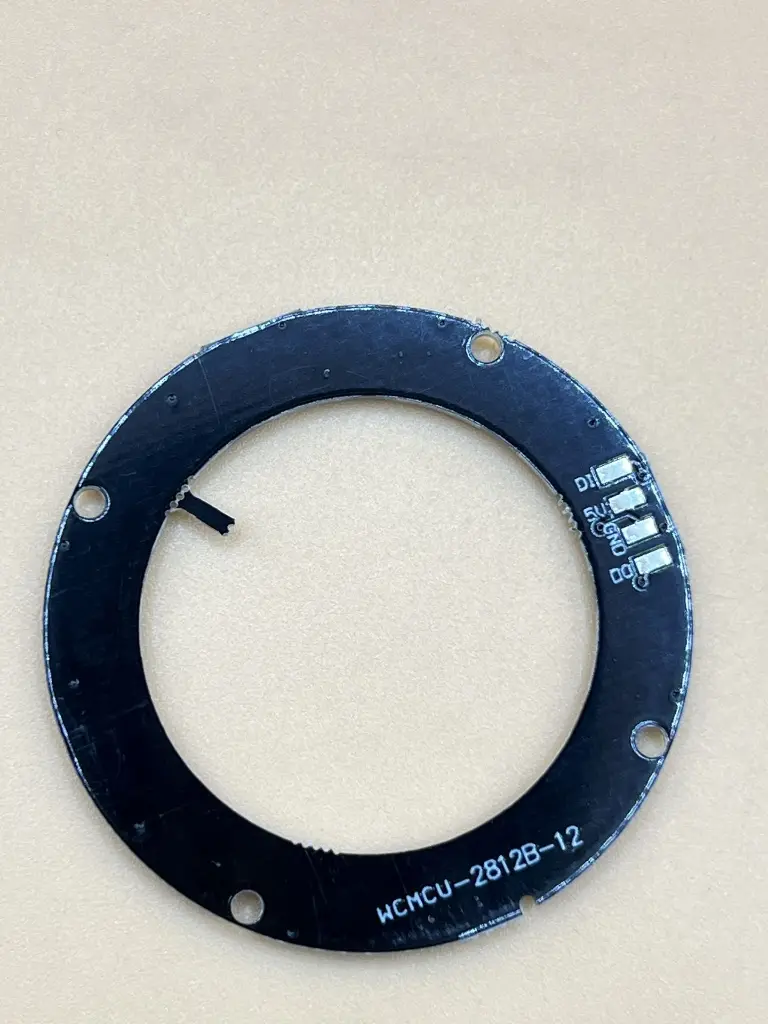

WS2812 5050 12 bit round RGB LED Magic color module
14 sold in last 24 hours
This 12-bit WS2812 5050 round RGB LED module is a vibrant light display, that’s great for decorative and interactive lighting projects. It delivers full-colour control through a single data line, with individually addressable LEDs.
Key Features:
- Supports 256 brightness levels per colour
- Individually addressable for dynamic colour effects
- Operates on a single data line
- When the refresh rate is 30 frames / second, the number of cascades is not less than 1024 points
- Chainable with other modules (i.e supports cascading)
- LED has the advantages of low voltage driving, environmental protection and energy conservation, high brightness, large scattering angle, good consistency, ultra-low power, and ultra-long service life.
- Compatible with Arduino, ESP32, Raspberry Pi, etc.
- Built-in full-colour driving chip.
- LED Count: 12
- LED Type: WS2812 5050
- Operating Voltage: 4-7V DC
- Communication: One-wire serial (WS2812 protocol)
- Scanning frequency: >400Hz/s
- Outer Diameter: Approx. 50mm
- Inner Diameter: Appox. 35mm
- Height: 3mm
- Weight: 5g
- Custom RGB display and signage
- Wearable tech
- Custom clocks and dials
- Art installations and cosplay
- Decorative lighting and ambience effects
