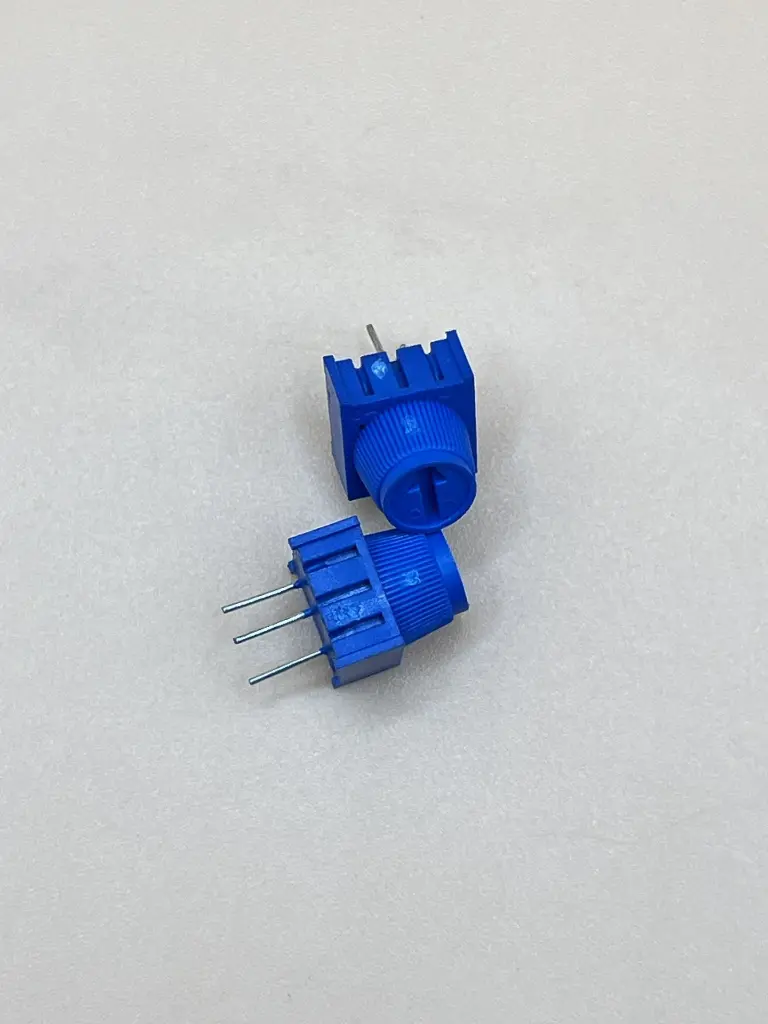

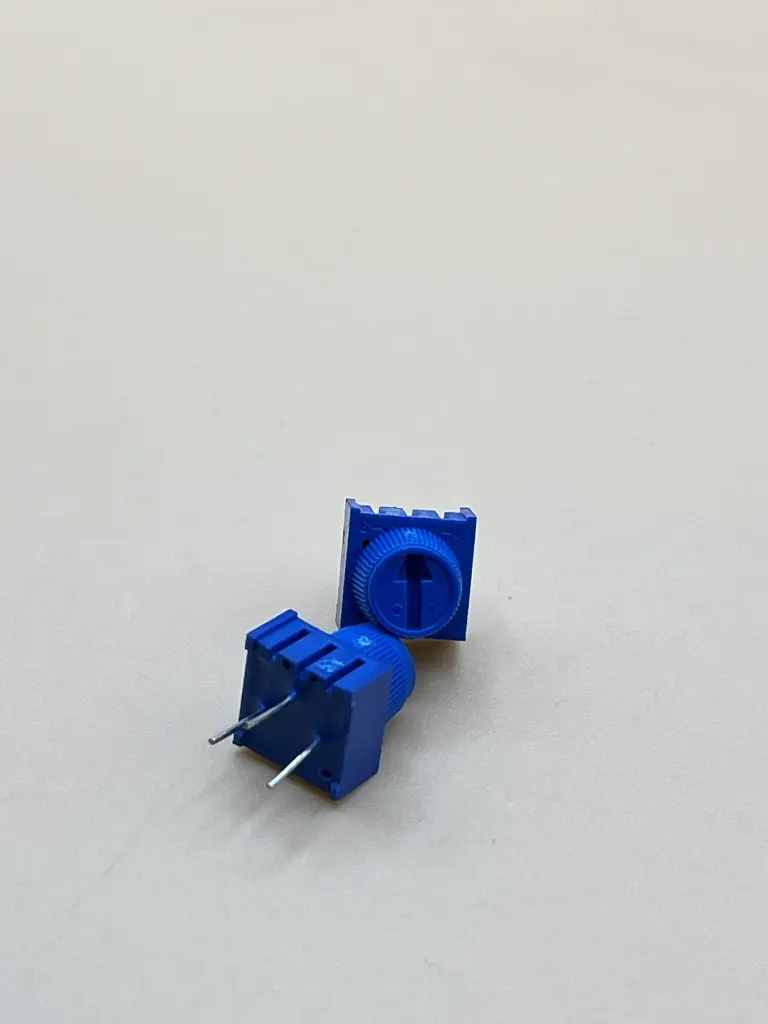

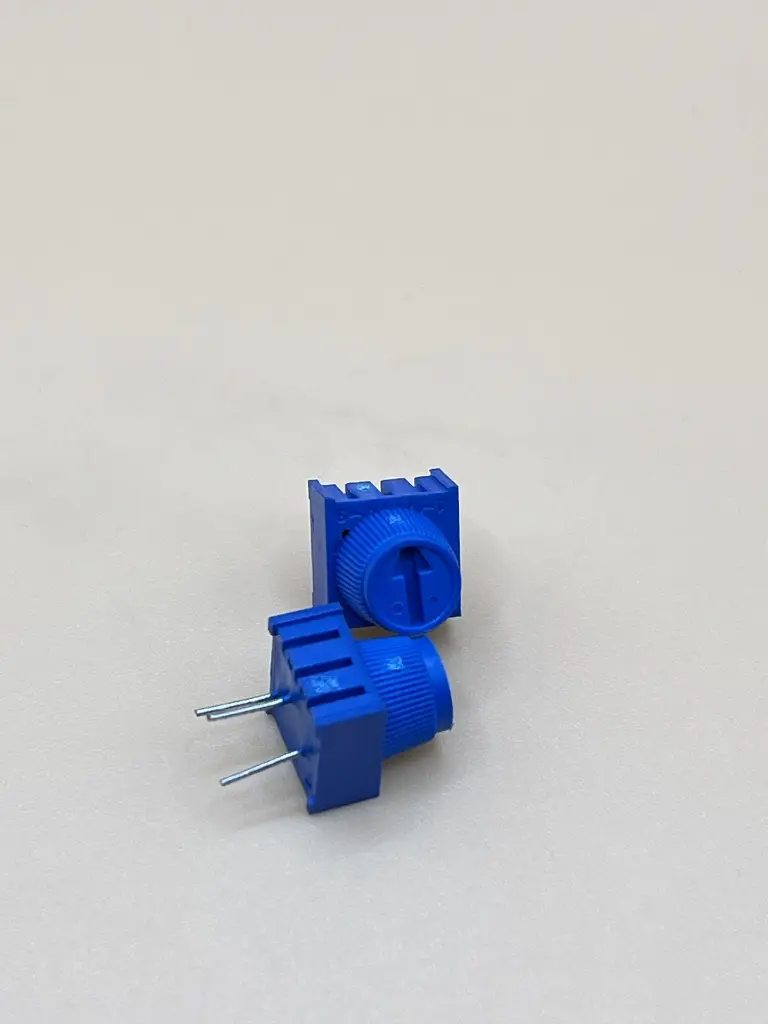

3386P-1-102 1K Potentiometer

The 3386P-1-102 1K Potentiometer is a precision trimmer resistor with a resistance value of 1K ohms, ideal for fine-tuning electronic circuit parameters such as voltage, current, and signal levels. Designed in a DIP (Dual In-line Package) form, it easily integrates into breadboards or PCBs.

This adjustable resistor includes a rotary knob for intuitive and precise manual adjustments, making it suitable for both development prototypes and long-term embedded applications. With robust construction and stable performance, it is a staple in both hobbyist and industrial electronics toolkits.

Key Features:

• 1KΩ Resistance (Code: 102) – Suitable for a wide range of analog circuit adjustments

• DIP Package – Easy to solder or insert into standard breadboards and PCBs

• Rotary Knob – Convenient manual control for tuning and calibration

• Compact & Lightweight – Fits in space-constrained projects

• Durable Design – Ensures long-term reliability in repeated adjustments

• High Precision – Ideal for voltage dividers, signal tuning, or sensor calibration

Technical Specifications:

• Model: 3386P-1-102

• Resistance: 1KΩ (102)

• Type: Single-turn, adjustable potentiometer

• Mounting Type: Through-hole (DIP)

• Adjustment: Top knob or flat-head screwdriver slot

• Tolerance: ±10% (typical)

• Power Rating: ~0.5W (varies by environment)

• Operating Temperature: -55°C to +125°C

• Size: ~10mm x 10mm x 5mm

Applications:

• Analog signal tuning

• Op-amp offset adjustment

• Voltage divider setups

• Sensor calibration in Arduino/STM projects

• Audio equipment tone/balance adjustment

• Prototyping and educational electronics
