    Mini L298N 2 way DC motor driver board

    https://gh.hub360.cc/web/image/product.template/16905/image_1920?unique=9b5eb2b

    GH¢ 11.00 11.0 GHS GH¢ 11.00

    ₦ 1,000.00

    Not Available For Sale

    (GH¢ 0.00 / Units)

    This combination does not exist.

    Contact Us

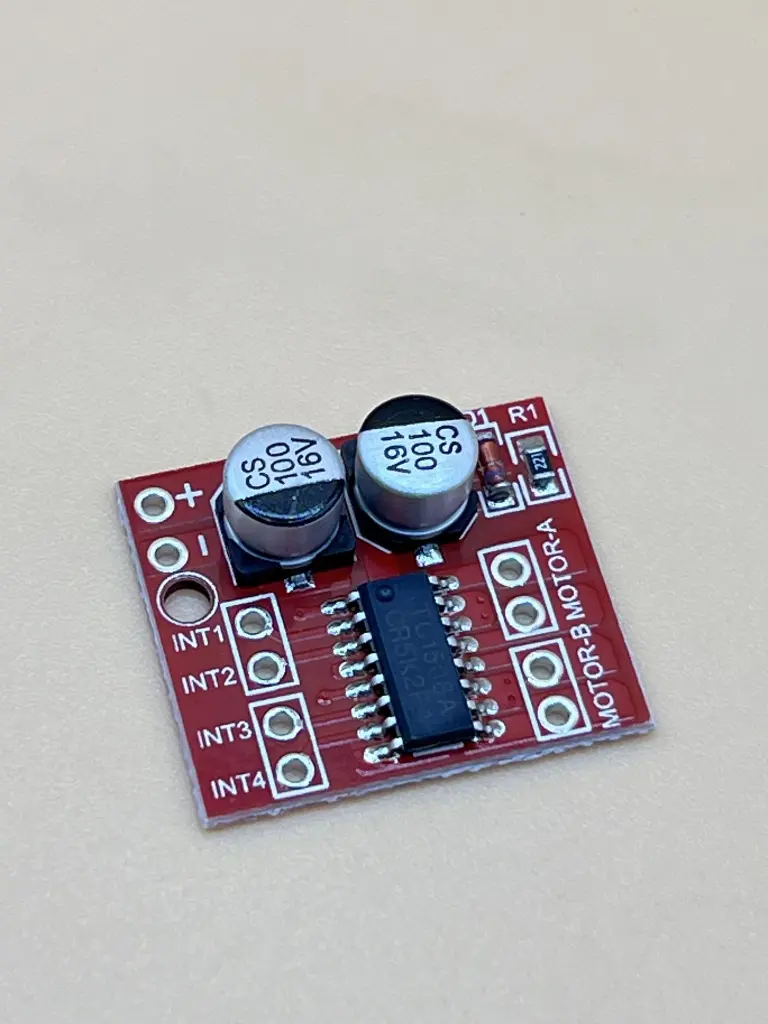

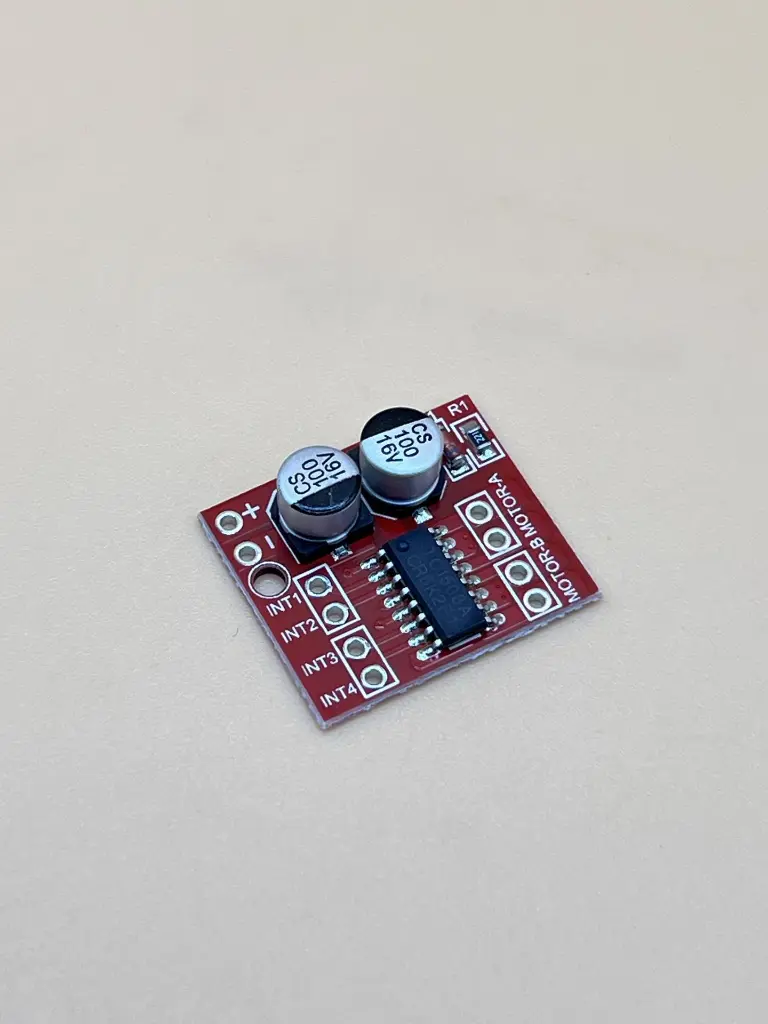

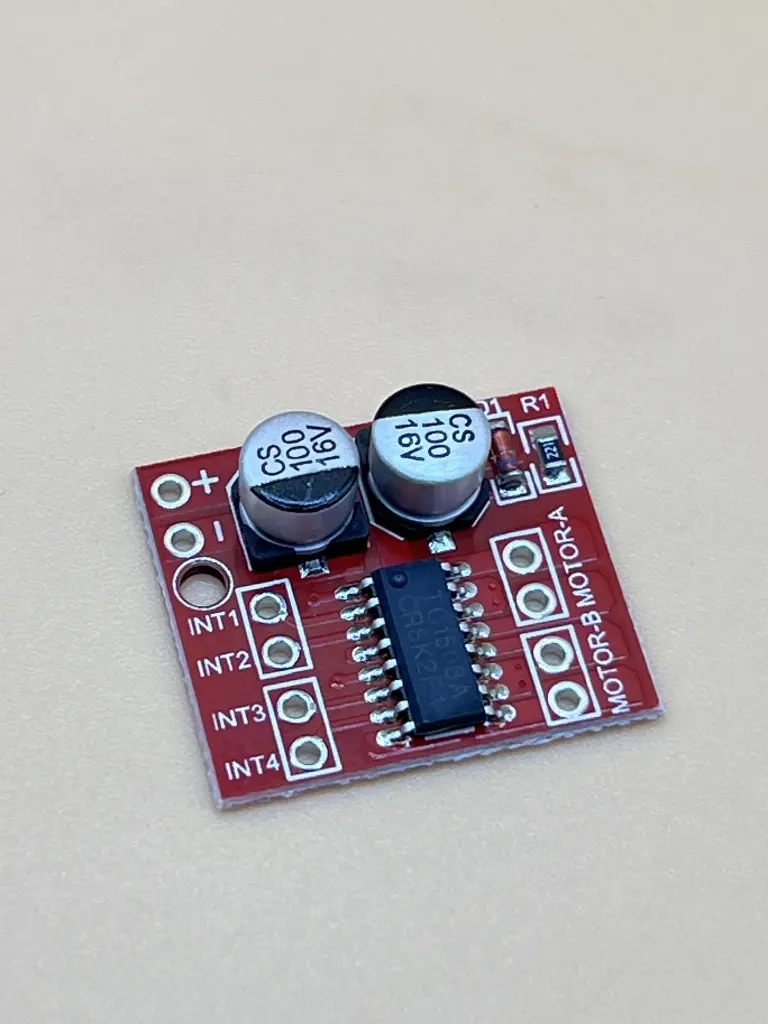

    The Mini L298N 2-Way DC Motor Driver Board is a compact and efficient motor driver module based on a dual H-bridge circuit. It is ideal for driving two DC motors or one 4-wire stepper motor in smart cars, robots, and DIY electronics projects. With a wide voltage range of 2V to 10V, this board supports PWM speed control and direction reversal, offering flexibility for motor-based applications.

    Key Features:

    • Dual H-bridge motor driver for 2 DC motors or 1 stepper motor

    • Operates from 2V to 10V supply voltage

    • 1.5A continuous output current, up to 2.5A peak

    • Supports PWM speed control and bidirectional rotation

    • Low power consumption — ideal for battery-powered devices

    • Thermal protection with auto-recovery

    • Compact design with mounting holes for easy integration

    • Compatible with Arduino, Raspberry Pi, ESP32, and other microcontrollers

    Specifications:

    • Module Supply Voltage: 2V – 10V

    • Signal Input Voltage: 1.8V – 7V

    • Continuous Current per Channel: 1.5A

    • Peak Current: 2.5A

    • Standby Current: < 0.1µA

    • Protection: Thermal auto-recovery

    • Dimensions: 24.7mm x 21mm x 7mm

    • Mounting Hole Diameter: 2mm

    • MOSFET-Based Switching: Low on-resistance

    Applications:

    • Arduino smart car projects

    • Two-wheel robots and tank treads

    • Stepper motor control

    • Toy cars and RC vehicles

    • Low-power automation systems

    • PWM motor control for prototyping
