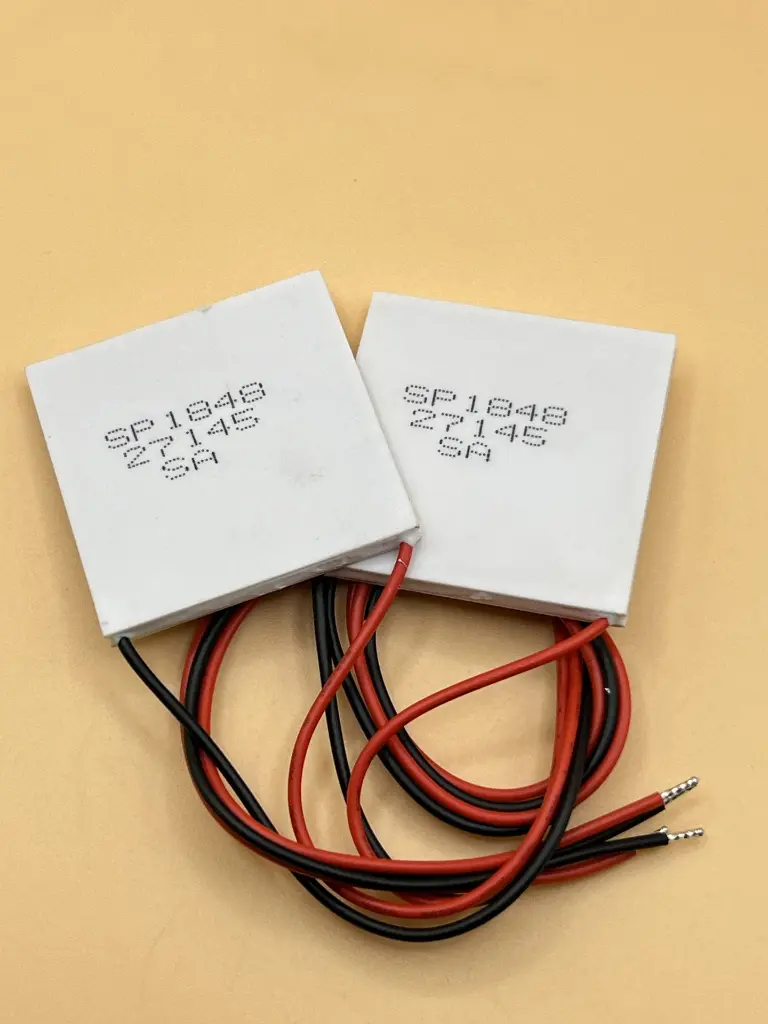

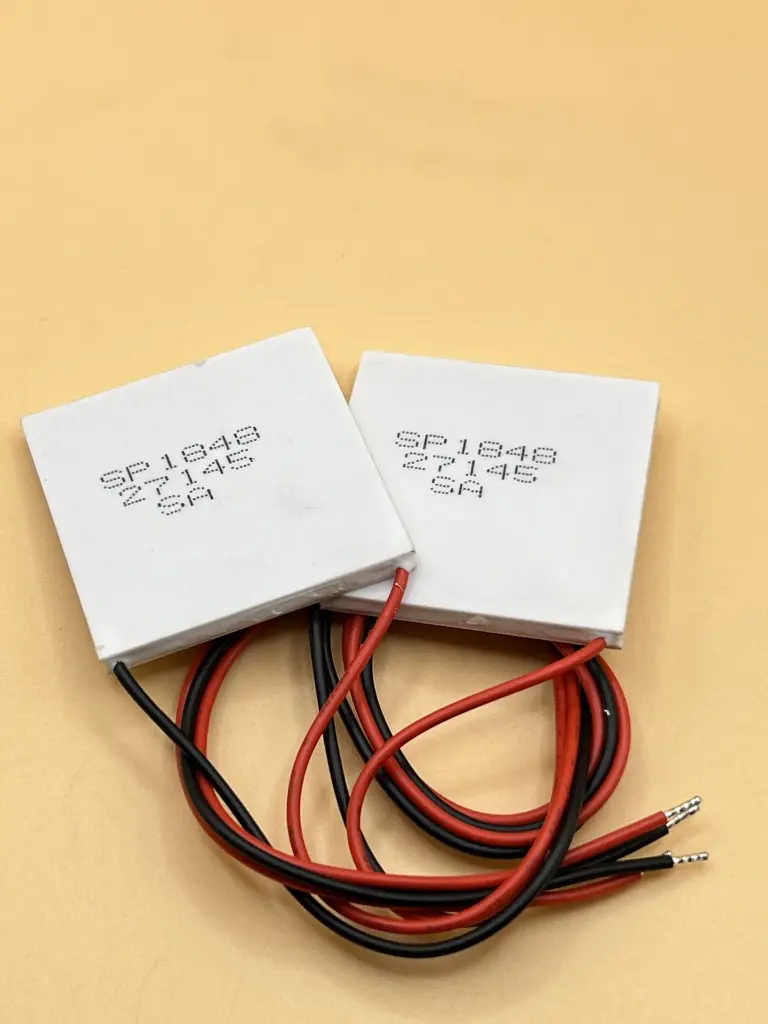

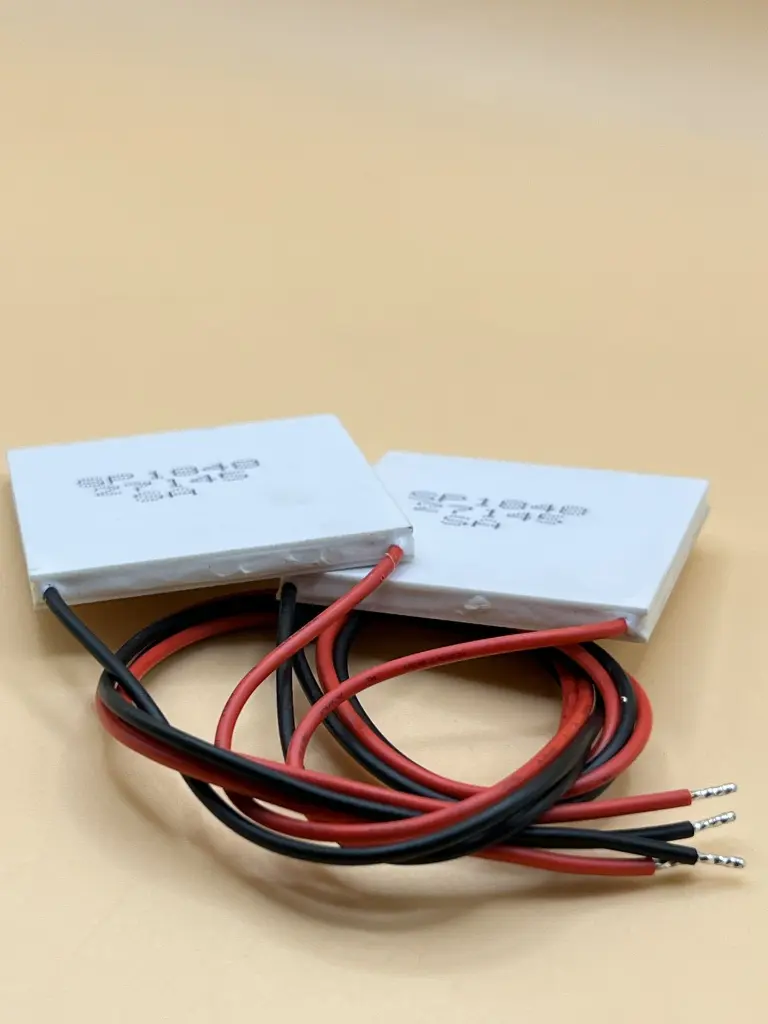

    The SP1848-27145 Thermoelectric Generator Module is a high-efficiency power generation device based on the Seebeck effect. Designed to convert heat into electricity, this compact module provides a reliable source of DC voltage in temperature differentials.

    Key Features:

    • Heat-to-Electricity Conversion – Generates DC voltage from temperature differences

    • High Operating Temperature – Up to 120°C for maximum thermal efficiency

    • Ready to Use – Includes long 350mm leads for easy integration

    • Sealed Design – Moisture-resistant and environmentally durable

    • Compatible with Booster Boards – Easily scales up voltage for 5V USB output

    • Lightweight & Compact – Only 30g, ideal for portable and embedded systems

    Technical Specifications:

    • Model: SP1848-27145

    • Open Circuit Voltage: 4.8V

    • Operating Temperature Range: 0°C to 120°C

    • Maximum Temperature: 120°C

    • Module Dimensions: 40mm x 40mm x 3.6mm

    • Weight: 30g

    • Wire Length: 350mm

    • Application Type: Power generation only (not cooling)

    • Protection: Moisture-sealed with NM static protection

    Applications:

    • Off-grid power generation

    • Waste heat recovery

    • Emergency phone charging (with booster board)

    • Educational experiments

    • Eco-friendly energy harvesting

    • DIY thermoelectric projects
