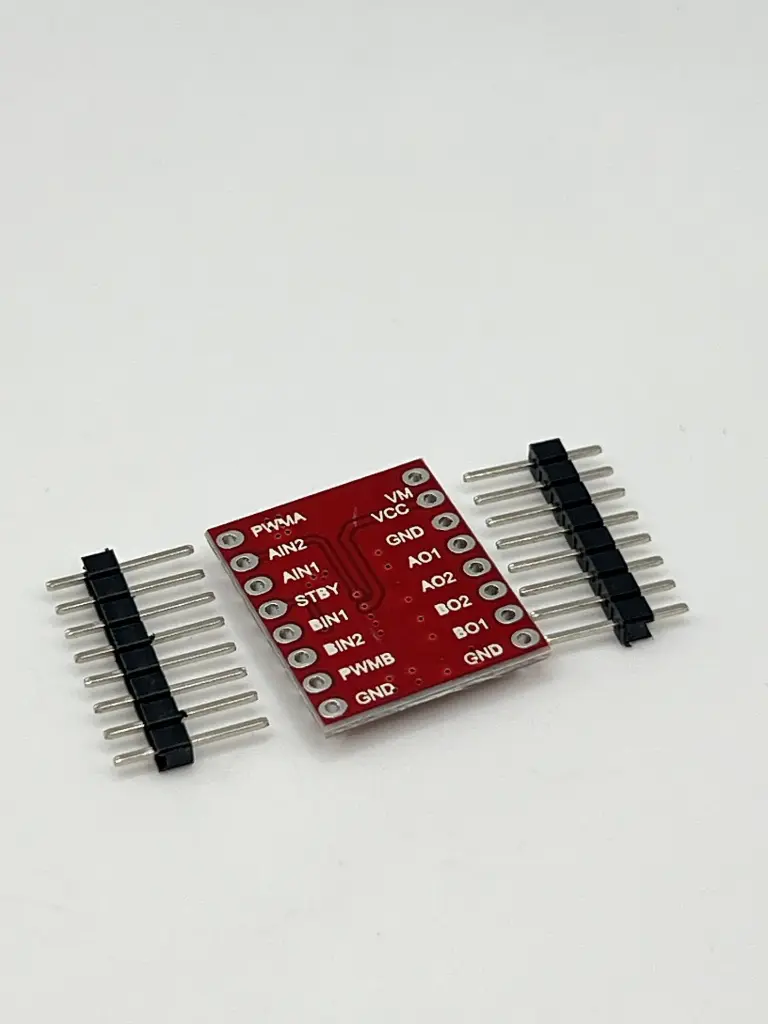

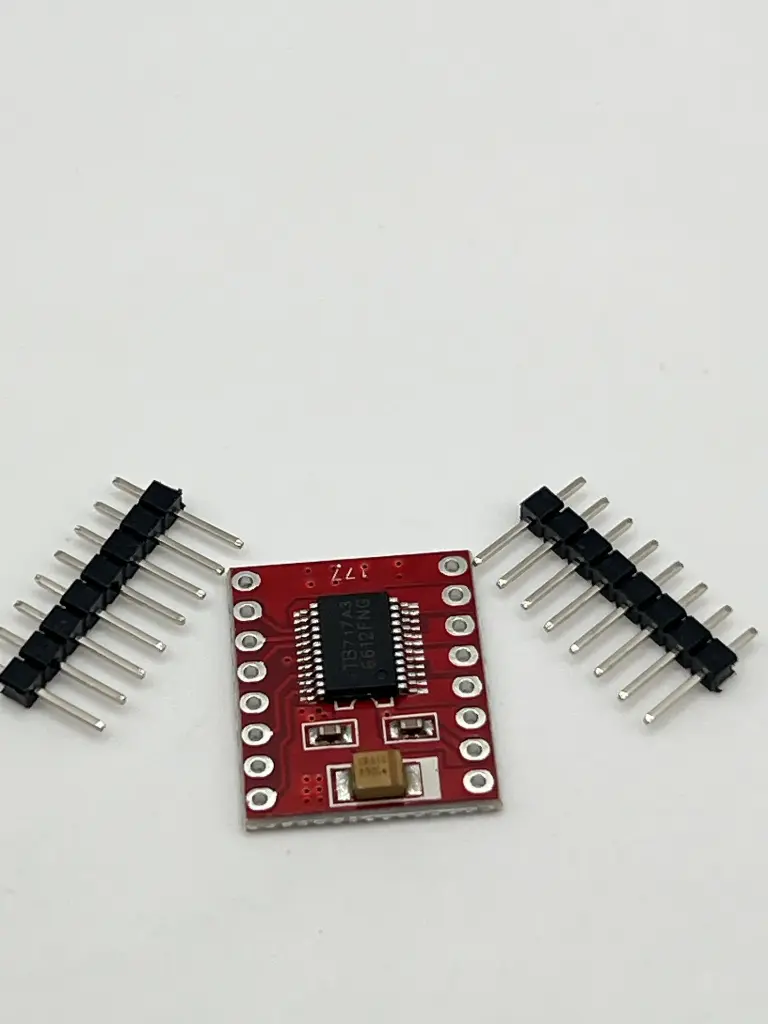

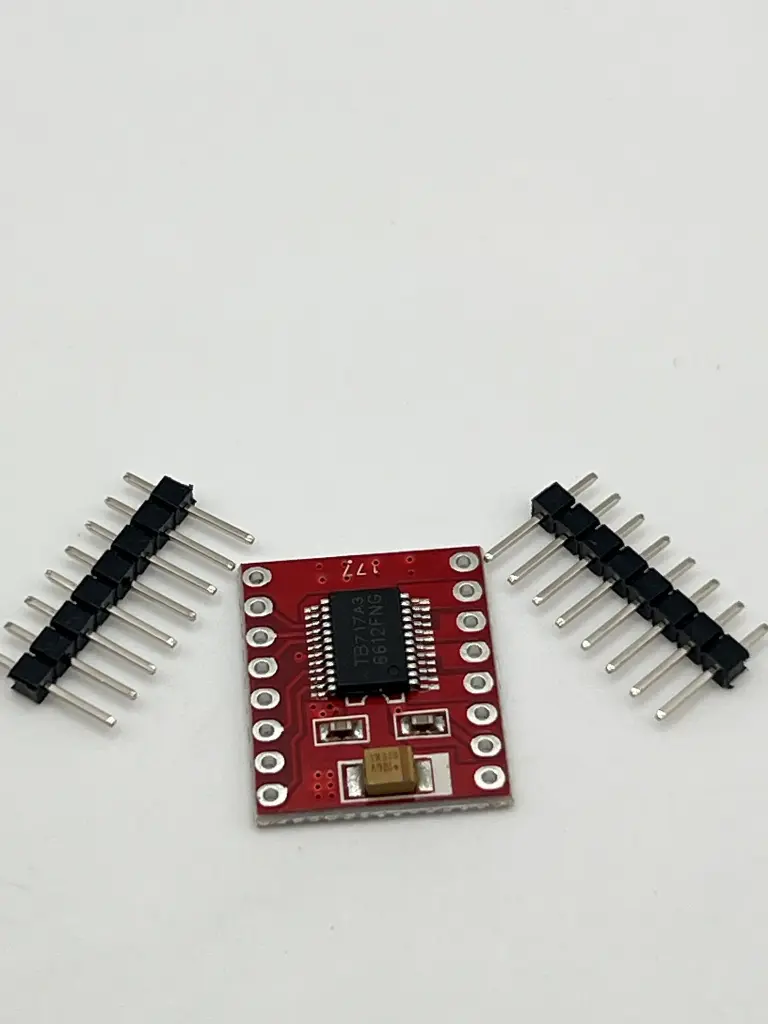

TB6612FNG motor driver board
The TB6612FNG Motor Driver Board is a compact and efficient dual-channel H-bridge driver capable of powering two DC motors independently. Delivering up to 1.2A continuous current per channel (with 3.2A peak), it is perfect for low- to mid-power robotics, automation systems, and embedded motor applications.
Each motor can be driven in four modes—clockwise (CW), counterclockwise (CCW), short brake, and stop via two digital inputs per channel (IN1/IN2). Motor speed control is easily achieved using a PWM signal up to 100kHz, offering smooth and precise operation. The board also supports standby mode, significantly reducing power consumption when not in use.
Key Features:
-
Dual Independent Motor Control: Drive two motors with separate direction and speed control
-
PWM Speed Control: Supports up to 100kHz PWM for high-resolution motor speed regulation
-
Safety Built-In: Integrated over-temperature and under-voltage protection
-
Logic Flexibility: Works with 3.3V and 5V logic systems
-
Breadboard-Friendly: Easy to integrate into breadboards or custom PCBs
-
Power-Saving: Automatic standby mode when idle
Specifications:
-
Motor Power Supply (VM): Up to 15V DC
-
Logic Supply Voltage (VCC): 2.7V – 5.5V
-
Output Current:
-
Continuous: 1.2A per channel
-
Peak: 3.2A per channel
-
-
Control Inputs per Channel: IN1, IN2
-
PWM Frequency Support: Up to 100kHz
-
Control Modes: CW, CCW, Brake, Stop
-
Efficiency Mode: Standby for low-power idle state
-
Protection Features:
-
Thermal shutdown
-
Low voltage lockout
-
-
Connectivity: All pins broken out to 0.1" headers
-
Size: Compact form factor for space-sensitive projects
Applications:
-
Robotics: Drive wheels, arms, or mobile platforms in autonomous or remote-controlled robots
-
DIY Projects: Great for Arduino, Raspberry Pi, ESP32, and other dev board setups
-
Automation Systems: Use in motorized mechanisms, conveyor belts, or camera sliders
-
Educational Kits: Perfect for teaching motor control principles and embedded systems
