Description

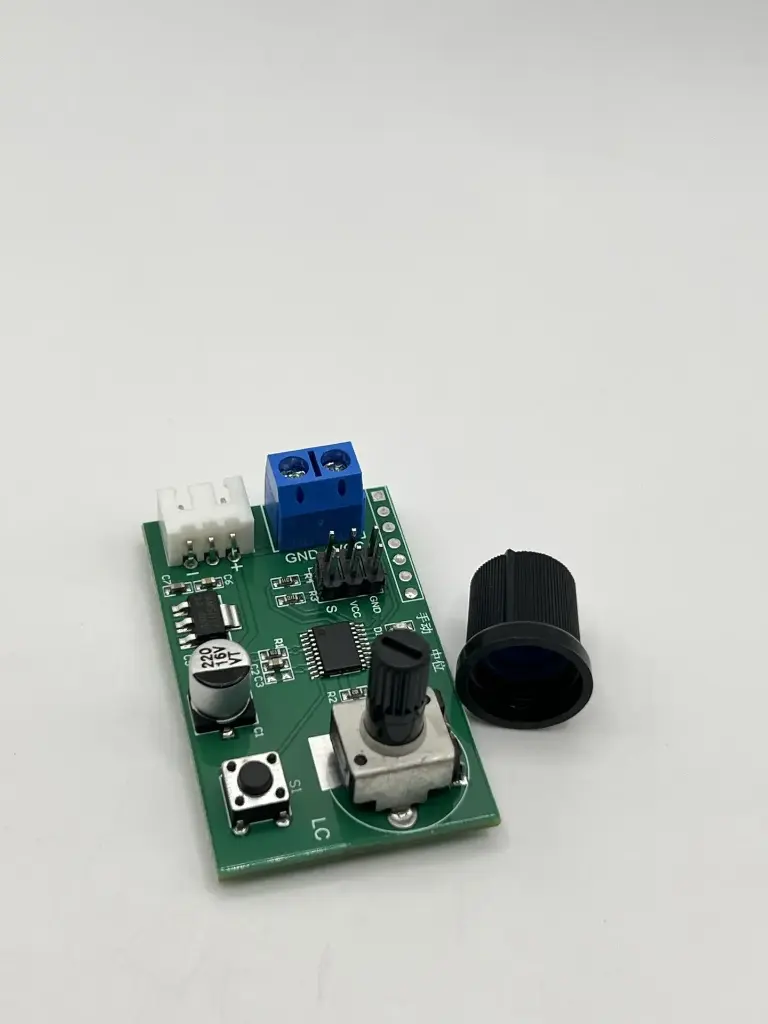

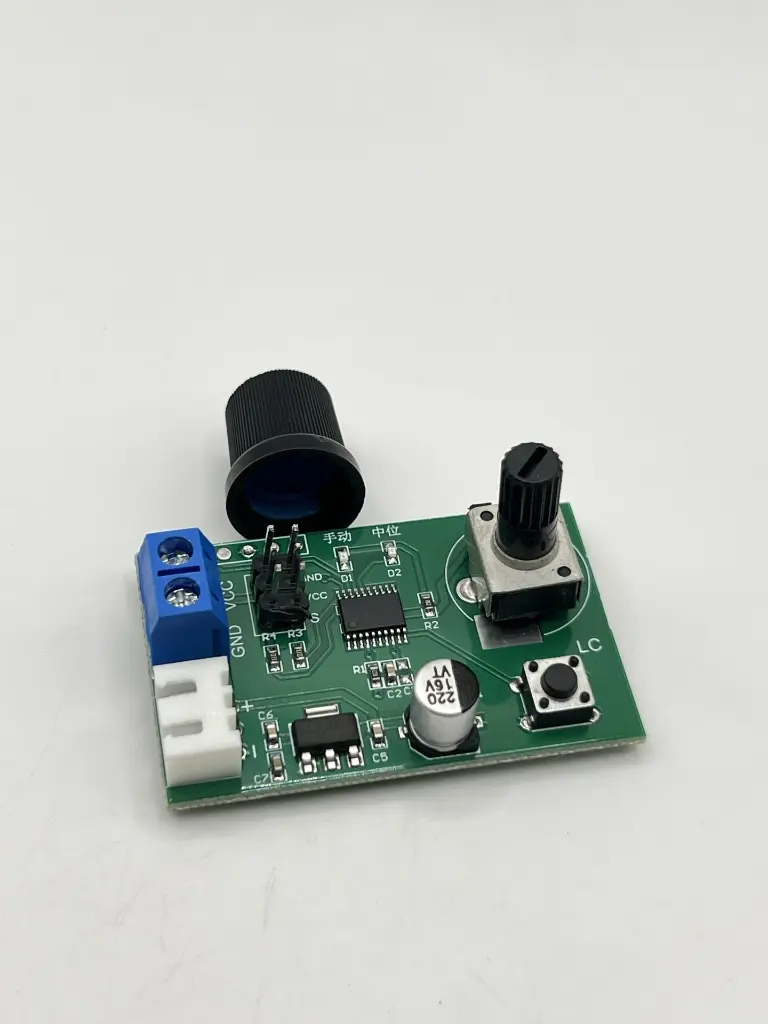

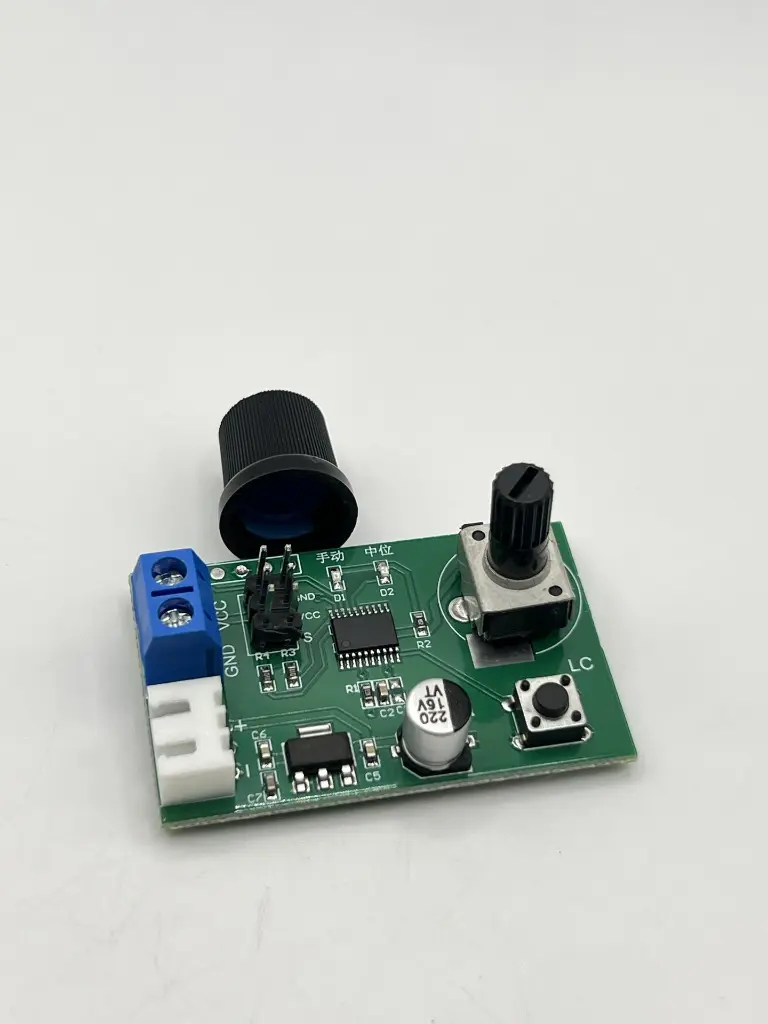

This servo control module is a user-friendly, plug-and-play device designed for operating servo motors without complex programming. It offers three control modes, including manual knob-based adjustment and a centering function, making it well suited for servo motor testing, tuning, and educational applications. Built around an STM8S103 microcontroller, it generates precise PWM signals for accurate servo positioning.
Key Features
- Supports manual (knob-based) control for hands-on operation
- UART (serial) communication supported for external control from a host device
- Built-in auto-centering function returns servo to neutral position
- Can control two servo motors simultaneously
- High-precision control enables accurate angular positioning
- Utilizes STM8S103 microcontroller to output stable PWM signals
- Mode switching via onboard button
- Compatible with 2S rechargeable lithium batteries
Specification
- Input voltage: DC 5V–9V (depends on application and servo requirements)
- Control channels: 2 channels
- Control accuracy: ±0.09°
- PWM cycle: 20ms (standard 50Hz refresh rate)
- Compatible servo pulse width: 0.5ms – 2.5ms (supports extended range servos)
- Operating temperature: -20°C to +70°C
- Humidity range: 5% – 90% RH (non-condensing)
- Module dimensions: 48 × 30 × 30 mm
Applications
- Robotics: Ideal for controlling servo motors in robots, especially for precise movements and positions
- Automation systems: Can be integrated into automated systems requiring precise rotational control, such as turntables or robotic arms
- Educational projects: Useful in educational settings to teach servo motor control and PWM signal fundamentals
