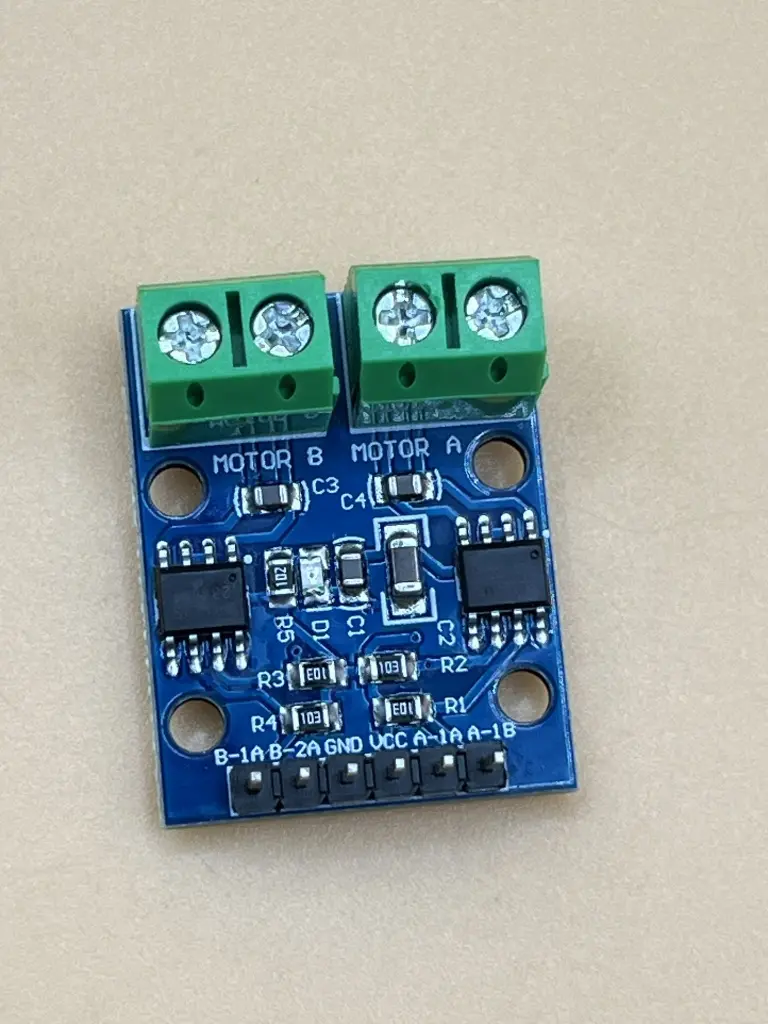

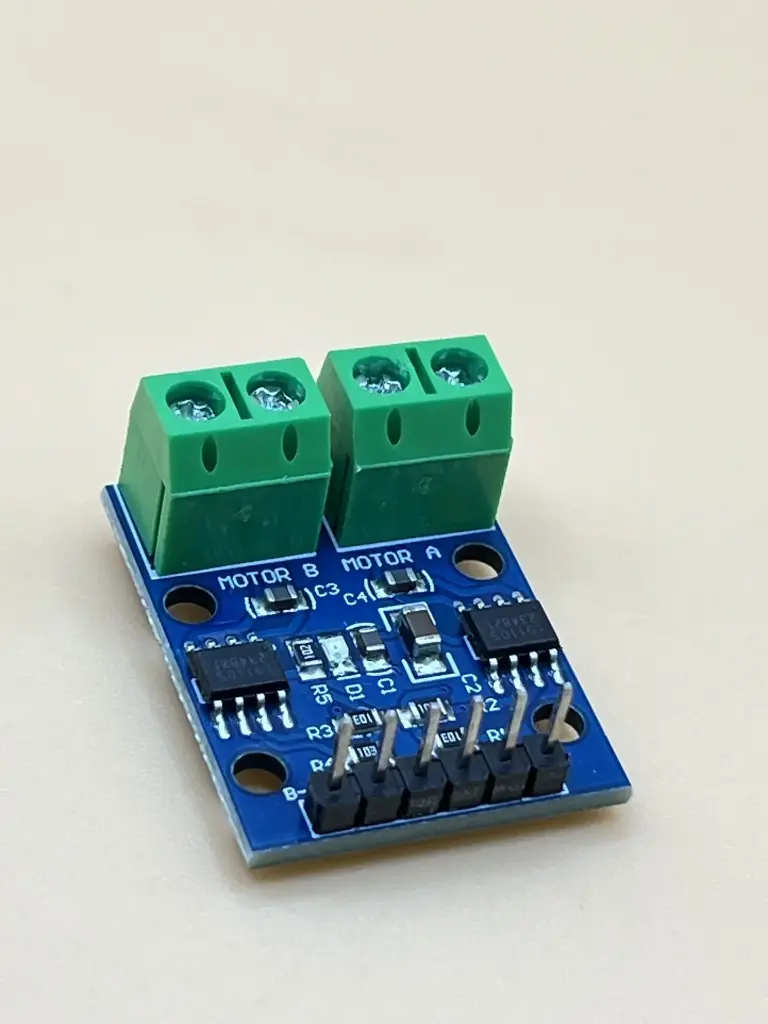

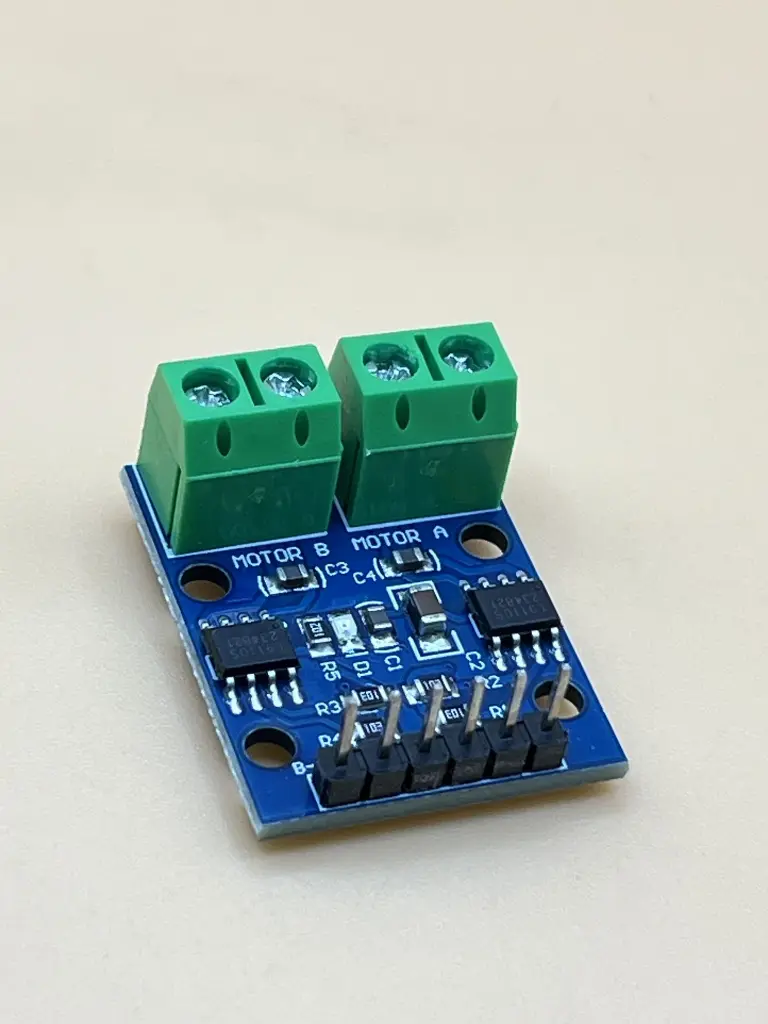

L9110S H bridge Stepper motor driver

Key Features:

• Dual H-Bridge Design: Drives two DC motors or one stepper motor

• PWM Speed Control: Supports pulse width modulation for speed tuning

• Low Power Consumption: Efficient operation with onboard power handling

• 🔧Overvoltage Protection: Pins include high-voltage protection for safe operation

• 🔌 Microcontroller Friendly: Easy to interface with Arduino, STM32, ESP32, etc.

Technical Specifications:

• Operating Voltage: 2.5V – 12V DC

• Continuous Output Current: Up to 800mA per channel

• Logic Compatibility: 3.3V / 5V microcontrollers

• Control Input: Standard logic level inputs for direction & speed

• Operating Temperature Range: 0°C – 80°C

• Module Dimensions: 29.2mm × 23mm × 15mm

Applications:

• Miniature Robotics & Smart Cars

• 2-Phase Stepper Motor Projects

• DIY Motorized Systems

• Educational Electronics Kits

• Simple Automation & Motion Control
