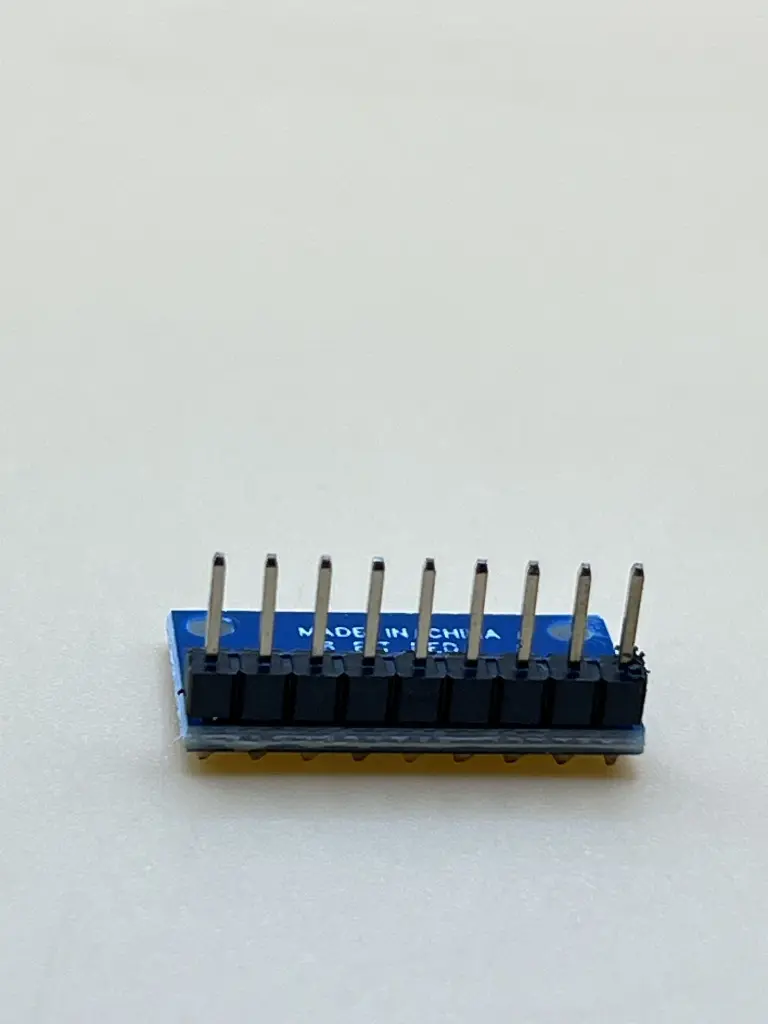

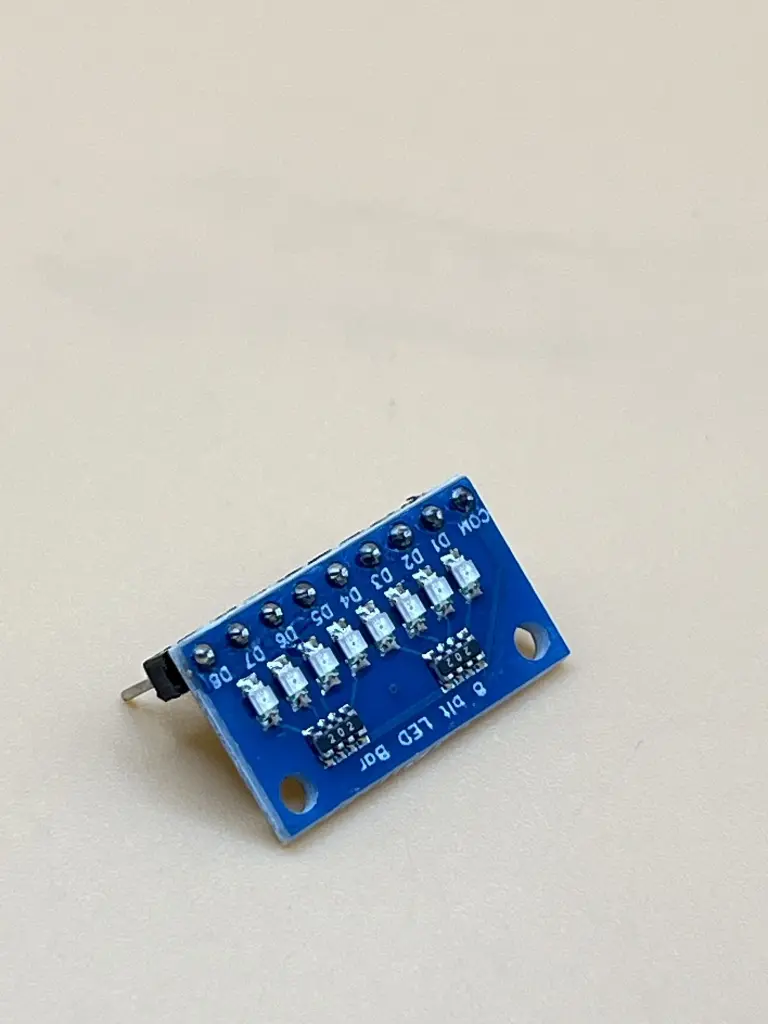

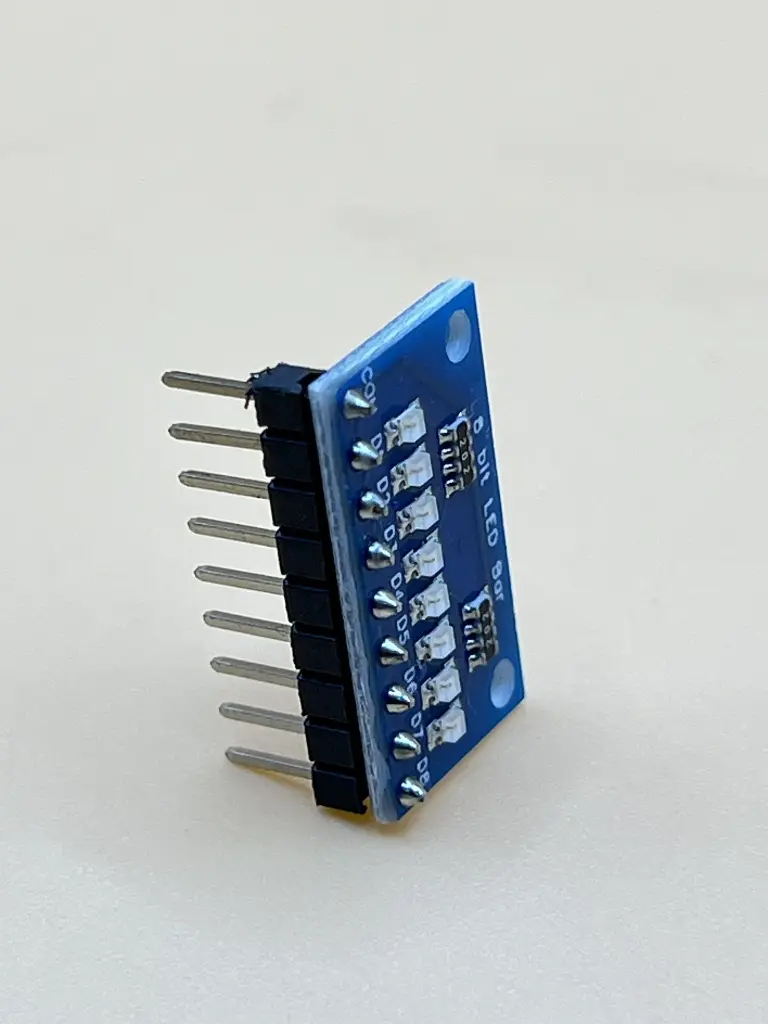

8 bit red LED module

The 8-Bit Red LED Bar Module is a versatile, compact LED display component ideal for a wide range of embedded applications. Whether you're debugging digital signals, designing user interfaces, or building educational projects, this module offers a simple, visual way to display binary values, sensor readings, or system states.

Key Features:

• Clear Binary Display – Easy to read and ideal for digital signal output

• Flexible Polarity Options – Available in both common anode and common cathode

• Plug & Play Compatibility – Standard pin spacing for quick breadboard or PCB integration

• Microcontroller-Friendly – Compatible with Arduino, STM32, ARM, FPGA, PIC, MSP430, etc.

• Ultra-Compact Design – Saves board space in dense electronic layouts

Specifications:

• Type: 8-bit LED Bar (Red)

• Operating Voltage: DC 3V – 24V

• Configuration: Common Anode / Common Cathode (selectable)

• Pin Spacing: 2.54mm (standard breadboard pitch)

• With or Without Pins: Available

• Dimensions: 22.86mm x 14.13mm x 2.11mm

• Weight: 1.3g (with pins), 0.75g (without pins)

Applications:

• LED status display in control panels

• Digital signal testing and debugging

• Binary counters and bar graph indicators

• DIY electronics and educational kits

• Embedded system user interfaces
