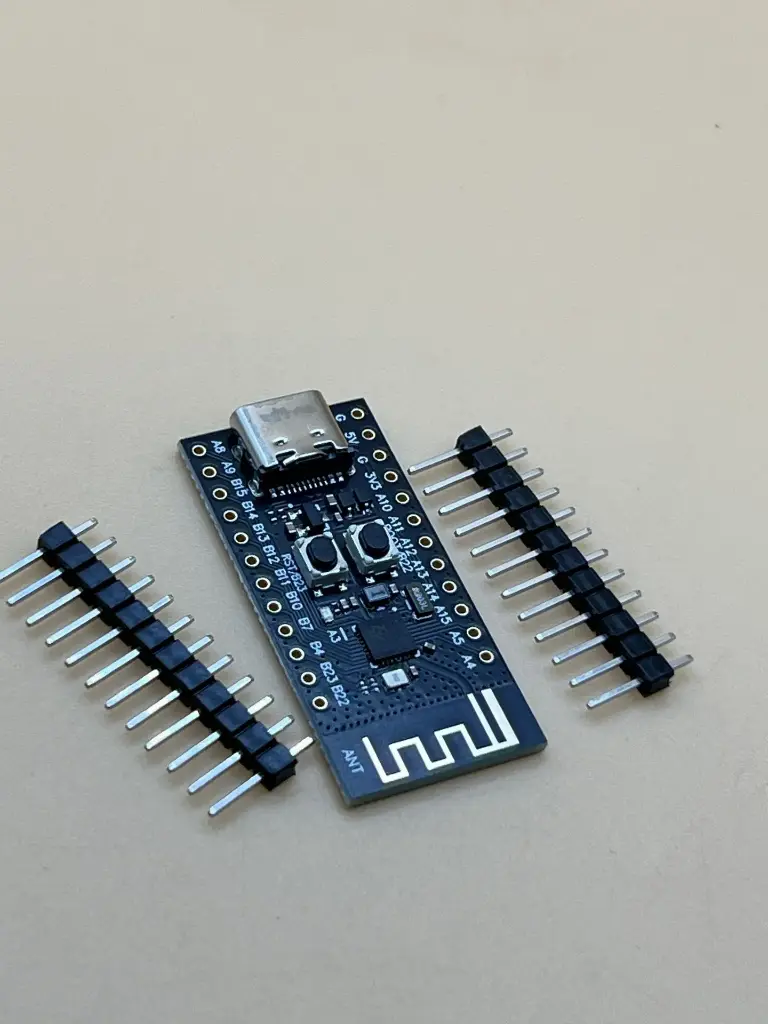

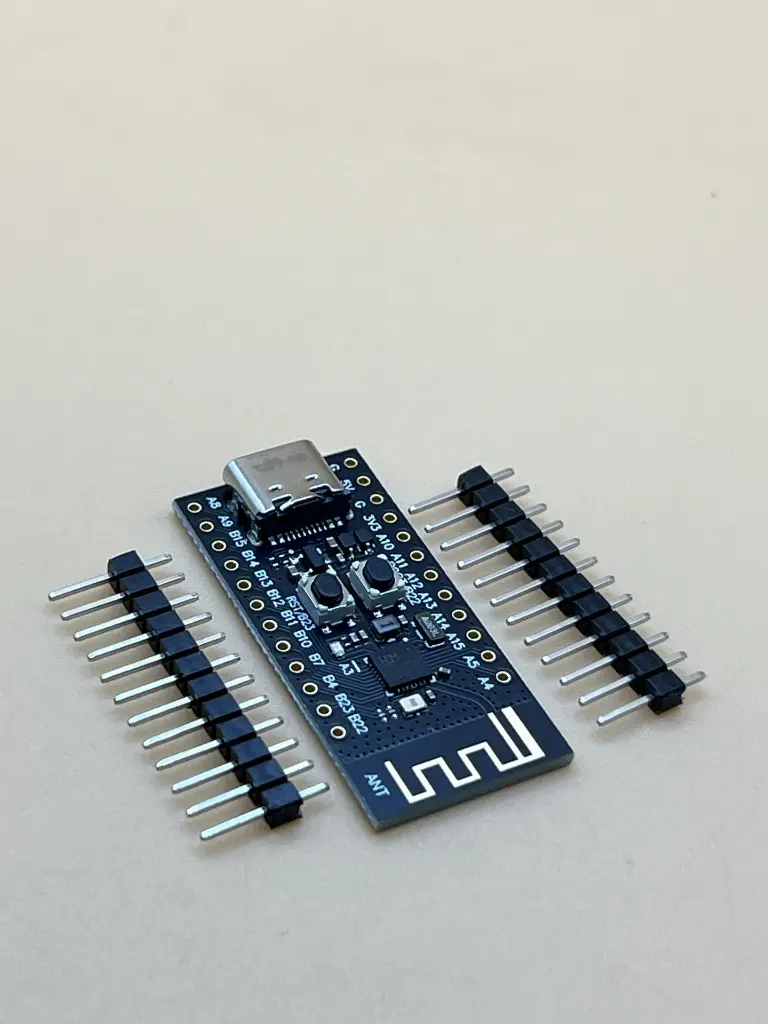

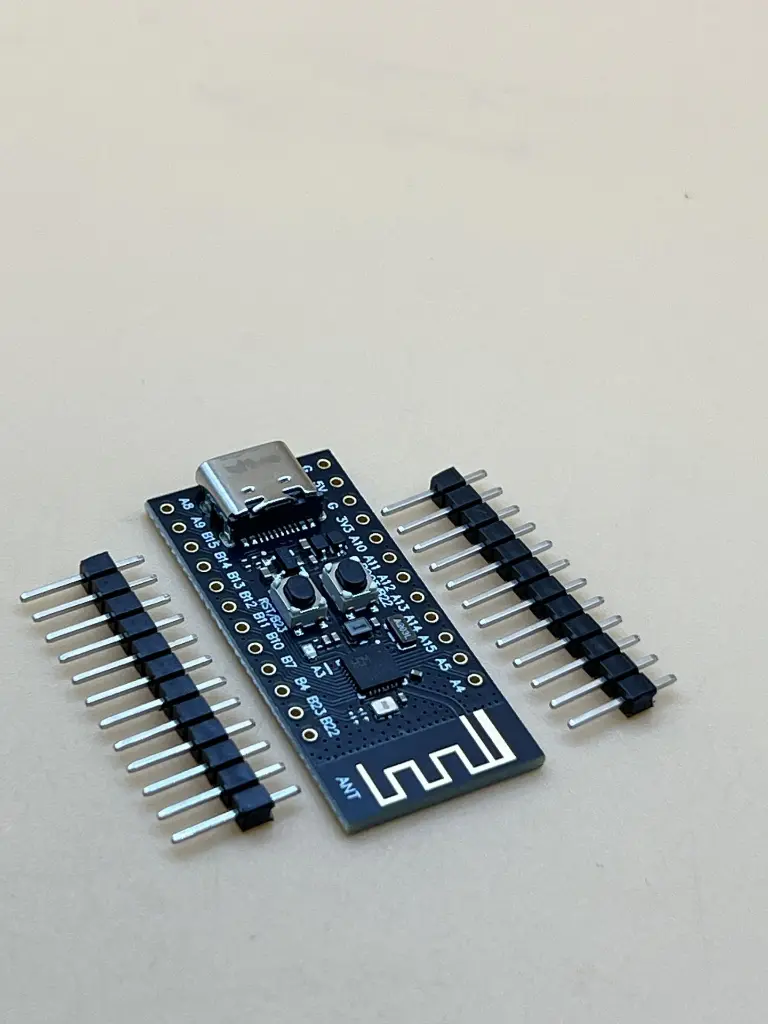

    CH582 Bluetooth development board 5.3

    https://gh.hub360.cc/web/image/product.template/16978/image_1920?unique=9b5eb2b
    8 sold in last 24 hours

    GH¢ 80.00 80.0 GHS GH¢ 80.00

    ₦ 9,300.00

    Not Available For Sale

    (GH¢ 0.00 / Units)
    7 people are viewing this right now

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    The CH582 Bluetooth 5.3 Development Board is a compact, energy-efficient development platform tailored for embedded system prototyping and IoT device creation. With support for Bluetooth 5.3 Low Energy, USB interfacing, and low-power operation, it’s ideal for educational use and rapid product iteration involving ARM and RISC-V architectures.

    Features

    • Bluetooth 5.3 Low Energy (LE) support

    • Compact form factor with dual 12-pin I/O headers

    • Onboard 3.3V LDO regulator with power protection

    • USB connectivity with reverse current and surge protection

    • Dual crystal system for accurate timing (HSE + LSE)

    • Reset and Boot control buttons

    • Ideal for low-power applications and educational use.

    Specifications

    • Clock System:

      • 32 MHz high-speed passive crystal (HSE)

      • 32.768 kHz low-speed passive crystal (LSE)

    • Power Supply:

      • Input Voltage: 3.3V to 5.5V

      • Onboard 3.3V LDO (100 mA max output)

      • USB power protected by diode and TVS for surge and reverse current

    • Interfaces:

      • Two 12-pin headers (2.54 mm pitch) for GPIO and peripheral expansion

    • Control Buttons:

      • Reset Button (connected to B23)

      • Boot Button (connected to B22)

    • Wireless Communication:

      • Bluetooth 5.3 Low Energy (LE)

    Applications

    • Embedded system prototyping

    • IoT device development

    • Bluetooth-based automation and sensing

    • Low-power data logging

    • Educational projects in microcontroller and SoC design
