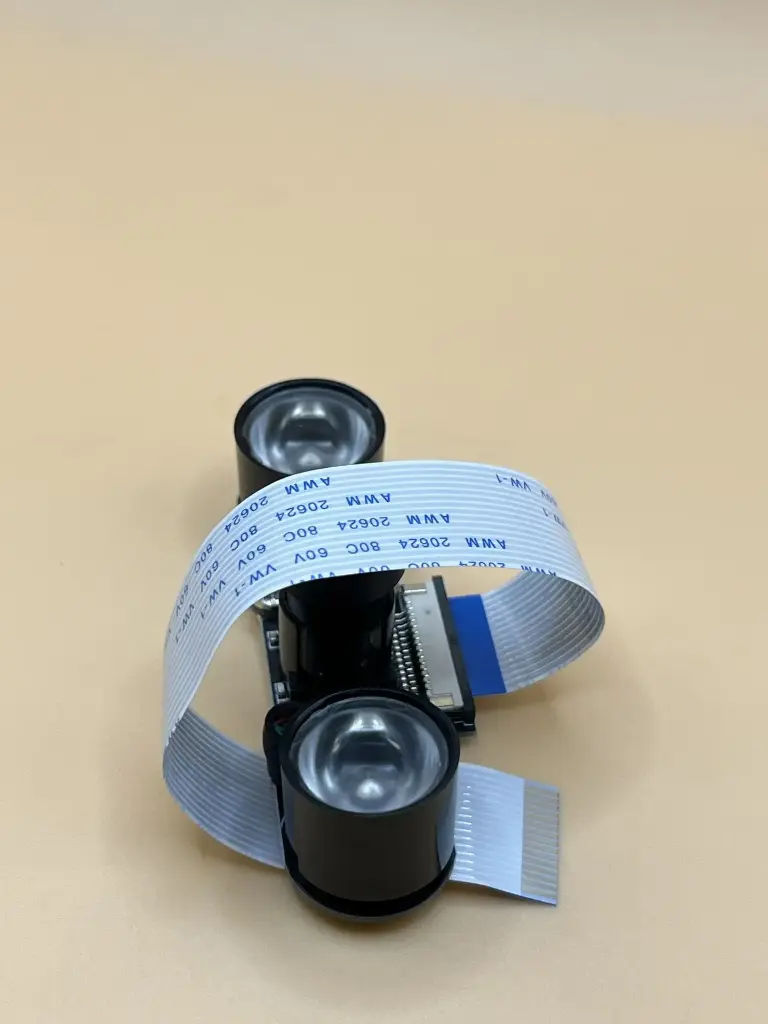

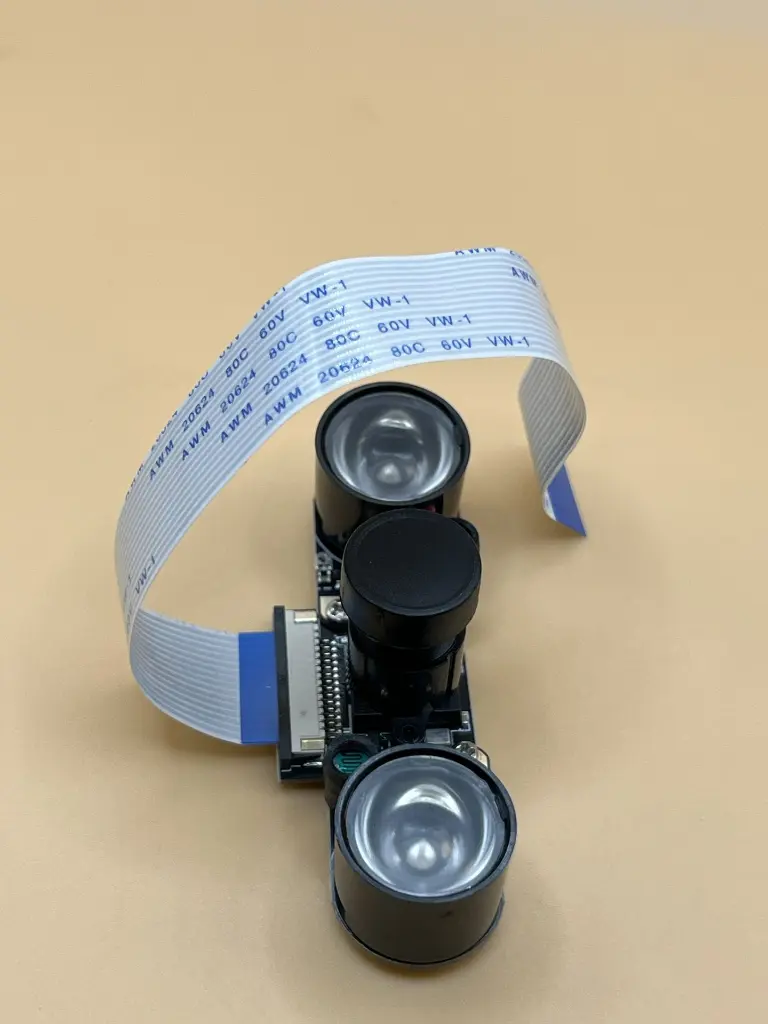

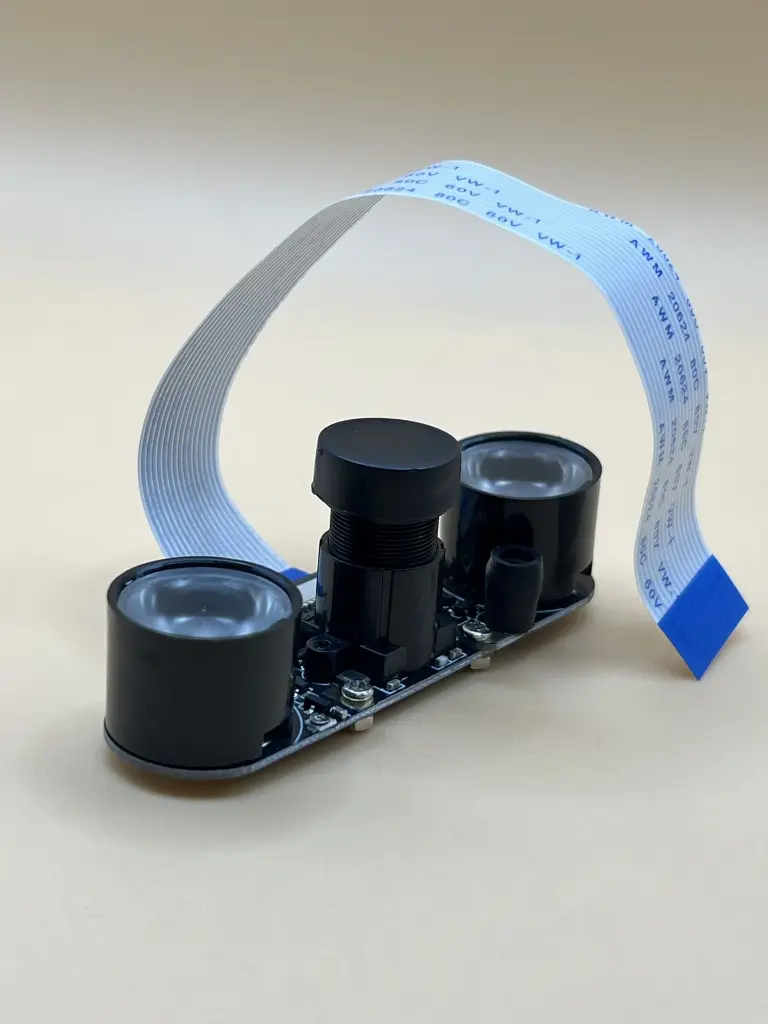

OV5647 5MP 70 degree Raspberry Pi Night vison Fish eye camera
9 sold in last 24 hours
This 5MP fisheye camera module is designed for Raspberry Pi and other compatible boards. It features an OV5647 image sensor and supports full HD video output. With its 70-degree wide-angle lens and built-in infrared LEDs, it delivers excellent performance in both daylight and low-light conditions, making it ideal for security, automation, and AI vision projects.
Features
-
5MP OV5647 CMOS image sensor
-
Adjustable 3.6mm lens for flexible focus
-
Infrared night vision support with built-in IR LEDs
-
Wide 70° field of view fisheye lens
-
Compact design suitable for space-constrained applications
-
Compatible with Raspberry Pi models (via CSI interface)
Specifications
-
Sensor: OV5647, 1/4" CMOS
-
Resolution: 2592 × 1944 (5 Megapixels)
-
Aperture: f/1.8
-
Focus Distance: 3.6mm (adjustable)
-
Field of View: 70°
-
Video Output:
-
1080p @ 30fps
-
720p @ 60fps
-
-
Power Supply: 3.3V
-
Operating Temperature: –20°C to 70°C
Applications
-
Home surveillance and security systems
-
Smart doorbells and baby monitoring
-
Robotics and object detection
-
Wildlife or time-lapse photography
-
Machine vision and AI projects using Raspberry Pi
