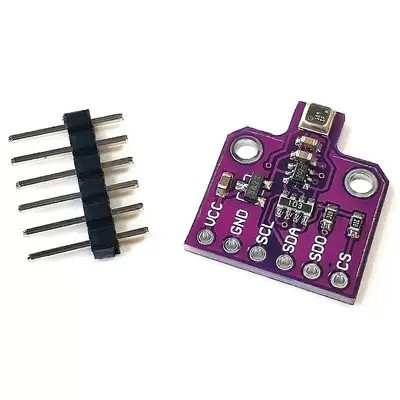

BME680 temperature, Humidity and Pressure module

Key Features

• 4-in-1 sensor: Temperature, Humidity, Pressure, and Gas

• Dual interface support: I²C (up to 3.4 MHz) & SPI (up to 10 MHz)

• Extremely low power consumption, ideal for battery-powered applications

• Sensors can be individually enabled/disabled to optimize power use

• Compatible with both 3.3V and 5V logic systems

• Compact size with high accuracy and fast response time

Technical Specifications

• Interface:

  • I²C (3.4 MHz max)

  • SPI (3-/4-wire, 10 MHz max)

• Voltage Requirements:

  • VDD: 1.71 V – 3.6 V

  • VDDIO: 1.2 V – 3.6 V

• Current Consumption:

  • 2.1 μA (humidity + temperature @1Hz)

  • 3.1 μA (pressure + temperature @1Hz)

  • 3.7 μA (humidity + pressure + temperature @1Hz)

  • 0.09 – 12 mA (full sensor use incl. gas sensing, depending on mode)

  • 0.15 μA (sleep mode)

• Operating Conditions:

  • Temperature: -40°C to +85°C

  • Humidity: 0–100% RH

  • Pressure: 300–1100 hPa

• Physical Characteristics:

  • Module Size: 16.3 mm × 18.7 mm

  • Weight: 1.3 g

Applications

• Indoor air quality monitoring

• Smart home and HVAC systems

• IoT-based environmental sensing

• Weather stations and forecasting units

• Enhanced GPS performance (e.g., altitude detection)

• Indoor navigation (floor change detection)

• Wearable fitness trackers and environmental monitors

• Vertical speed indication for drones, vehicles, or climbing aids
