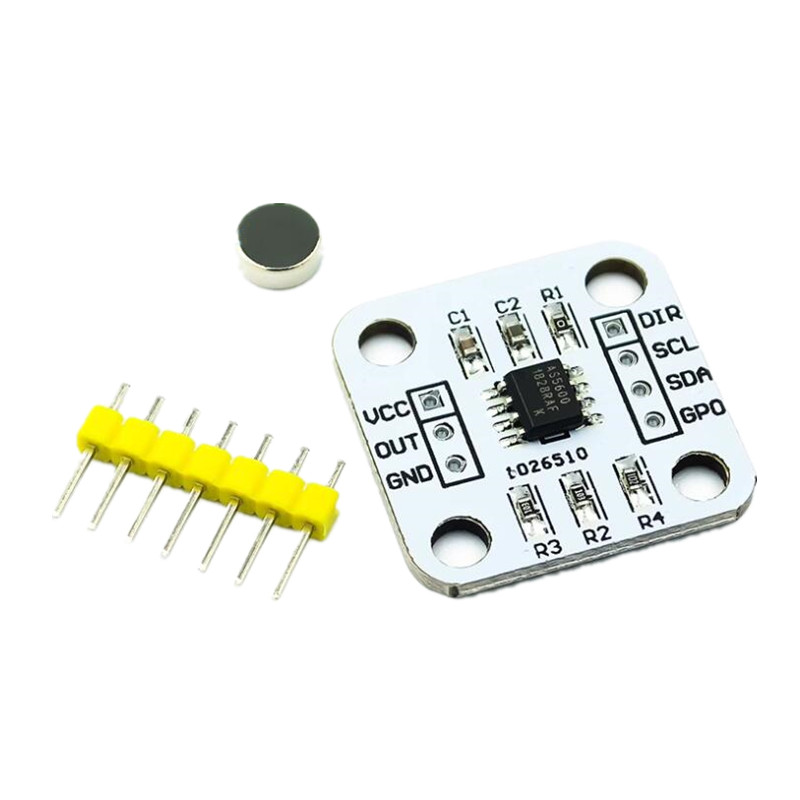

    AS5600 magnetic encoder

    https://gh.hub360.cc/web/image/product.template/16985/image_1920?unique=9b5eb2b
    14 sold in last 24 hours

    GH¢ 35.00 35.0 GHS GH¢ 35.00

    ₦ 4,400.00

    Not Available For Sale

    (GH¢ 0.00 / Units)
    5 people are viewing this right now

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    The AS5600 is a 12-bit contactless magnetic rotary encoder sensor designed for precise angular position detection. It detects the rotation of a magnetic field (typically from a diametrically magnetized magnet) and outputs either analog voltage, PWM, or communicates over I²C. With high accuracy, low power consumption, and simple integration, it's ideal for motor control, robotics, position tracking, and automated systems.

    Key Features

    • High-resolution 12-bit angular sensing (0–360°)

    • Contactless magnetic sensing—no mechanical wear

    • Supports multiple output modes:

      • Analog voltage

      • PWM signal

      • I²C digital communication

    • Configurable direction pin (DIR) to set CW/CCW logic

    • Low-power operation, suitable for battery-powered designs

    • Compact size for tight enclosures

    Technical Specifications

    • Resolution: 12-bit (4096 positions per rotation)

    • Output Interfaces:

      • PWM

      • Analog voltage

      • I²C (via SCL & SDA)

    • Supply Voltage: 3.3V

    • DIR Pin Logic:

      • GND = Increasing angle values in CW direction

      • VCC = Increasing values in CCW direction

    • GPO Pin: Mode selection (Low = Programming mode B)

    • Physical Dimensions: 0.91 in × 0.91 in × 0.91 in

    Applications

    • Rotary encoders for motors and knobs

    • Precision servo and stepper motor control

    • Position feedback in robotics

    • Angle sensors for automation systems

    • Contactless potentiometer replacements

    • DIY CNC and 3D printer feedback systems
