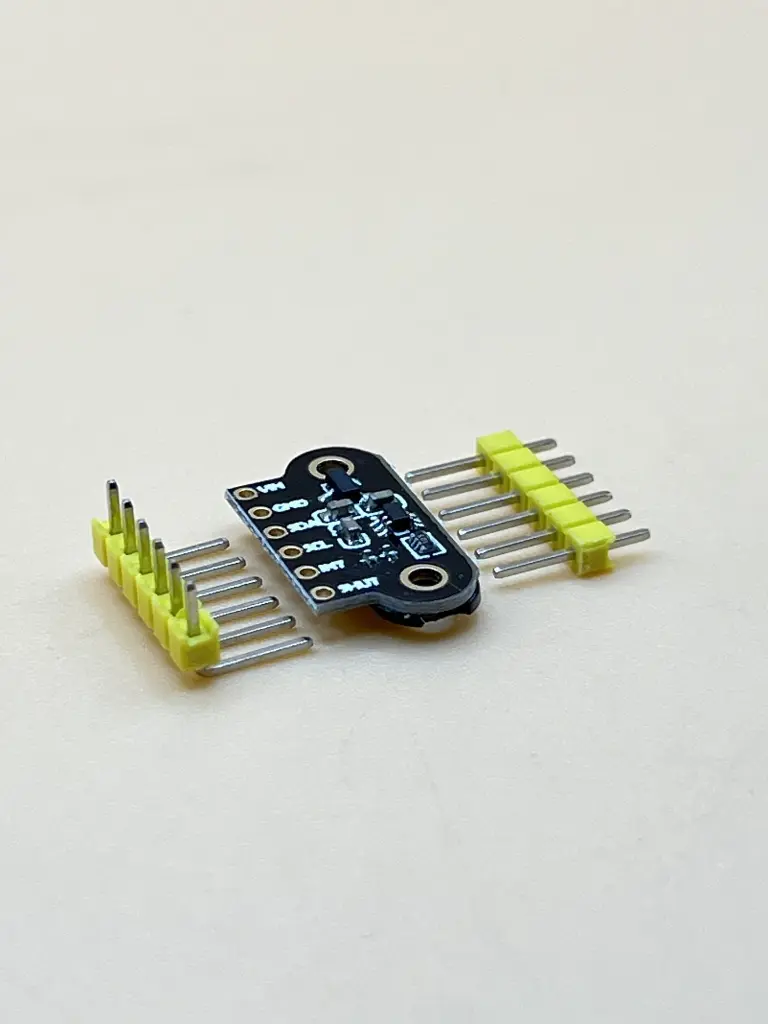

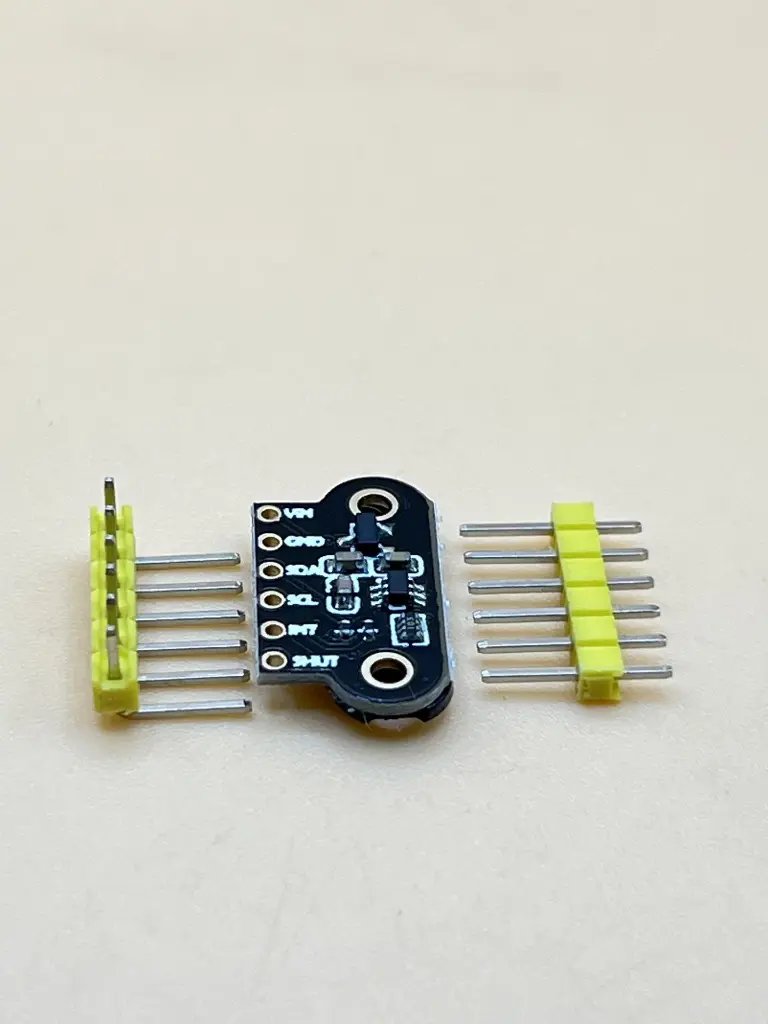

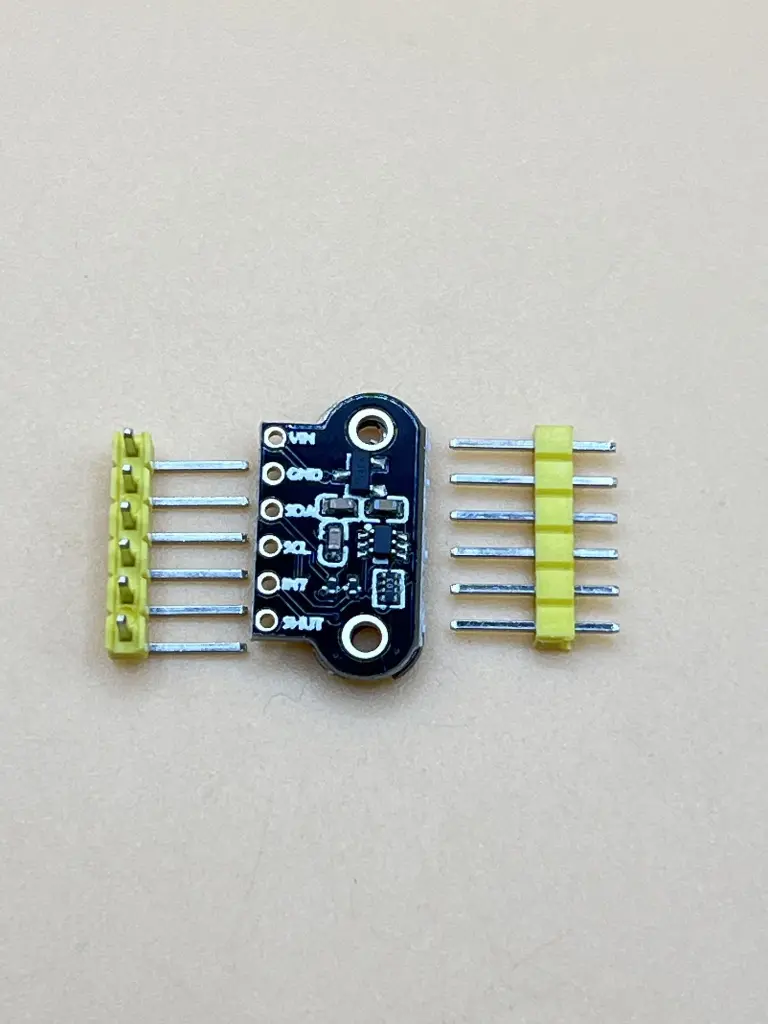

TOF200C 200cm laser distance sensor

The TOF200C is a compact, high-accuracy laser distance sensor built on VL53L0X Time-of-Flight (TOF) technology. It offers precise distance measurement from 3 cm to 200 cm with millimeter-level accuracy. With support for I²C communication and a wide operating voltage of 3V to 5V, it integrates seamlessly with Arduino, ESP32, Raspberry Pi, and other popular microcontrollers. Its minimal size and low power consumption make it ideal for robotics, smart automation, and embedded sensing systems.

Features

• Accurate laser-based distance sensing up to 200 cm

• Time-of-Flight measurement with ±1mm precision

• Small footprint for tight-space integrations

• I²C interface with configurable addresses for multi-sensor use

• Wide voltage input range (3V–5V) for broad compatibility

• Lightweight and energy-efficient design

• Easy mounting with integrated screw holes

Specifications

• Operating Voltage: 3V to 5V DC

• Current Consumption: 40mA (maximum)

• Measuring Distance: 3 cm to 200 cm

• Accuracy: ±1 mm

• Interface: I²C (software-configurable address)

• Compatibility: Arduino, ESP8266, ESP32, Raspberry Pi, STM32

• Dimensions: 1.3 cm × 1.04 cm × 0.32 cm

• Mounting: Two screw holes for secure installation

Applications

• Robotics: Precision obstacle avoidance for mobile robots and robotic arms

• Smart Home Automation: Trigger lights, smart curtains, or gesture-based controls

• IoT Devices: Perfect for wearables, health monitors, and smart gadgets

• Industrial Sensing: Use in automated assembly lines or object proximity detection

• Security Systems: Reliable motion sensing for alarms or monitoring solutions
