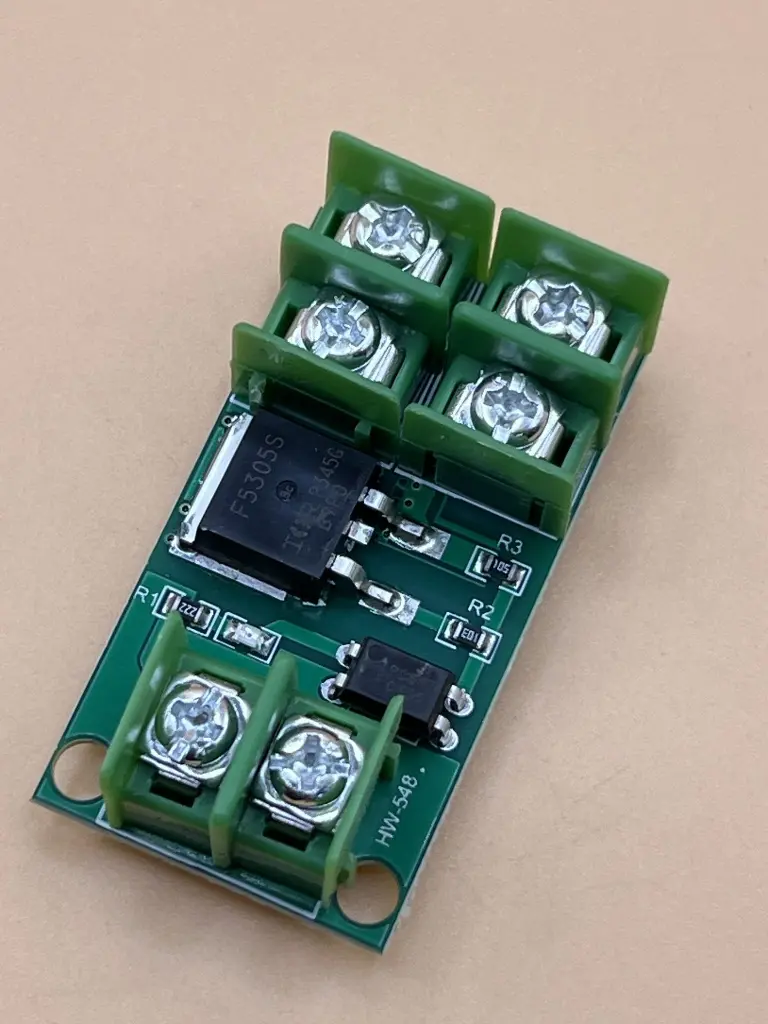

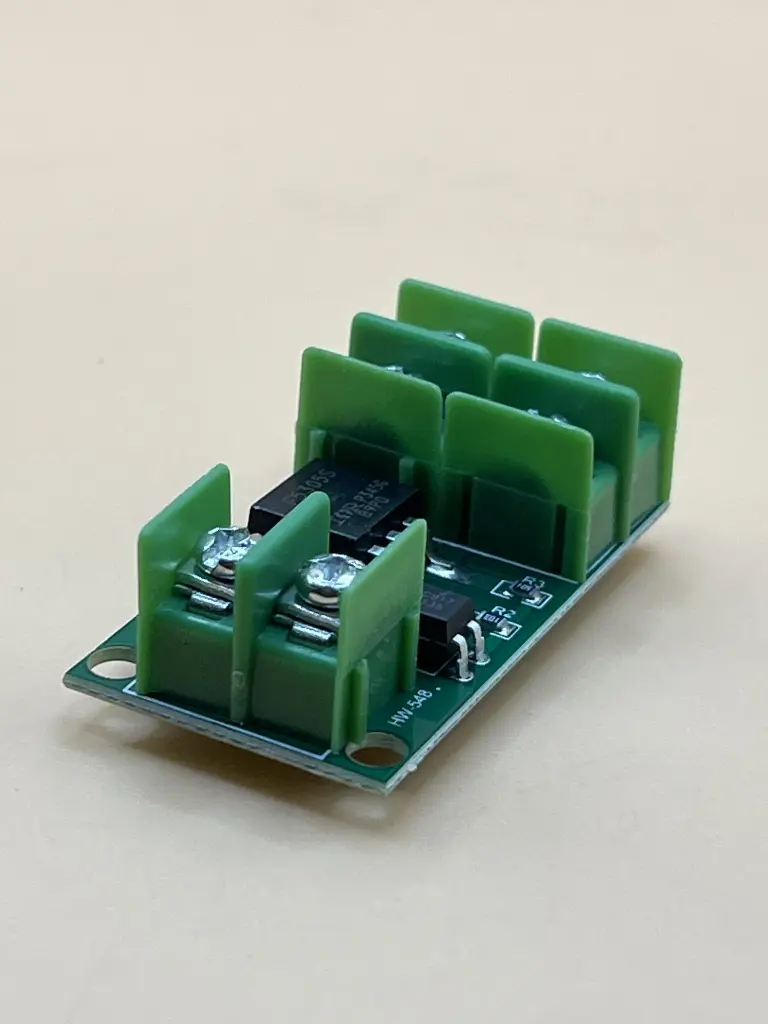

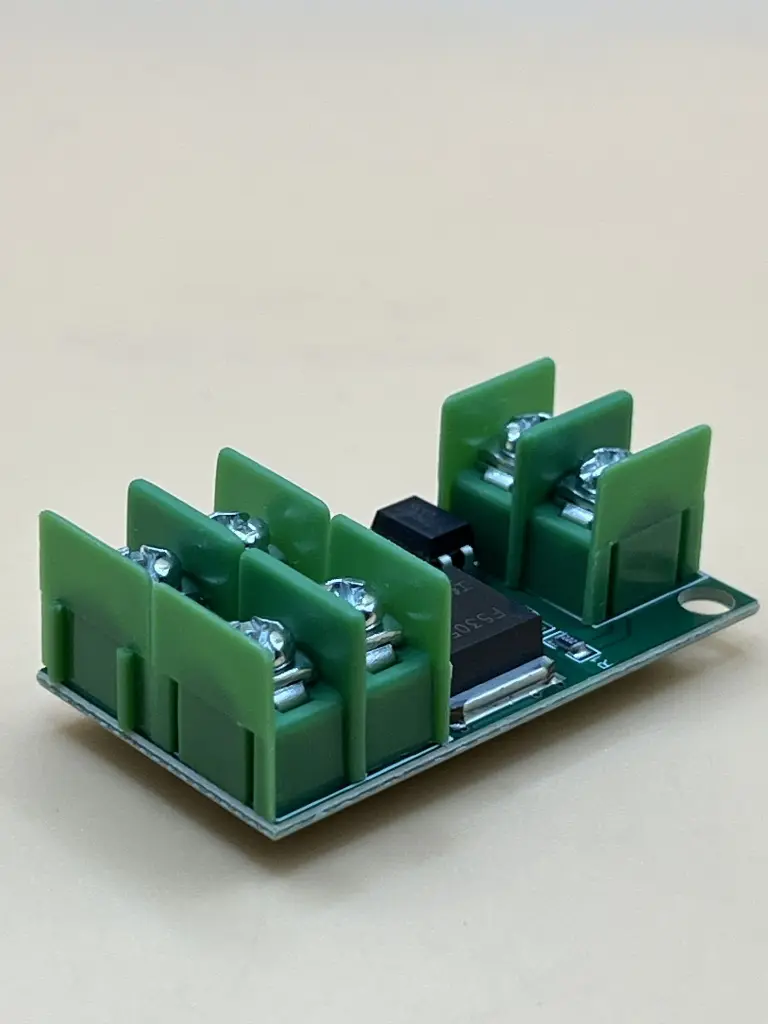

Mosfet Electronic switch control board
9 sold in last 24 hours
The MOSFET Electronic Switch Control Board is a compact, high-current switching module designed to control DC loads using a microcontroller's low-voltage signal. It uses a logic-level MOSFET to switch high-power devices efficiently, making it ideal for motors, LEDs, solenoids, and other automation applications.
Key Features:
- High-Current Switching: Controls loads up to several amps
- Logic-Level Triggering: Compatible with 3.3V or 5V control signals
- Fast Switching Speed: Suitable for PWM-based control
- Compact Module Design: Easy integration in embedded systems
- Built-In Protection: Includes flyback diode for inductive loads
- Low Heat Generation: Efficient operation with minimal loss
- Plug-and-Play: No complex setup or drivers needed
- Model: MOSFET Switch Module (varies by board)
- Control Signal Voltage: 3.3V / 5V logic compatible
- Load Voltage: 5V – 36V DC (depends on MOSFET used)
- Max Load Current: Typically 5A – 15A (check module rating)
- MOSFET Type: Logic-level N-channel (e.g., IRF520, IRFZ44N, etc.)
- Trigger Interface: 3-pin (VCC, GND, IN)
- Protection Features: Flyback diode for inductive loads
- Module Size: Varies (commonly ~33 mm × 17 mm)
- DC motor control
- LED strip or lighting control
- Smart relays and automation systems
- Power switching in IoT projects
- Solenoids and electromagnets
- Battery-powered devices and power gating
No Specifications
