Description

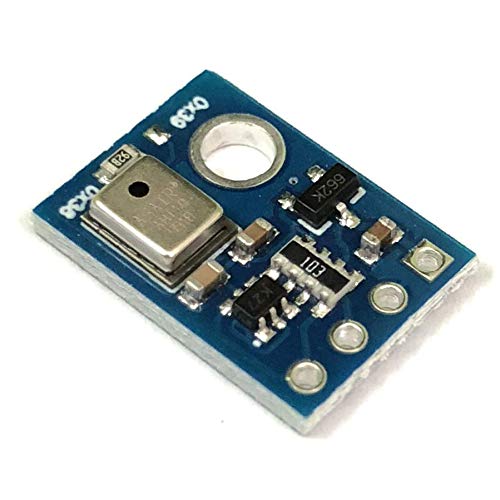

The AHT10 is a fully calibrated digital temperature and humidity sensor featuring a standard I²C interface, compact size, and low power consumption. Designed for real-time environmental monitoring, it offers stable performance and high reliability for IoT, HVAC, and embedded applications.
Key Features
- Fully Calibrated: No external calibration required
- I²C Output: Simple 2-wire digital communication
- High Accuracy: ±2% RH and ±0.3 °C (typical)
- Low Power: Suitable for portable and battery devices
- Compact Design: Ideal for space-limited applications
- Stable Performance: Low drift and high repeatability
- Fast Response: Quick environmental tracking
Specification
- Model: AHT10
- Interface: I²C (address: 0x38)
- Supply Voltage: 1.8V – 3.6V
- Humidity Range: 0 – 100% RH
- Temperature Range: -40°C to +85°C
- Humidity Accuracy: ±2% RH
- Temperature Accuracy: ±0.3°C
- Response Time: <8 seconds
- Dimensions: ~15 mm × 10 mm (module-dependent)
- Weight: ~2 g
Application
- IoT environmental sensors
- Indoor air quality monitoring
- Smart home climate systems
- Agricultural monitoring
- HVAC and thermostats
