Description

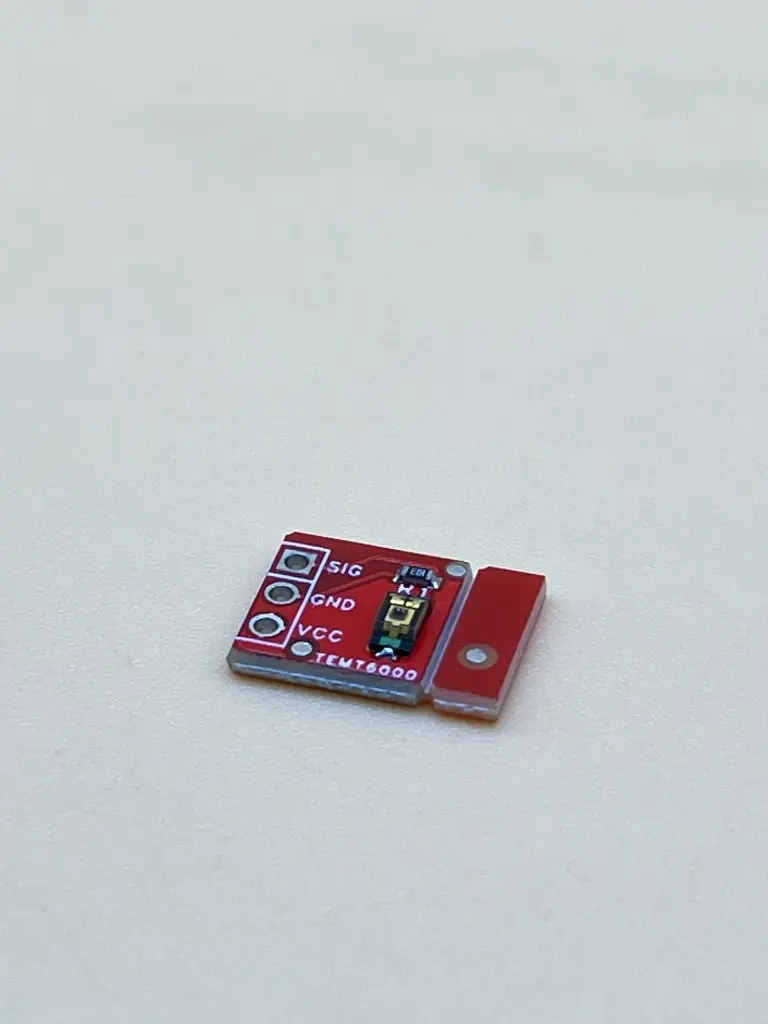

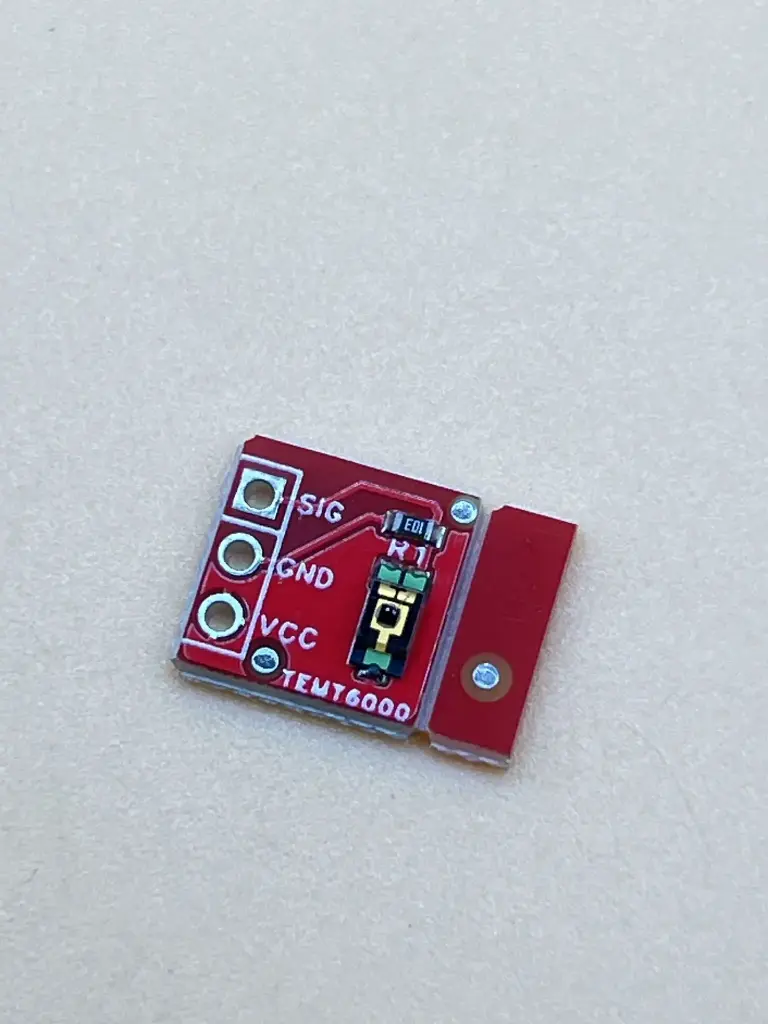

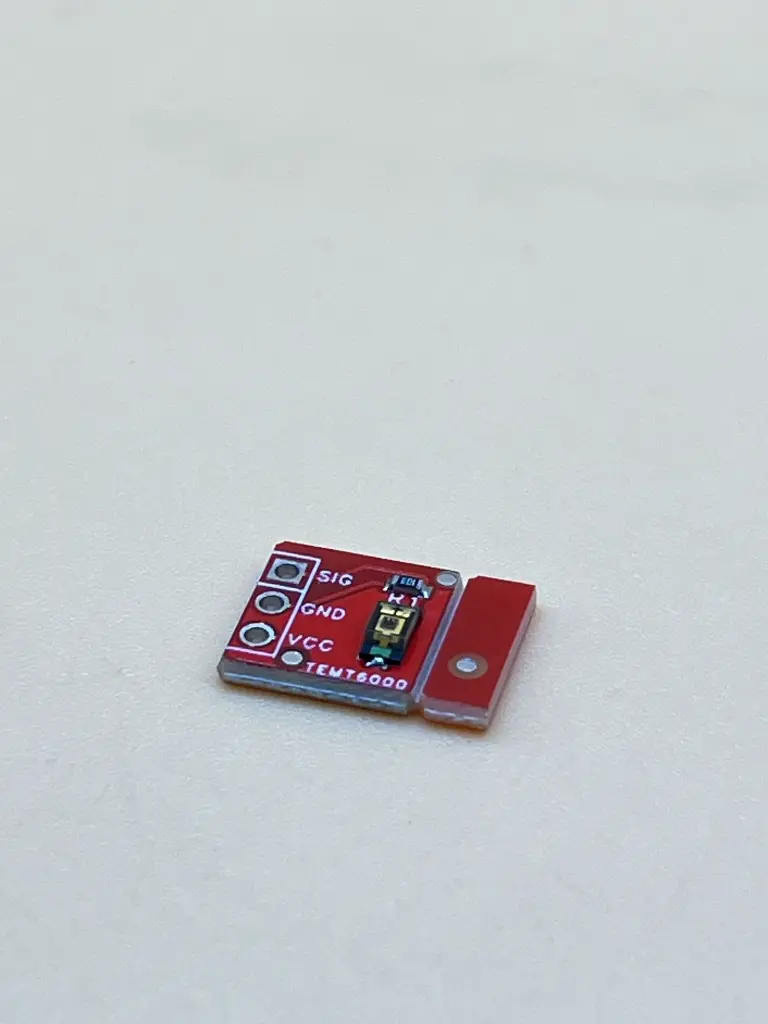

The TEMT6000 is a compact ambient light sensor that mimics the spectral response of the human eye. Designed using an NPN phototransistor in a transparent SMD package, it offers reliable visible light sensing for brightness detection, automatic backlight adjustment, and environmental monitoring.
Key Features
- Eye-Response Matching: Human-eye spectral sensitivity
- Wide Detection Angle: ±60° half-angle sensitivity
- Analog Output: Varies with light intensity
- Surface-Mount Ready: Compact SMD package
- Reflow Solder Compatible: Supports IR soldering
- RoHS & WEEE Compliant: Lead-free and eco-friendly
Specification
- Model: TEMT6000
- Sensor Type: Ambient light phototransistor
- Spectral Sensitivity: Visible light (400–700 nm)
- Output Type: Analog voltage (linear with light)
- Operating Voltage: 3.3V – 5V DC
- Current Consumption: ~1 mA
- Viewing Angle: ±60°
- Interface: Analog (not I²C; I²C breakout may be available in some versions)
- Package Type: 3-pin SMD module
- Size: ~16 mm × 10 mm
- Weight: ~1 g
Application
- Automatic brightness adjustment
- Smart lighting systems
- Solar trackers and light meters
- Display backlight dimming
- Environmental data logging
