Description

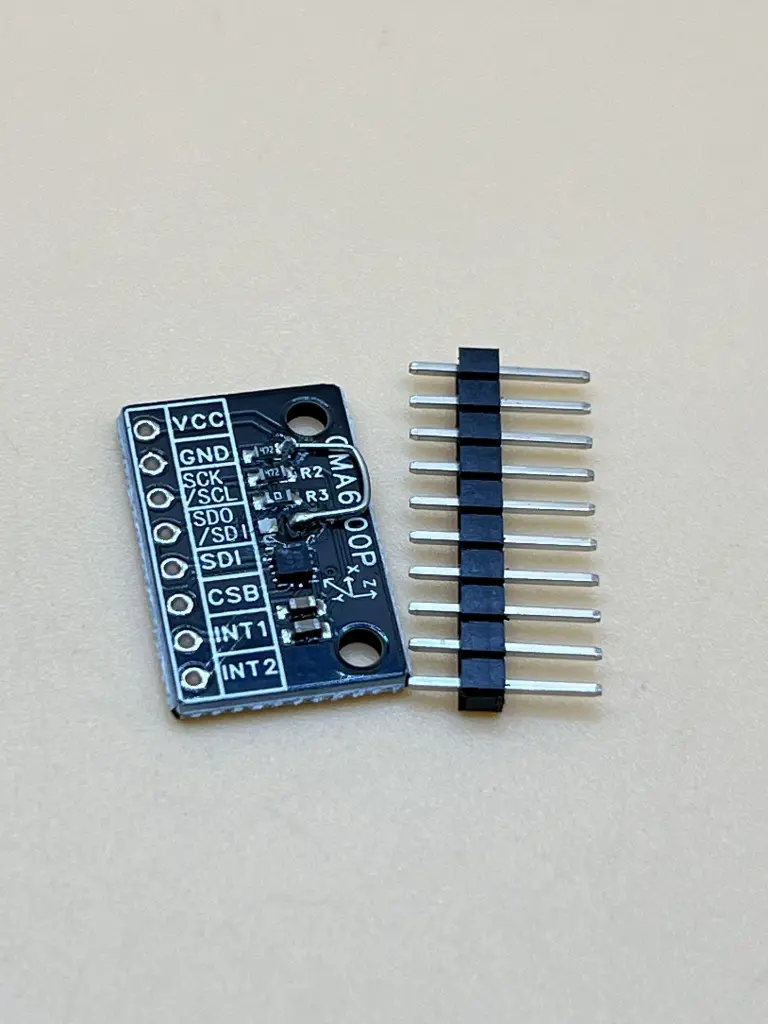

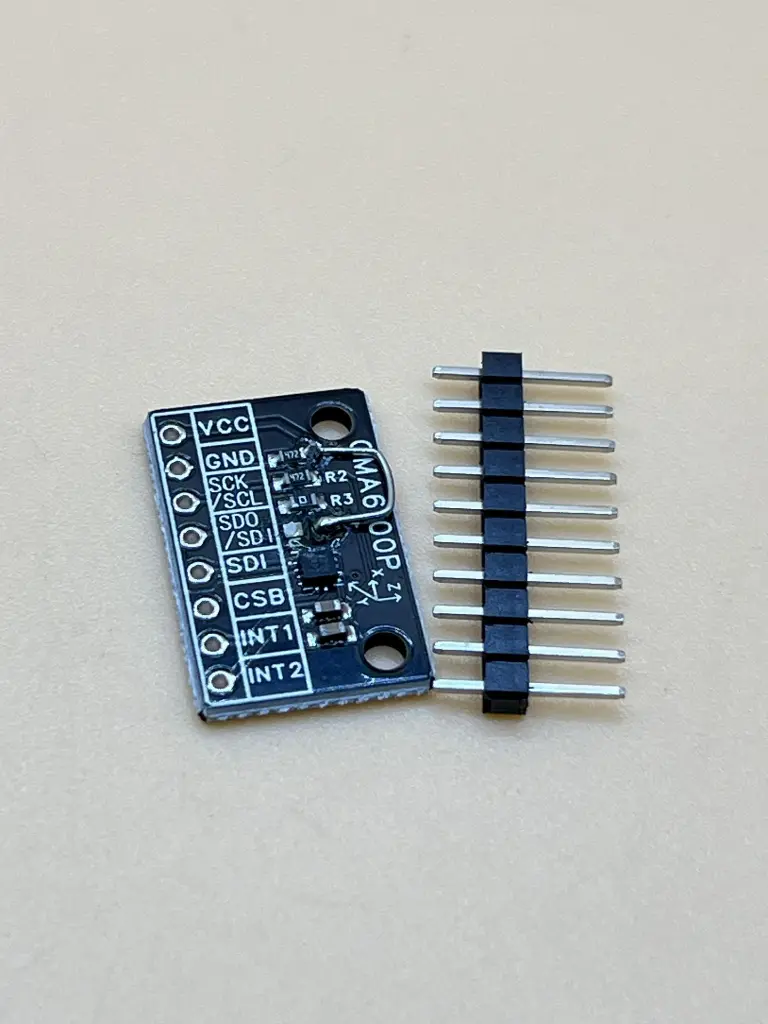

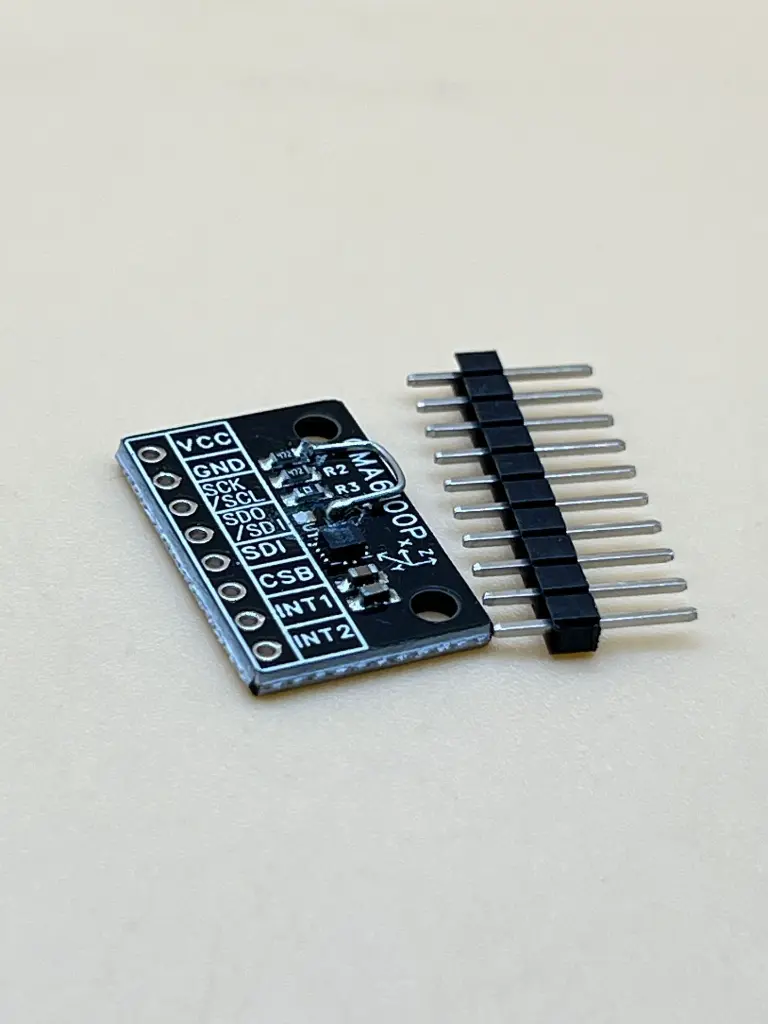

The QMA6100P is a high-resolution, 3-axis accelerometer module designed for precise motion and tilt detection in portable and embedded systems. With digital output via I2C and SPI interfaces, this sensor provides accurate acceleration readings along the X, Y, and Z axes, enabling reliable orientation, movement, and vibration sensing across various applications.
Key Features
- Digital Output: Supports both I2C and SPI for versatile communication
- Compact and Lightweight: Ideal for space-constrained applications
- Low Power Consumption: Optimized for battery-powered devices
- Wide Operating Range: Reliable performance across a broad temperature spectrum
- Precision Sensing: High sensitivity with low noise for accurate motion tracking
Specification
- Sensor Type: 3-axis digital accelerometer
- Model: QMA6100P
- Output Interface: I2C (up to 400kHz), SPI (up to 1MHz)
- Operating Voltage: 1.71V – 3.6V
- Acceleration Range: ±2g / ±4g / ±8g selectable
- Resolution: 16-bit digital output
- Power Consumption: <150 µA in active mode
- Operating Temperature: -40°C to +85°C
- Package Size: 2 x 2 x 0.95 mm (sensor IC)
Application
- Mobile devices for screen orientation and gesture recognition
- Step and motion tracking in fitness equipment
- Vibration monitoring in industrial systems
- Tilt detection in IoT smart objects
- Wearable tech for motion awareness
