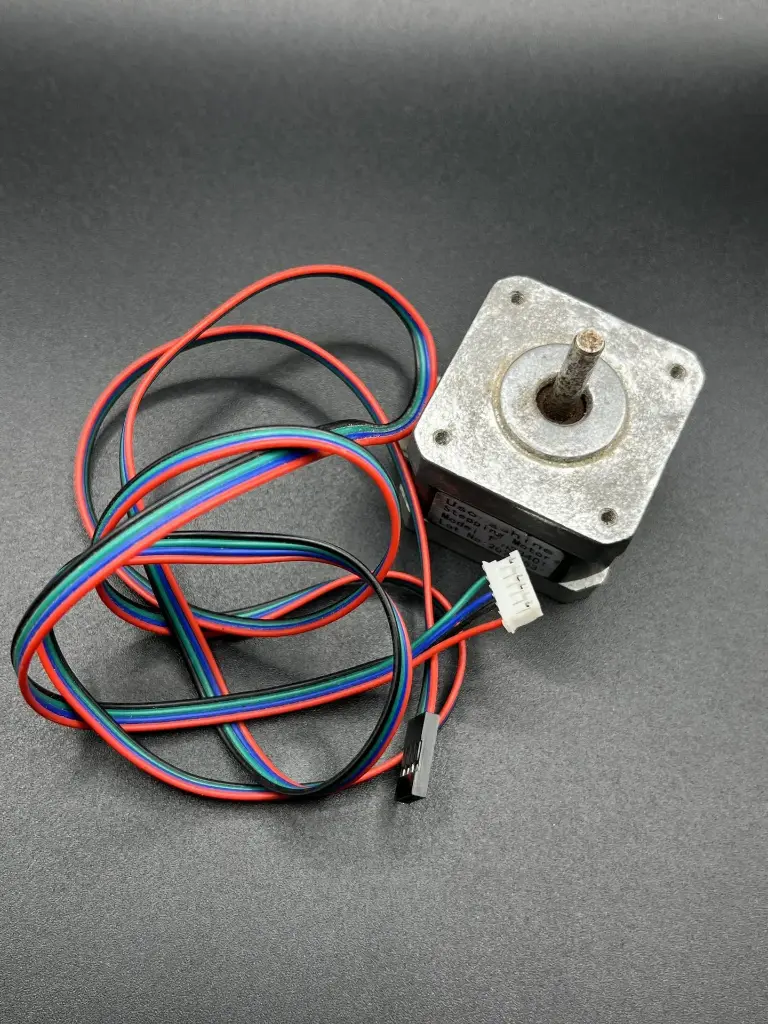

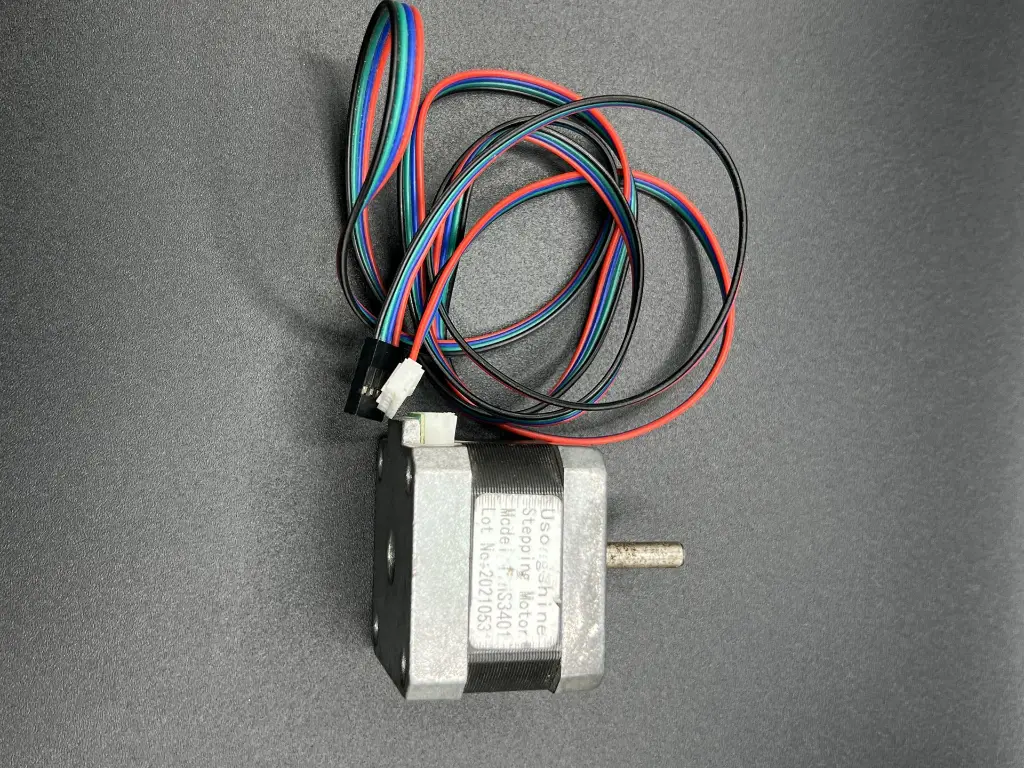

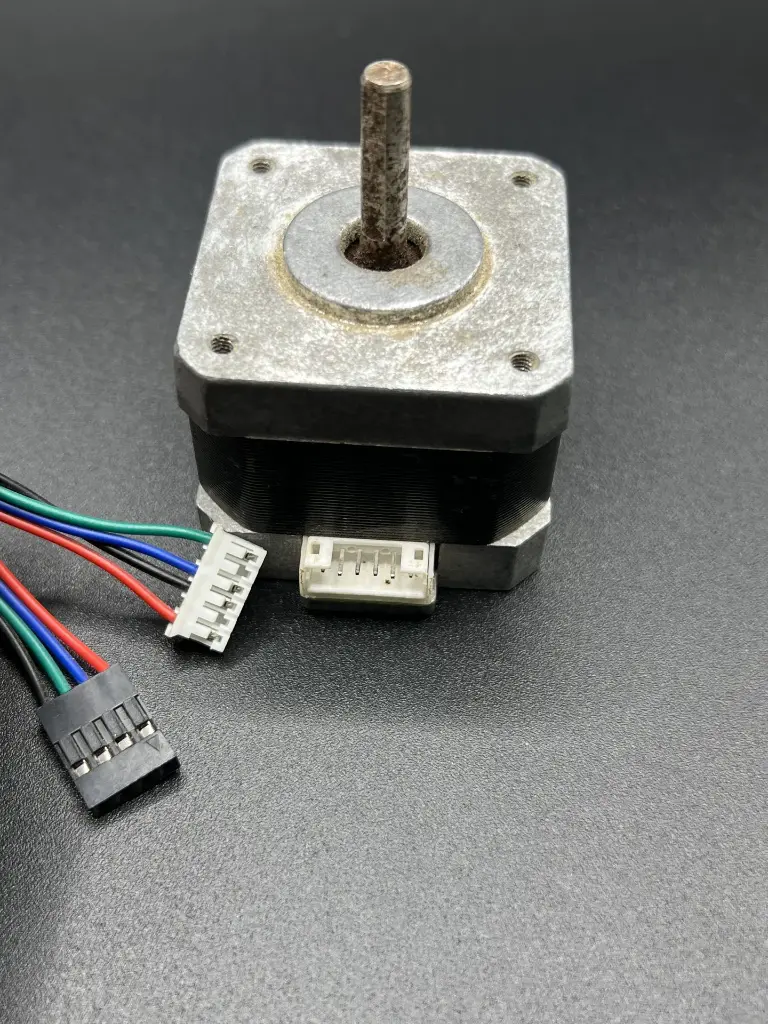

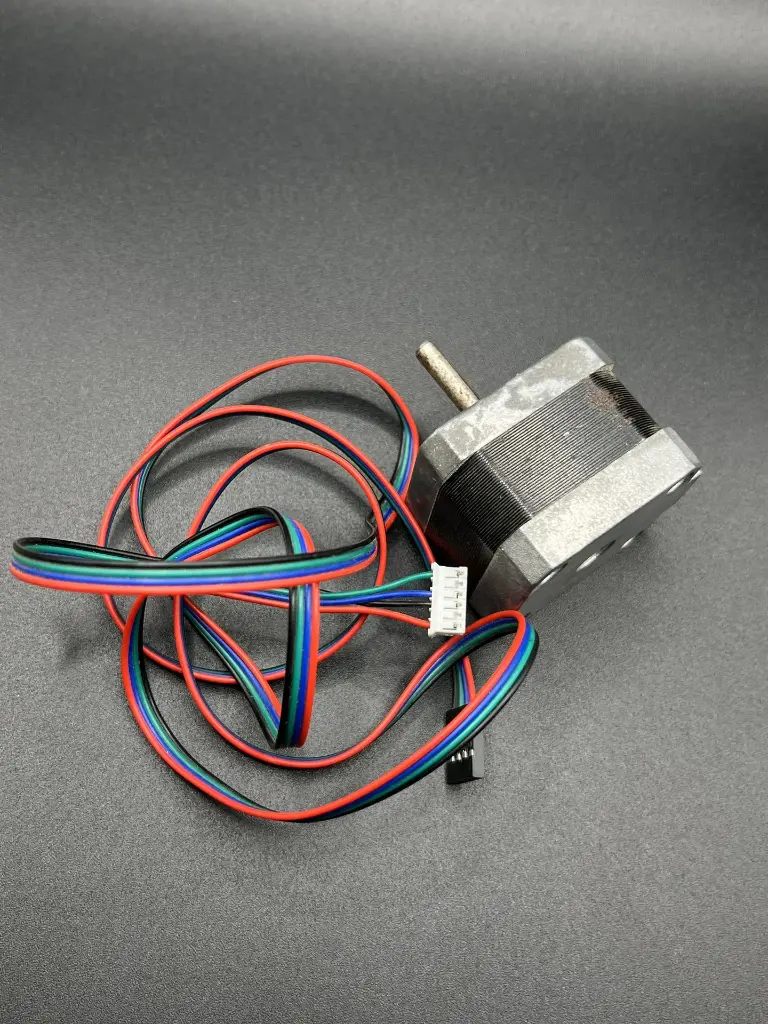

Nema17 Stepper motor 42hb34f08ab
The 42HB34F-08AB is a Nema 17 stepper motor designed for precision control in various applications, including 3D printers, CNC machines, and automation systems. It features a robust design for reliable performance and precise positioning.
Key Features:
- Nema 17 standard frame size
- Bipolar stepper motor with 1.8° step angle
- High torque output for demanding applications
- Compact and durable construction
- Designed for high precision and reliable operation
- Frame Size: Nema 17
- Model Number: 42HB34F-08AB
- Step Angle: 1.8° per step
- Holding Torque: 0.8Nm (approximately 113 oz-in)
- Current per Phase: 1.8A
- Resistance per Phase: 1.3Ω
- Inductance per Phase: 2.8mH
- Shaft Diameter: 5mm
- Shaft Length: 34mm
- Number of Phases: 2
- Length: 42mm
- Mounting Hole Distance: 31.8mm
- Weight: Approximately 400g
- Operating Temperature Range: -20°C to +50°C
- 3D printers
- CNC machines
- Automation systems
- Robotics
- Camera platforms
- Positioning systems
- Connect the stepper motor to a compatible stepper motor driver or controller.
- Ensure the power supply matches the voltage and current requirements of the motor.
- Use appropriate mounting hardware to secure the motor in place.
- Configure the stepper motor driver settings according to the motor specifications for optimal performance.
- Ensure proper electrical connections to avoid damage or malfunction.
- Avoid overheating by following the manufacturer's recommended operating conditions.
- Use adequate cooling if the motor is used in high-load applications to prevent overheating.
