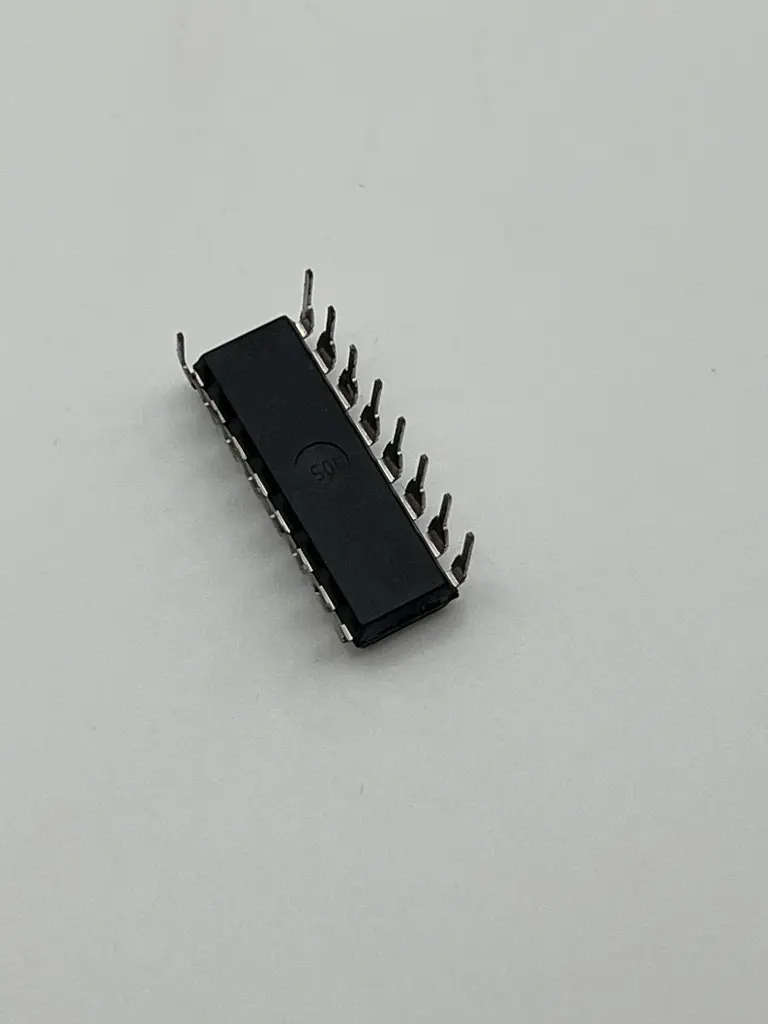

    74HC595 Shift Register

    https://gh.hub360.cc/web/image/product.template/11870/image_1920?unique=1c4a6b4

    Description


    The 74HC595 is an 8-bit serial-in, parallel-out shift register with an 8-bit storage register. The device features a serial data input (DS), eight parallel data outputs (Q0-Q7), and a serial output for cascading (Q7'). It is commonly used to expand the number of I/O pins available on a microcontroller, enabling control of multiple outputs with a few pins.

    Key Features:


    • 8-bit serial-in, parallel-out shift register
    • 8-bit storage register with tri-state outputs
    • Serial input (DS) and serial output for cascading (Q7')
    • Three-state outputs (Q0-Q7)
    • Low power consumption
    • High-speed operation
    • Cascadable with multiple 74HC595 ICs
    Technical Specifications:
    • Operating Voltage: 2V to 6V
    • Maximum Clock Frequency: 100 MHz (at Vcc = 4.5V to 5.5V)
    • Current Consumption: 80 μA (maximum, at Vcc = 6V)
    • Output Current per Pin: 35 mA (maximum)
    • Total Current through Vcc/GND: 70 mA (maximum)
    • Propagation Delay Time: 23 ns (at Vcc = 5V)
    • Package Types: 16-pin PDIP, SOIC, TSSOP
    • Operating Temperature Range: -40°C to +125°C
    Applications:
    • LED displays
    • Keypad interfaces
    • Data acquisition systems
    • Digital signal processing
    • Memory addressing
    • Control systems
    Usage:
    1. Connection:
      • Connect the Vcc pin to a 5V power supply (or appropriate voltage within the operating range).
      • Connect the GND pin to ground.
      • Connect the serial data input (DS) to the microcontroller’s data output pin.
      • Connect the clock input (SH_CP) and latch input (ST_CP) to the microcontroller’s clock and latch control pins.
      • Connect the parallel outputs (Q0-Q7) to the desired peripheral devices.
      • Use the serial output (Q7') to cascade additional 74HC595 shift registers if needed.
    2. Operation:
      • Send serial data to the DS pin while providing clock pulses to SH_CP.
      • Latch the data to the output pins by providing a pulse to the ST_CP pin.
      • Control multiple 74HC595 ICs in series by connecting the Q7' of one to the DS of the next.
    3. Programming:
      • Write code on the microcontroller to control the shift register.
      • Shift in data bits and latch them to update the outputs as needed.
    Caution:
    • Ensure the supply voltage does not exceed the maximum rated voltage to avoid damage to the IC.
    • Handle the IC carefully to prevent damage from electrostatic discharge (ESD).
    • Avoid exceeding the maximum current ratings to prevent overheating and damage.
    Datasheet: For detailed technical specifications, refer to the 74HC595 Datasheet.
