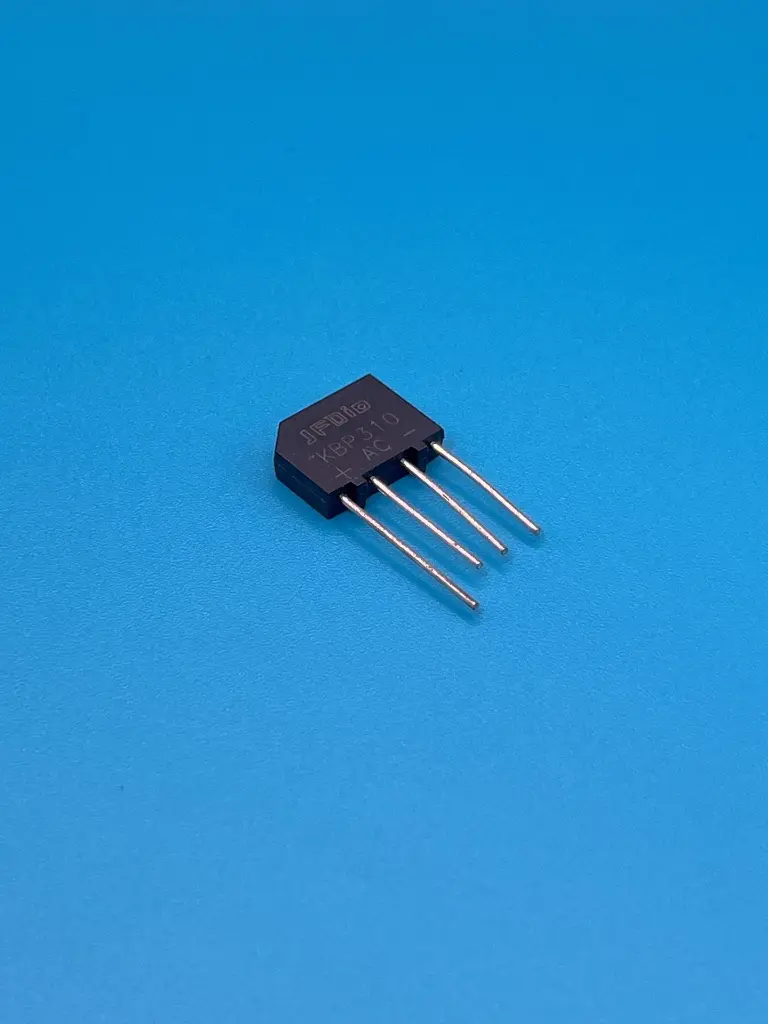

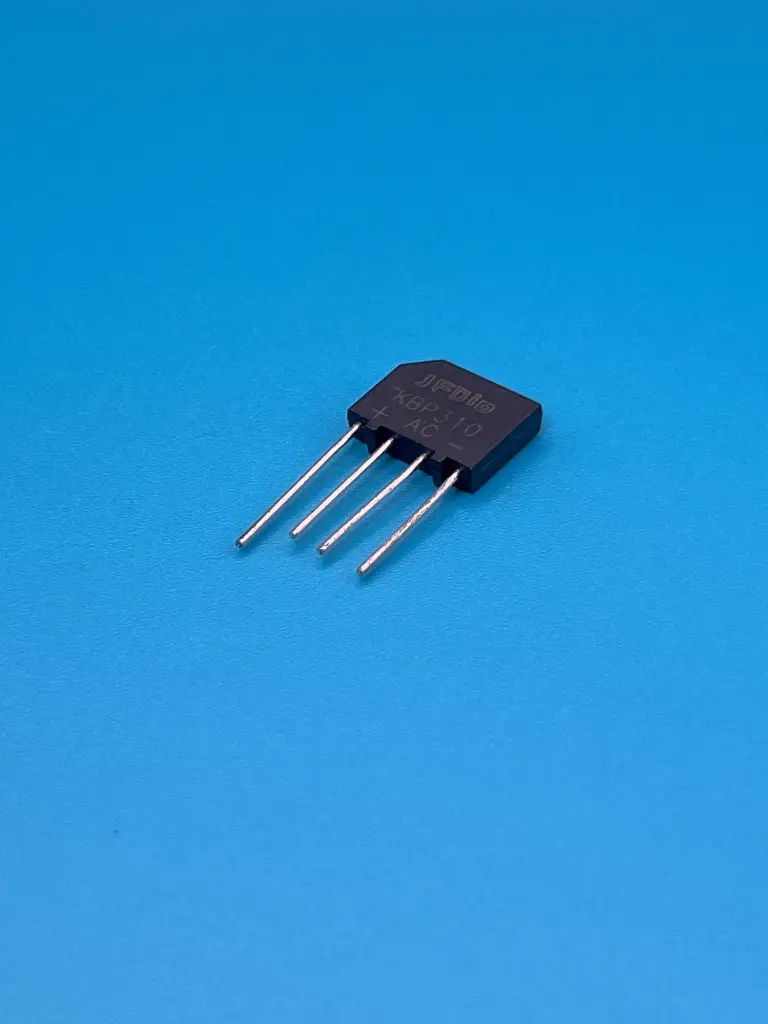

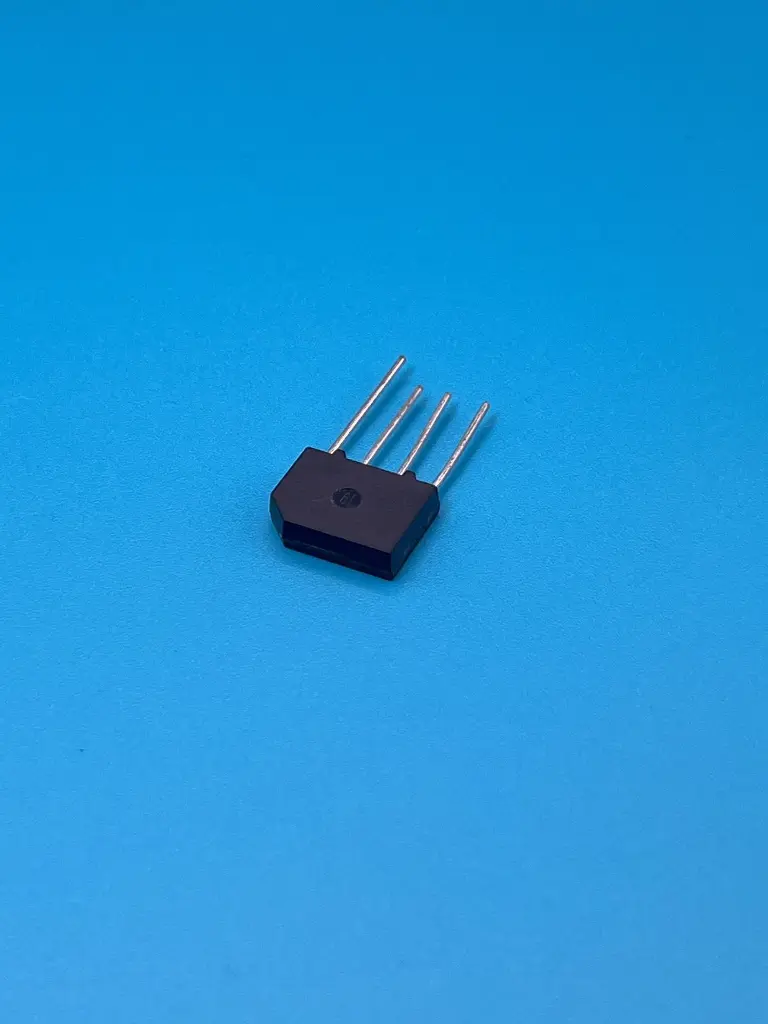

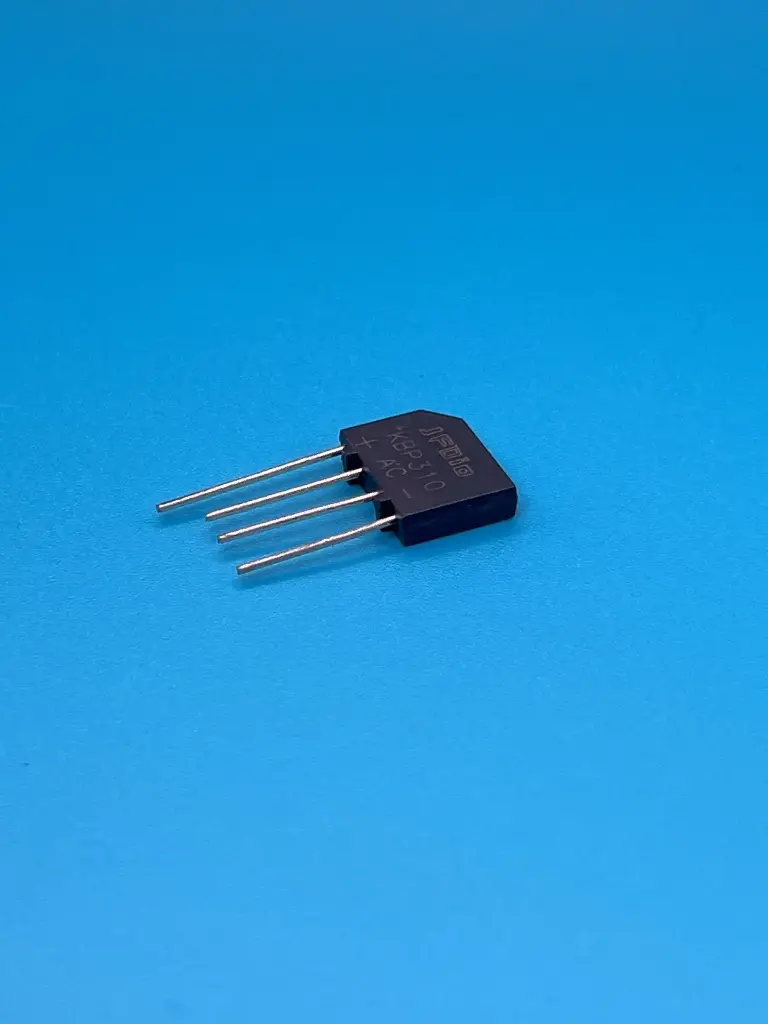

KBP310 Bridge rectifier diode
The KBP310 is a bridge rectifier diode designed to convert alternating current (AC) to direct current (DC). It can handle high current and voltage levels, making it suitable for various power supply applications. This component is commonly used in AC-DC power converters and rectification circuits.
Key Features:
- High current and voltage handling capabilities
- Converts AC to DC efficiently
- Compact package for easy integration
- High reliability and durability
- Type: Bridge Rectifier Diode
- Maximum Forward Voltage: 1.1V @ 3A (typical)
- Maximum Reverse Voltage: 1000V
- Maximum Forward Current: 10A
- Surge Forward Current: 50A (for 8.3ms)
- Operating Temperature Range: -40°C to +100°C
- Package Type: KBP (typically includes four diodes in a single package)
- Mounting Type: Through-hole
- Dimensions: 39mm x 23mm x 14mm (approximately)
- Power Supplies: Used in AC-DC power supply circuits to rectify the AC input.
- Voltage Converters: Converts AC voltage to DC voltage for various applications.
- Electronic Projects: Essential in DIY and prototyping for power rectification.
- Industrial Equipment: Provides reliable rectification in industrial power systems.
