USB to TTL Rs232 cable

Price:

GH¢ 18.00
                          ​ ​ ​ ​ ​ info@hub360.cc     0596764151


    USB to TTL Rs232 cable
    2. Shop
    3. USB to TTL Rs232 cable
    USB multifunction tester with current and voltage detector
    USB multifunction tester with current and voltage detector
    GH¢ 50.00
    GH¢ 50.00
    DSTV Decoder DC jack Adapter
    DSTV Decoder DC jack Adapter
    GH¢ 4.00
    GH¢ 4.00

    USB to TTL Rs232 cable

    https://gh.hub360.cc/web/image/product.template/11932/image_1920?unique=1c4a6b4

    GH¢ 18.00 18.0 GHS GH¢ 18.00

    ₦ 3,300.00

    Not Available For Sale

    (GH¢ 0.00 / Units)

    This combination does not exist.

    Contact Us

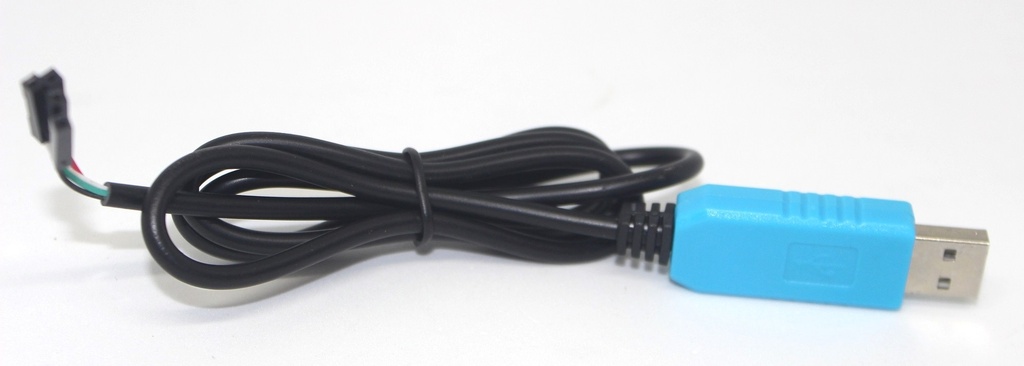

    The USB to TTL RS232 cable is a versatile adapter used to interface between USB ports on computers and TTL (Transistor-Transistor Logic) or RS232 serial communication devices. This cable is commonly used for debugging, programming, and communication with embedded systems and microcontrollers. Key Features:
    • Converts USB signals to TTL or RS232 serial communication
    • Plug-and-play functionality for easy connection
    • Supports a range of baud rates and serial communication parameters
    • Compact and lightweight design for portability
    • Often includes a driver CD or downloadable drivers for installation
    Technical Specifications:
    • Interface:
      • USB Type-A (standard USB connector) to TTL or RS232 serial connector
    • Communication Protocol:
      • TTL Serial (logic levels: 0V and 5V or 3.3V, depending on the module)
      • RS232 Serial (standard signal levels: ±12V)
    • Data Transfer Rate:
      • Supports various baud rates (typically from 300 bps to 115200 bps)
    • Driver Support:
      • Compatible with major operating systems (Windows, macOS, Linux)
      • Drivers may be required for full functionality (usually provided with the cable or downloadable from the manufacturer’s website)
    • Operating Voltage:
      • Typically 5V or 3.3V for TTL logic
    • Cable Length:
      • Usually between 1 to 2 meters (varies by manufacturer)
    Applications:
    • Programming and debugging embedded systems and microcontrollers
    • Serial communication with legacy RS232 devices
    • Connecting microcontroller boards (e.g., Arduino, ESP32) to computers
    • Serial data logging and monitoring
    Usage:
    1. Connect the Cable: Plug the USB connector into the computer’s USB port and the TTL/RS232 connector into the target device.
    2. Install Drivers: If necessary, install the appropriate drivers for the cable to enable communication (refer to the included driver CD or download from the manufacturer’s website).
    3. Configure Communication Parameters: Set up the correct baud rate, data bits, parity, and stop bits in the serial communication software or terminal program.
    4. Establish Communication: Use serial communication software (e.g., PuTTY, Tera Term) to send and receive data between the computer and the connected device.
    Caution:
    • Ensure that the cable is compatible with the voltage levels of the TTL or RS232 device.
    • Follow proper handling and connection procedures to avoid damage to the cable or connected devices.
    • Verify driver compatibility with the operating system to ensure proper functionality.
    Datasheet: For detailed technical specifications, refer to the USB to TTL RS232 Cable Datasheet.
    No Specifications
