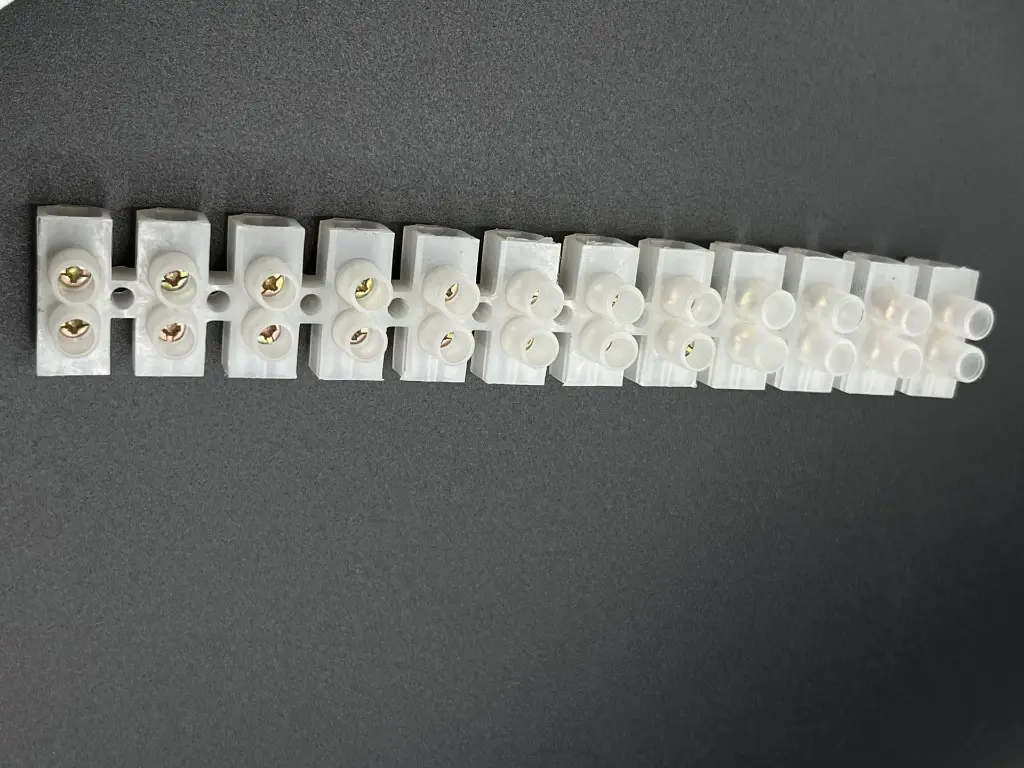

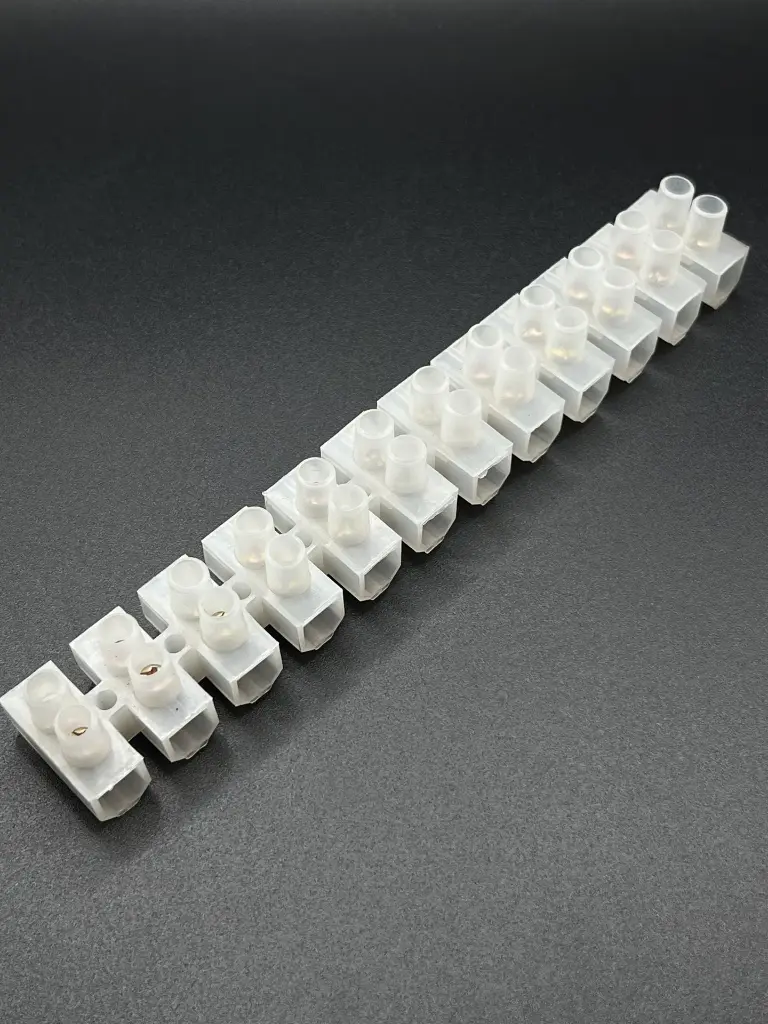

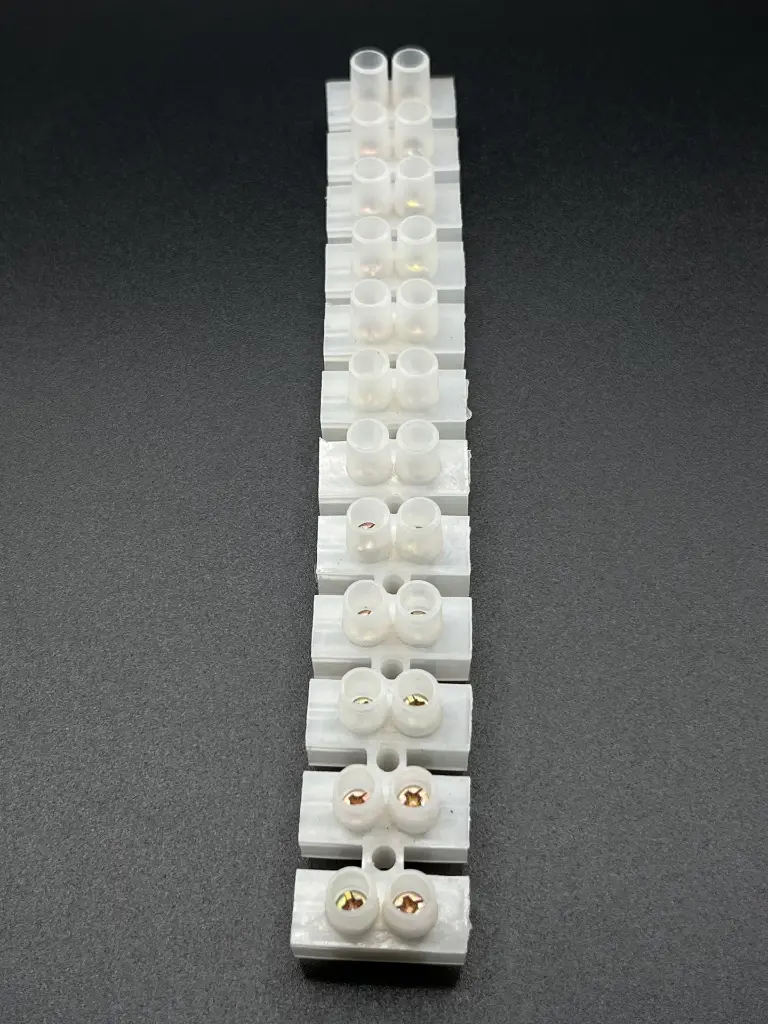

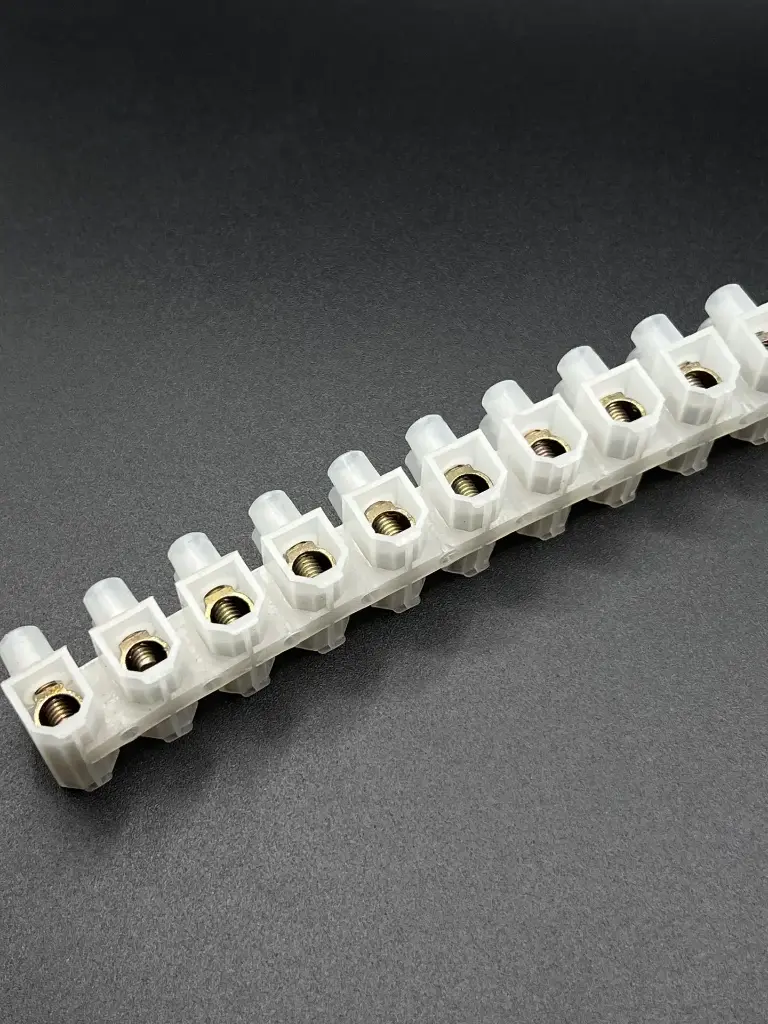

    X3-60A 12bit 60A Terminal block

    https://gh.hub360.cc/web/image/product.template/11959/image_1920?unique=1c4a6b4

    GH¢ 12.00 12.0 GHS GH¢ 12.00

    ₦ 2,400.00

    Not Available For Sale

    (GH¢ 0.00 / Units)

    This combination does not exist.

    Contact Us


    The X3-60A 12bit Terminal Block is a high-current connector designed to facilitate the secure and reliable connection of multiple wires in electrical circuits. This terminal block supports up to 60A current and is suitable for various high-power applications, including industrial machinery, power distribution, and automotive systems. Key Features:
    • High current capacity: Supports up to 60A
    • 12-bit terminal configuration
    • Secure and reliable connections
    • Easy wire insertion and release mechanism
    • Durable construction for long-term use
    • Suitable for high-power applications
    Technical Specifications:
    • Current Rating: Up to 60A
    • Voltage Rating: Typically up to 600V (check specific model datasheet)
    • Number of Terminals: 12
    • Wire Size: Accepts a range of wire gauges (commonly 10 AWG to 22 AWG)
    • Terminal Type: Screw or spring clamp (varies by model)
    • Material: High-quality insulating material (e.g., polyamide or similar)
    • Mounting: DIN rail or panel mount
    • Operating Temperature Range: -40°C to +105°C
    Applications:
    • Industrial machinery
    • Power distribution systems
    • Automotive electrical systems
    • Renewable energy systems (e.g., solar panels)
    • Electrical control panels
    • Heavy-duty appliances
    Usage:
    1. Mounting: Secure the terminal block to a DIN rail or panel, ensuring it is properly aligned and fixed.
    2. Wire Preparation: Strip the insulation from the wire ends to expose the conductive material (length as specified by the terminal block model).
    3. Wire Insertion: Insert the stripped wire ends into the terminal block openings.
    4. Secure Connection: Tighten the screws or engage the spring clamps to secure the wires in place.
    5. Verification: Ensure all connections are tight and secure to prevent loose wires and potential short circuits.
    6. Inspection: Regularly inspect connections for signs of wear or damage, and re-tighten if necessary.
    Caution:
    • Ensure the terminal block is rated for the specific current and voltage of your application.
    • Follow proper safety procedures when working with high-current electrical systems.
    • Verify all connections are secure to prevent electrical faults.
    • Regularly inspect the terminal block for any signs of wear or damage.
