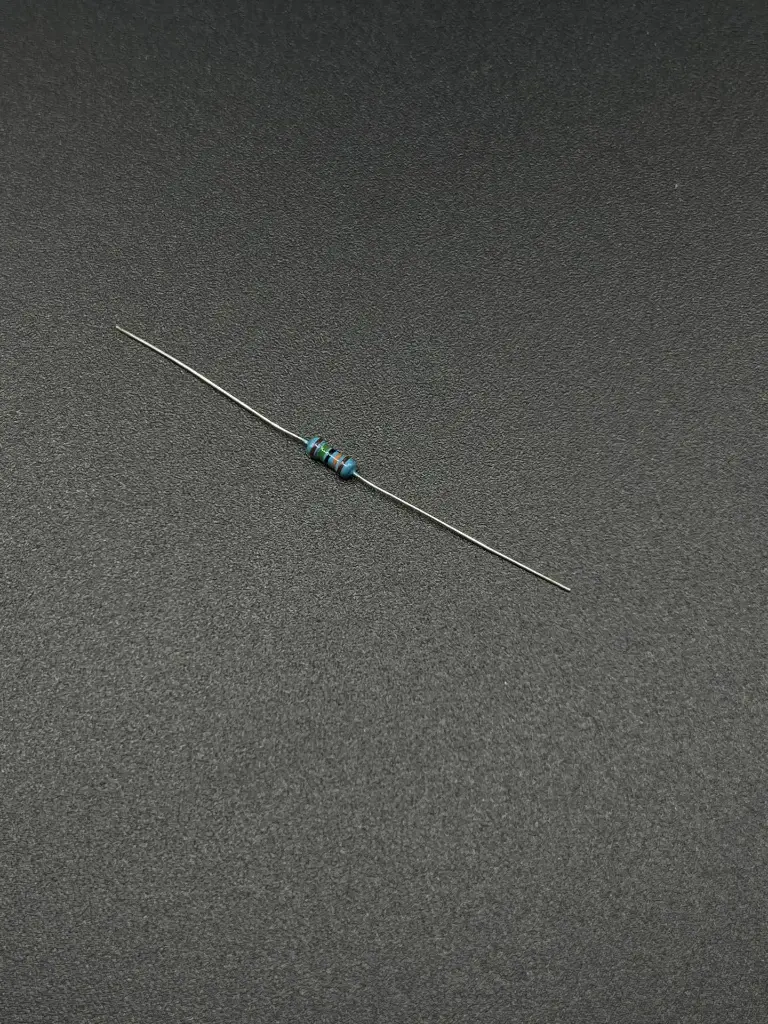

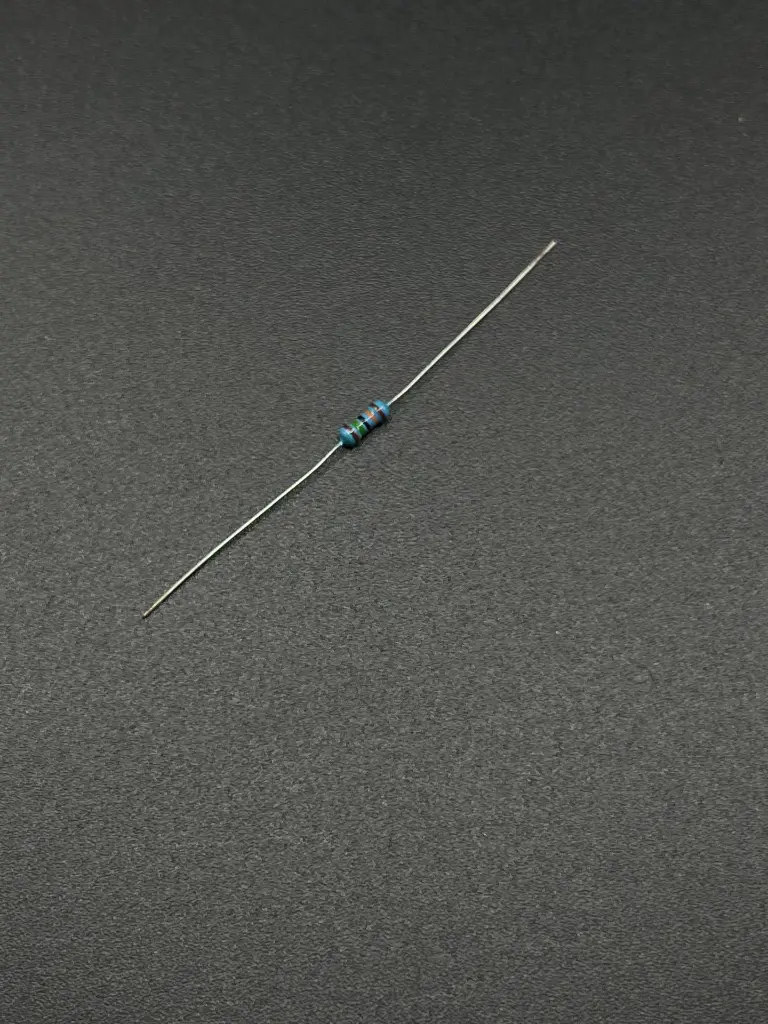

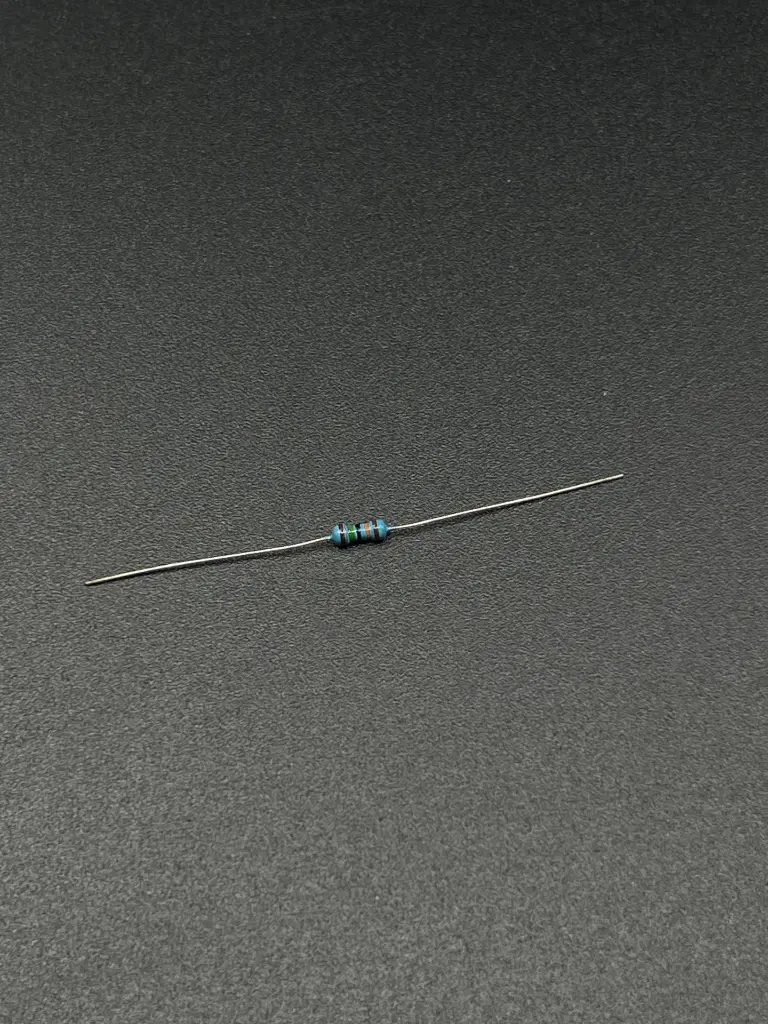

150KΩ 1/4W resistor
The 150KΩ 1/4W resistor is a fixed resistor designed to provide a specific resistance of 150,000 ohms in electronic circuits. With a power rating of 0.25 watts, it is used in applications where precise resistance is required to control current and voltage.
Key Features:
- Resistance value: 150KΩ (150,000 ohms)
- Power rating: 1/4 watt (0.25W)
- Tolerance: ±5% (standard) or ±1% (precision)
- Type: Fixed resistor
- Lead type: Axial leads for through-hole mounting
- Resistance: 150KΩ
- Power Rating: 0.25W
- Tolerance: ±5% (standard), ±1% (precision)
- Operating Temperature Range: -55°C to +155°C
- Temperature Coefficient: ±200 ppm/°C (typical)
- Package Type: Axial through-hole
- Voltage dividers
- Signal conditioning
- Biasing circuits
- Pull-up/pull-down resistors
- General electronic circuits
- Insert the resistor into the circuit as specified by the design.
- Place the leads into the circuit board holes and solder them securely.
- Check for correct placement and connections to ensure circuit functionality.
- Test the circuit to verify operation with the resistor in place.
- Do not exceed the resistor’s power rating to prevent overheating.
- Handle with care to avoid damaging the resistor or its leads.
- Confirm correct resistor placement and orientation in the circuit.
