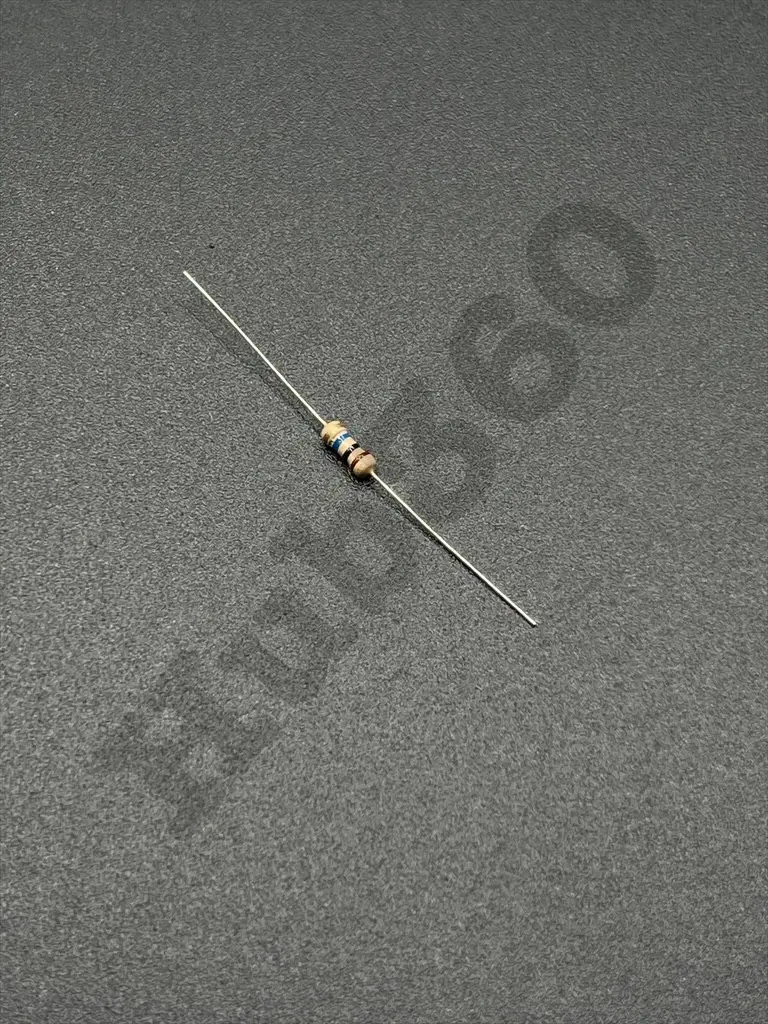

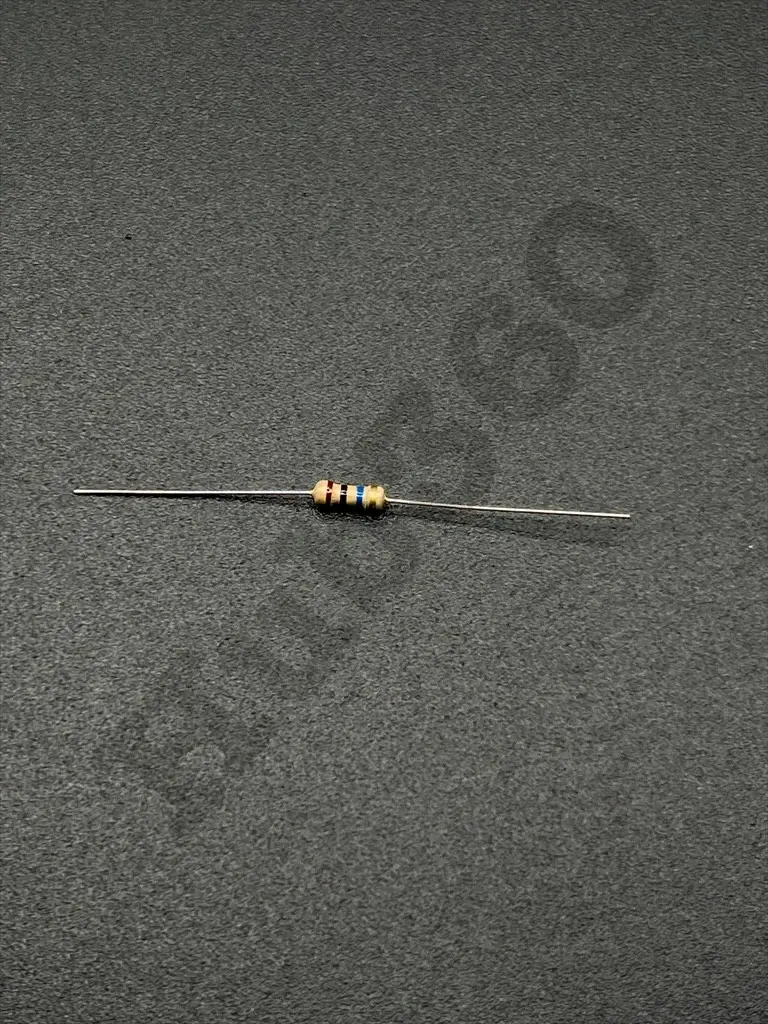

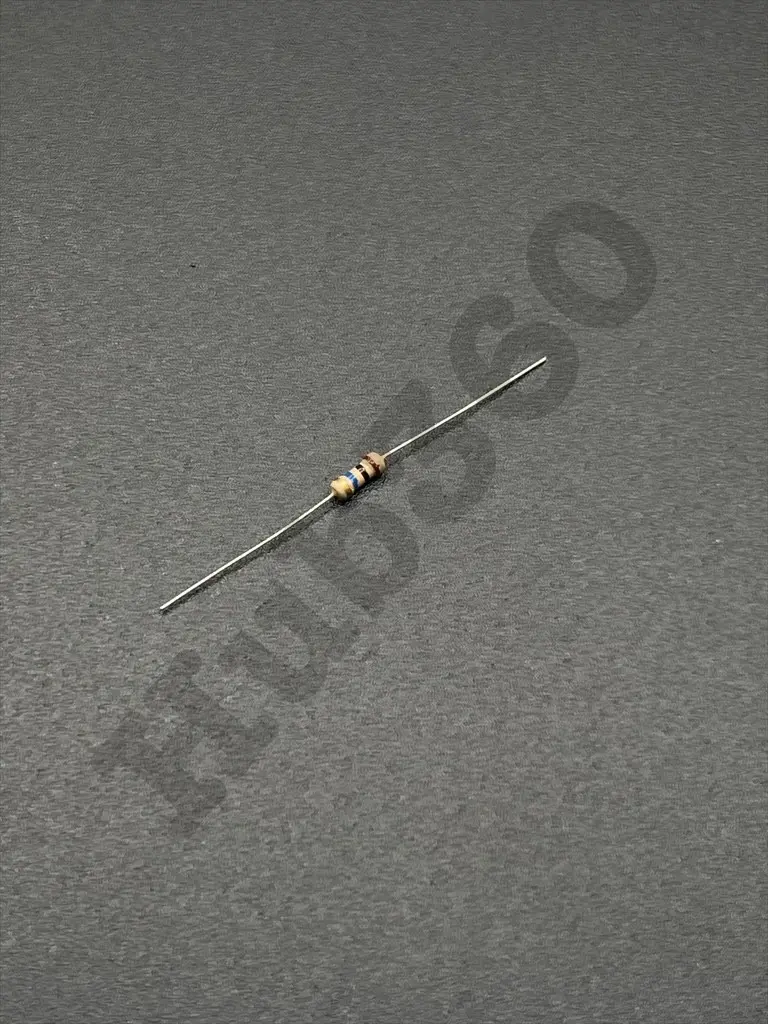

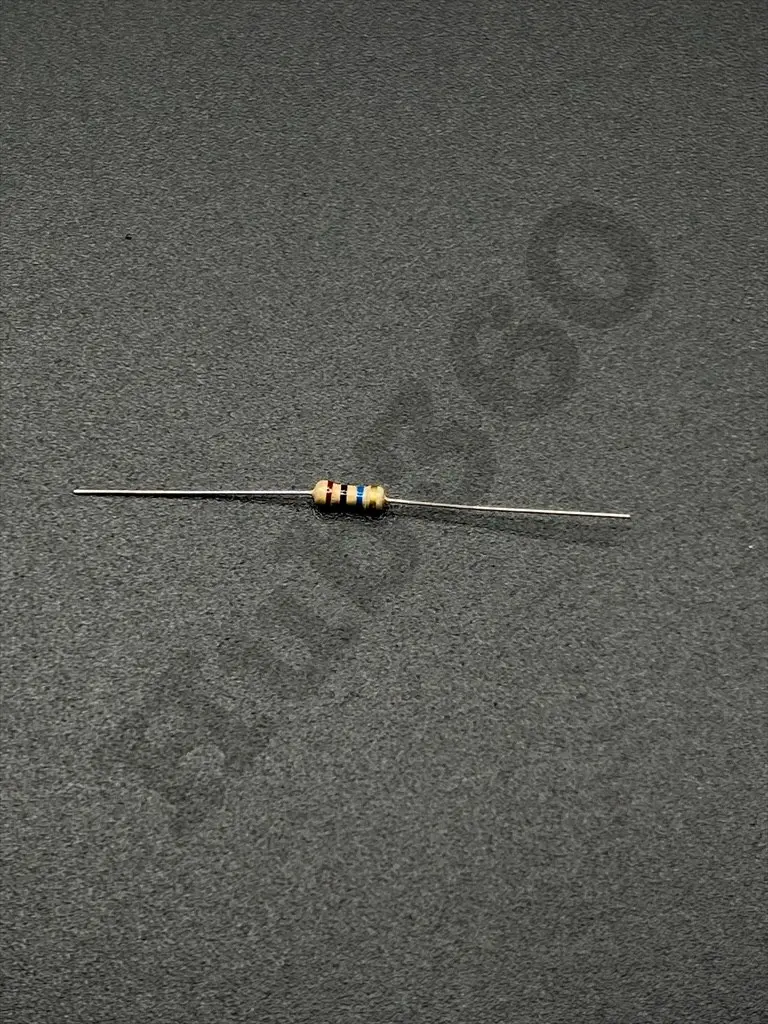

10MΩ 1/4W resistor
A 10MΩ (megohms) 1/4 watt resistor is a high-value resistor used in electronic circuits for tasks that require high resistance. It can be used in applications such as signal processing, high-impedance measurements, and voltage divider circuits.
Key Features:
- Resistance: 10MΩ (10,000,000 ohms)
- Power Rating: 1/4W (0.25 watts)
- Tolerance: ±5% (commonly), with ±1% available for precision applications
- Temperature Coefficient: Typically ±100ppm/°C or ±200ppm/°C
- Resistance: 10MΩ
- Power Rating: 1/4W (0.25 watts)
- Tolerance: ±5% (J), ±1% (F), depending on type
- Temperature Coefficient: ±100ppm/°C or ±200ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Body Size: Typically through-hole with axial leads (1/4W size)
- Material: Metal film, carbon film, or other high-resistance materials
- High-Impedance Circuits: Used in circuits requiring high resistance values.
- Voltage Dividers: Creates high resistance values in voltage divider circuits.
- Signal Processing: Used in signal conditioning and measurement circuits.
- Biasing: Provides precise resistance for setting bias conditions in electronic circuits.
- Placement: Insert the resistor into the appropriate slots on the circuit board.
- Insertion: Pass the leads through the board’s holes or slots.
- Soldering: Solder the leads to the circuit board and trim any excess.
- Verification: Measure the resistor with a multimeter to ensure it meets the specified resistance.
- Power Dissipation: Ensure the resistor’s power rating (0.25 watts) is not exceeded to avoid overheating.
- High Resistance: Be mindful of the resistor’s high resistance value and ensure proper handling to avoid damage.
- Handling: Handle the resistor carefully to avoid damage, especially given its high resistance value.
