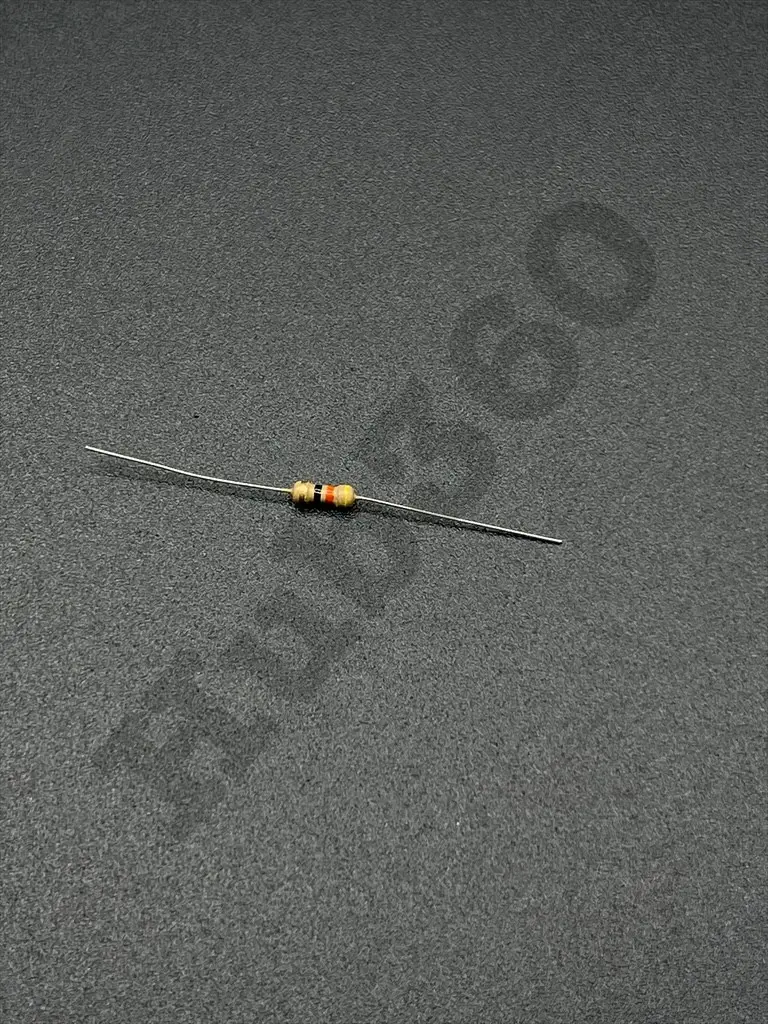

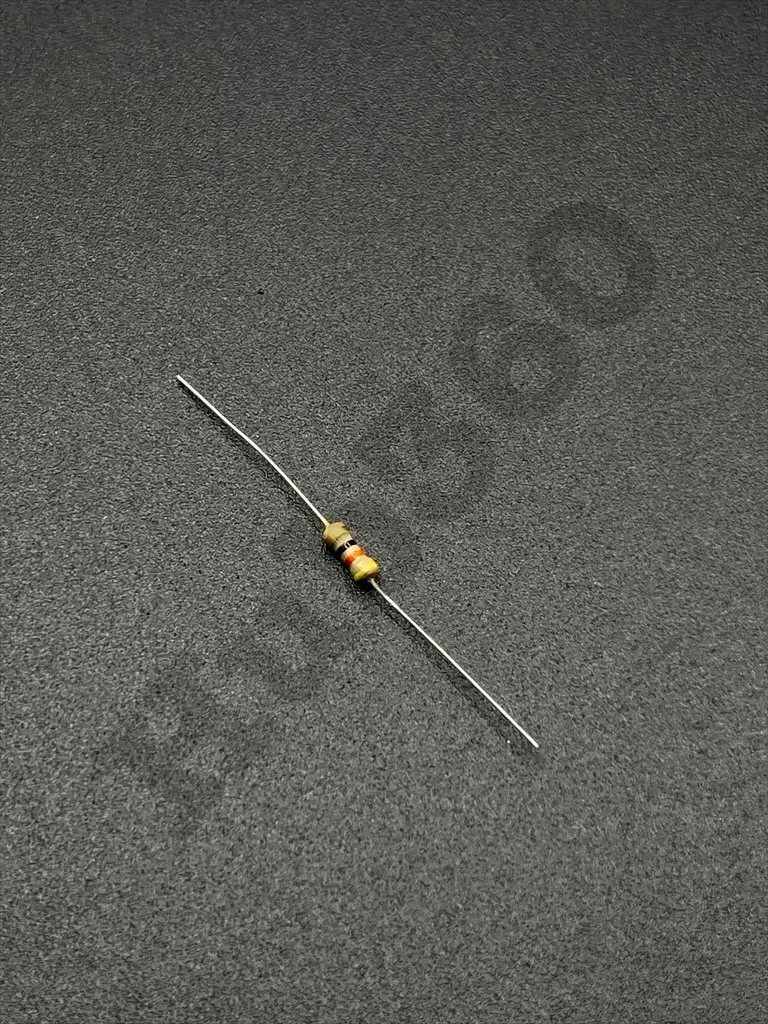

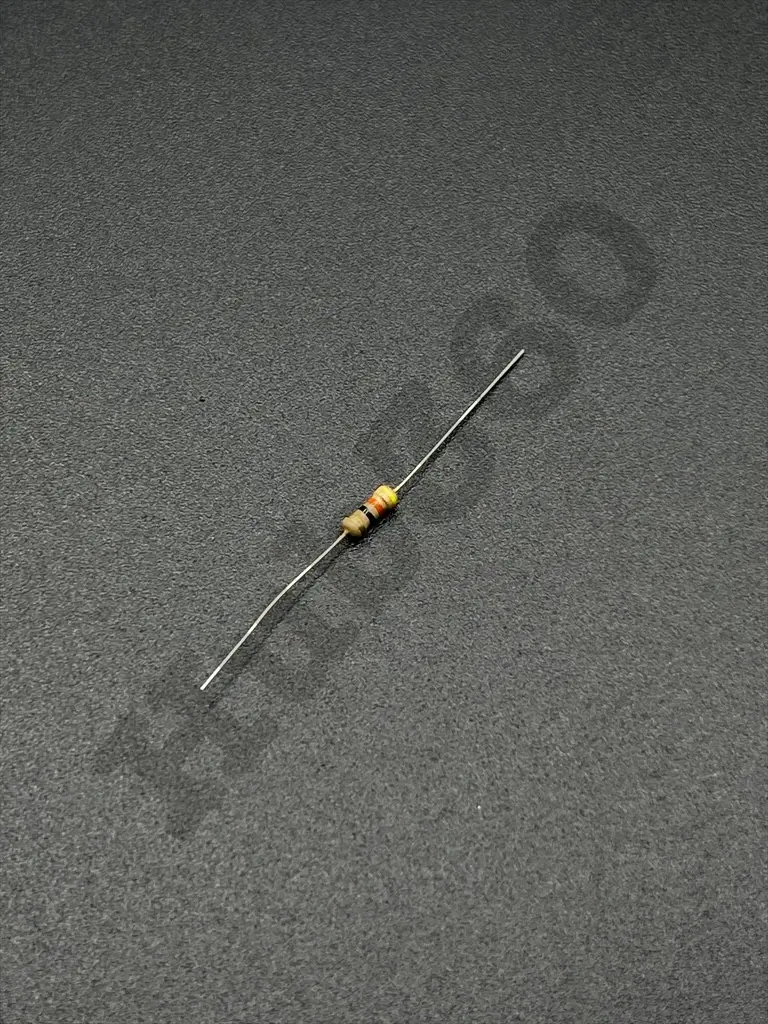

43Ω 1/4W resistor
The 43Ω 1/4W Resistor is a fixed resistor designed for use in various electronic circuits requiring a specific resistance value. With a resistance of 43 ohms and a power rating of 0.25 watts, this resistor is suitable for applications such as signal conditioning, current limiting, and voltage dividers.
Key Features:
- Resistance value of 43Ω
- Power rating of 1/4 watt (0.25W)
- Tolerance of ±5%
- Axial leaded design for easy through-hole mounting
- Constructed with high-quality carbon film or metal film for reliability
- Color-coded bands for quick identification
- Resistance: 43Ω
- Power Rating: 1/4W (0.25W)
- Tolerance: ±5%
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Body Length: 6.3mm
- Body Diameter: 2.3mm
- Lead Diameter: 0.5mm
- Lead Length: 25mm (each side)
- Material: Carbon film or metal film
- Voltage dividers
- Current limiting circuits
- Biasing resistors for transistors
- Signal conditioning circuits
- Filter networks
- Feedback circuits in amplifiers
- Determine the required resistance value for your circuit.
- Identify the resistor value using the color-coded bands.
- Insert the resistor leads into the appropriate holes on the PCB or breadboard.
- Solder the leads in place if using a PCB, or ensure firm contact in a breadboard.
- Trim excess lead length if necessary.
- Ensure the resistor's power rating is not exceeded to avoid overheating and potential failure.
- Verify the resistor's value and tolerance before use in precision circuits.
- Handle with care to avoid damage to the resistor's body and leads.
