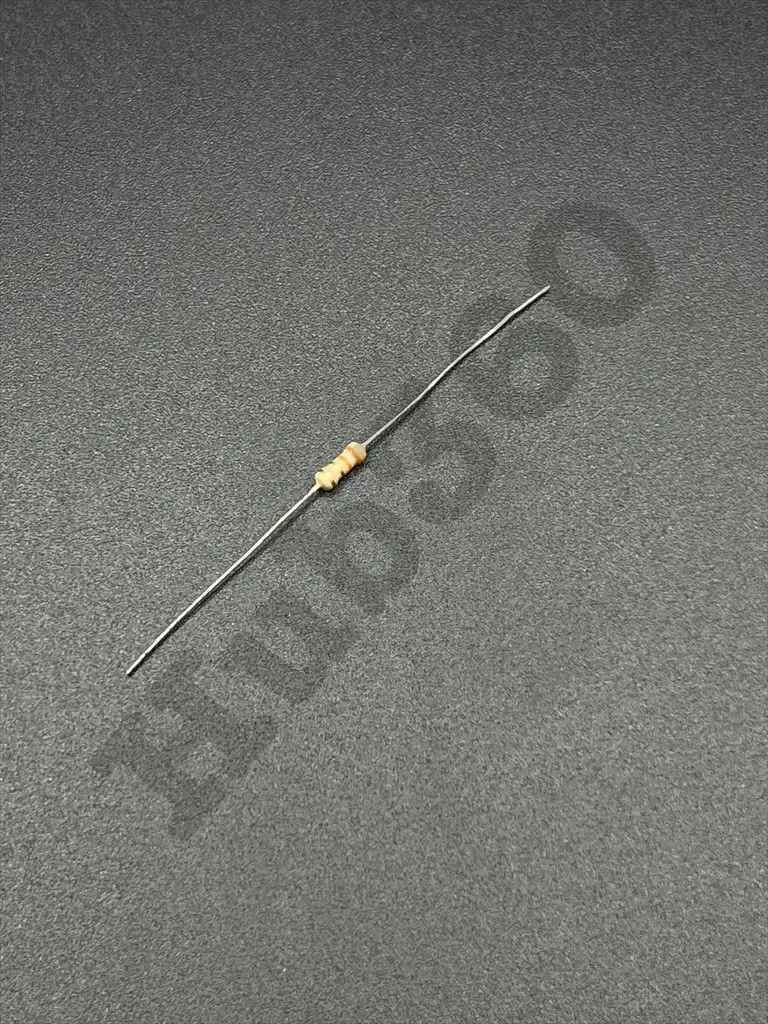

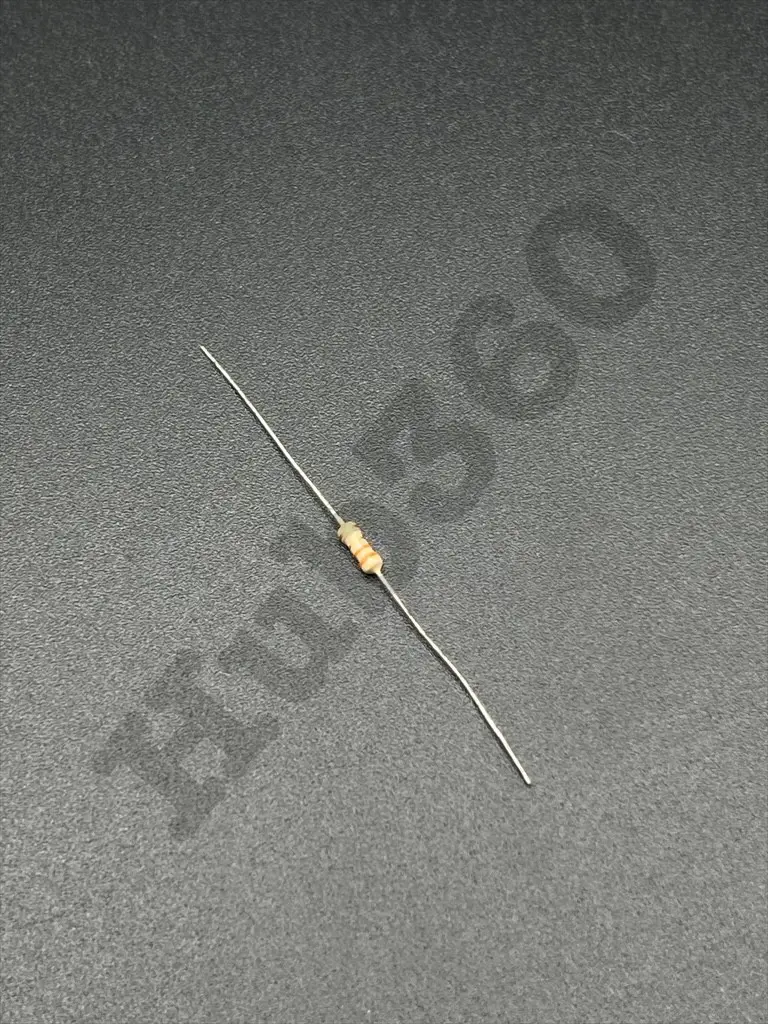

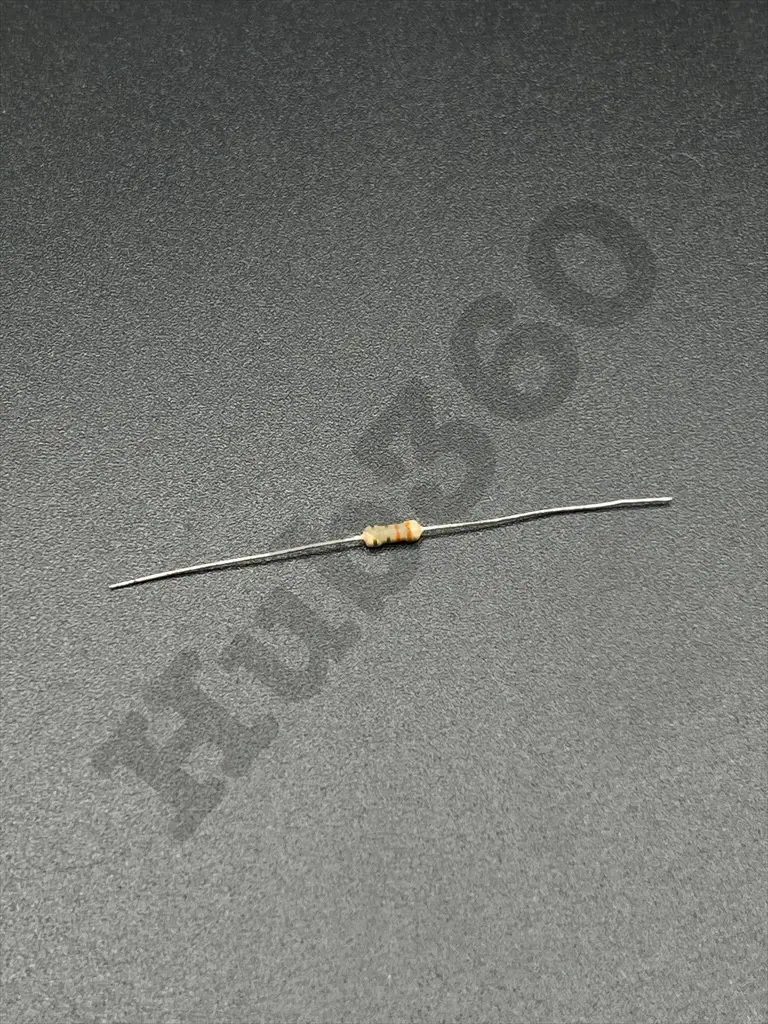

    3.3Ω 1/4W resistor

    https://gh.hub360.cc/web/image/product.template/12114/image_1920?unique=1c4a6b4

    GH¢ 0.20 0.2 GHS GH¢ 0.20

    ₦ 20.00

    Not Available For Sale

    (GH¢ 0.00 / Units)

    This combination does not exist.


    A 3.3Ω (ohm) 1/4 watt resistor is a fixed resistor with a resistance value of 3.3 ohms and a power dissipation rating of 0.25 watts (1/4W). It is used in electronic circuits for current limiting, voltage division, and other functions requiring precise resistance. Key Features:
    • Resistance: 3.3Ω
    • Power Rating: 1/4W (0.25 watts)
    • Tolerance: ±5% (commonly), with ±1% available for precision types
    • Temperature Coefficient: Typically ±100ppm/°C or ±200ppm/°C for general-purpose resistors
    Technical Specifications:
    • Resistance: 3.3Ω
    • Power Rating: 1/4W (0.25 watts)
    • Tolerance: ±5% (J), ±1% (F), depending on the specific resistor type
    • Temperature Coefficient: ±100ppm/°C or ±200ppm/°C
    • Operating Temperature Range: -55°C to +155°C
    • Body Size: Typically through-hole with axial leads (1/4W size)
    • Material: Carbon film, metal film, or metal oxide, depending on the type
    Applications:
    • Current Limiting: Used to control the current flowing through a circuit, protecting components from excessive current.
    • Voltage Division: Employed in voltage divider circuits to create specific voltage levels.
    • Biasing: Used in transistor biasing circuits to set the operating point.
    • Signal Conditioning: Adjusts signal levels in various signal processing applications.
    • LED Protection: Limits current through LEDs to prevent damage.
    Usage:
    1. Placement: Identify the correct location on the circuit board.
    2. Insertion: Insert the leads of the resistor into the appropriate holes in the PCB.
    3. Soldering: Solder the leads to the PCB pads and trim excess leads.
    4. Verification: Check the resistance with a multimeter to ensure proper installation.
    Caution:
    • Power Dissipation: Ensure the resistor is not subjected to more than 0.25 watts to prevent overheating.
    • Voltage Rating: Verify that the voltage across the resistor does not exceed its rating.
    • Handling: Handle carefully to avoid physical damage to the resistor.
