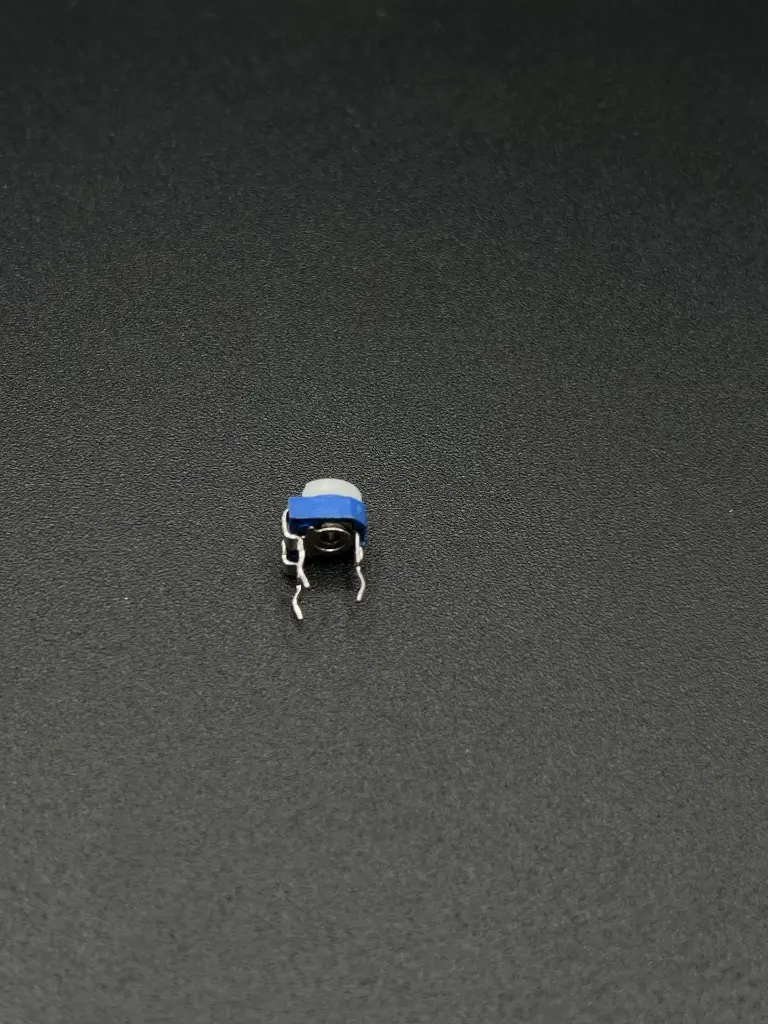

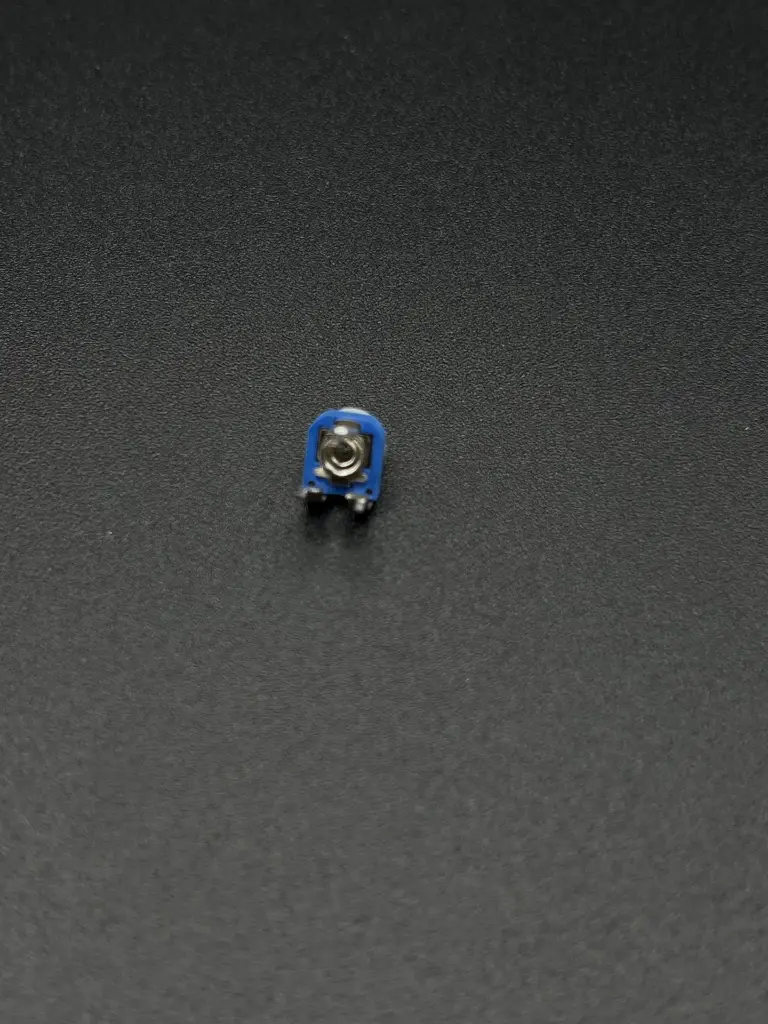

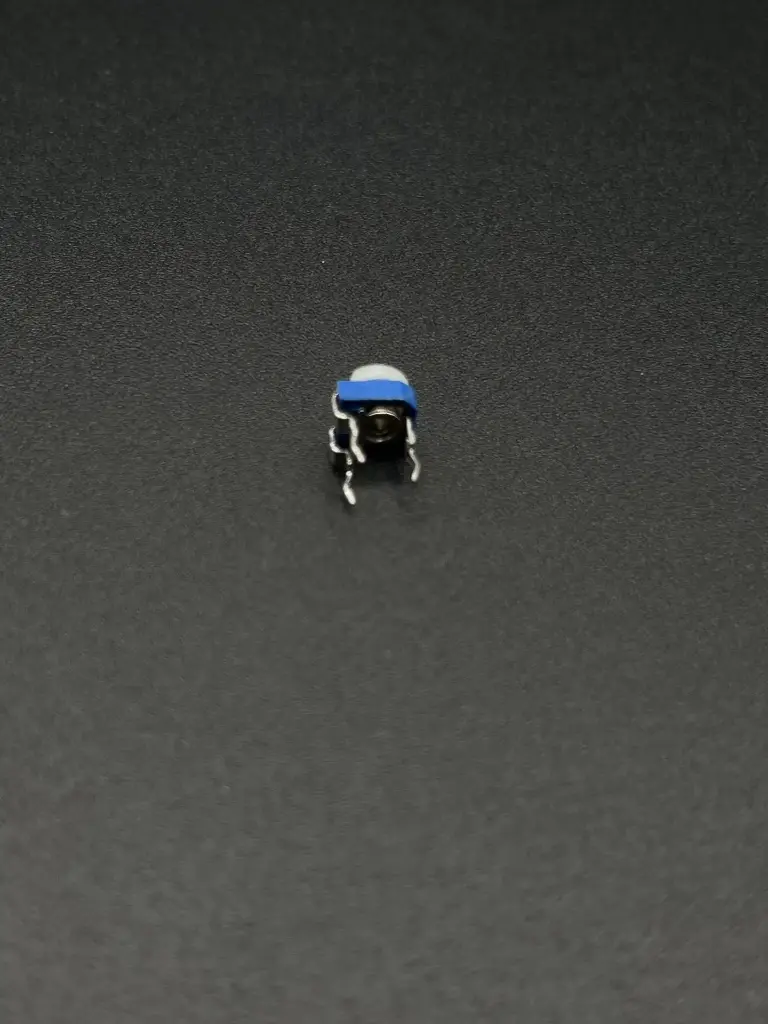

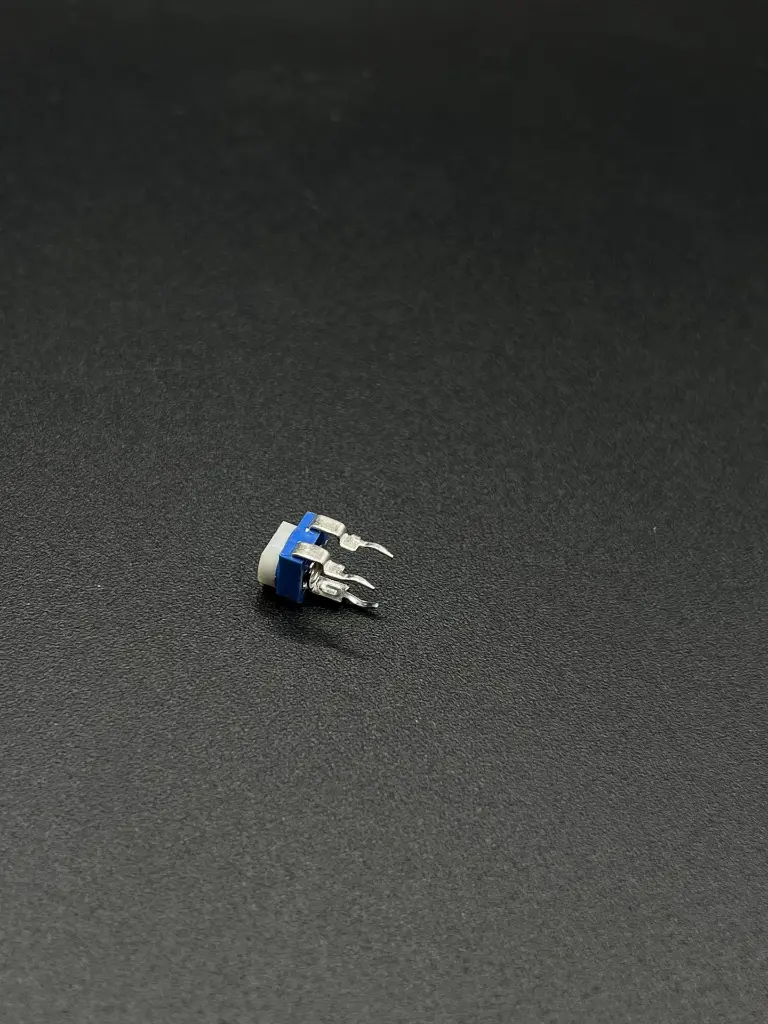

504 500K ohm Variable Resistor
The 504 500K ohm variable resistor, also known as a potentiometer, is a versatile electronic component used to adjust resistance in a circuit. This device features a three-terminal design with an adjustable middle terminal, allowing for precise control over resistance values from 0 to 500K ohms. It is commonly used in applications requiring fine-tuning and calibration, such as audio controls, sensors, and signal conditioning.
Key Features:
- Adjustable resistance up to 500K ohms
- Three-terminal design for flexible usage
- High precision and reliability
- Suitable for fine-tuning and calibration purposes
- Available in various configurations (rotary, linear)
- Resistance Range: 0 - 500K ohms
- Power Rating: Typically 0.25W (1/4W)
- Tolerance: ±20% (typical)
- Temperature Coefficient: ±100ppm/°C (typical)
- Shaft Type: Knurled, slotted, or smooth
- Mounting Type: Through-hole
- Volume control in audio equipment
- Tuning and calibration in electronic circuits
- Adjustable power supplies
- Sensor adjustments
- Signal conditioning
- Solder the three terminals to the appropriate points in the circuit.
- Rotate or slide the control to adjust the resistance.
- Use a multimeter to measure the resistance if precise adjustments are needed.
- Do not exceed the rated power to avoid damage.
- Handle with care to avoid damaging the resistive element.
- Ensure proper mounting to prevent mechanical stress.
