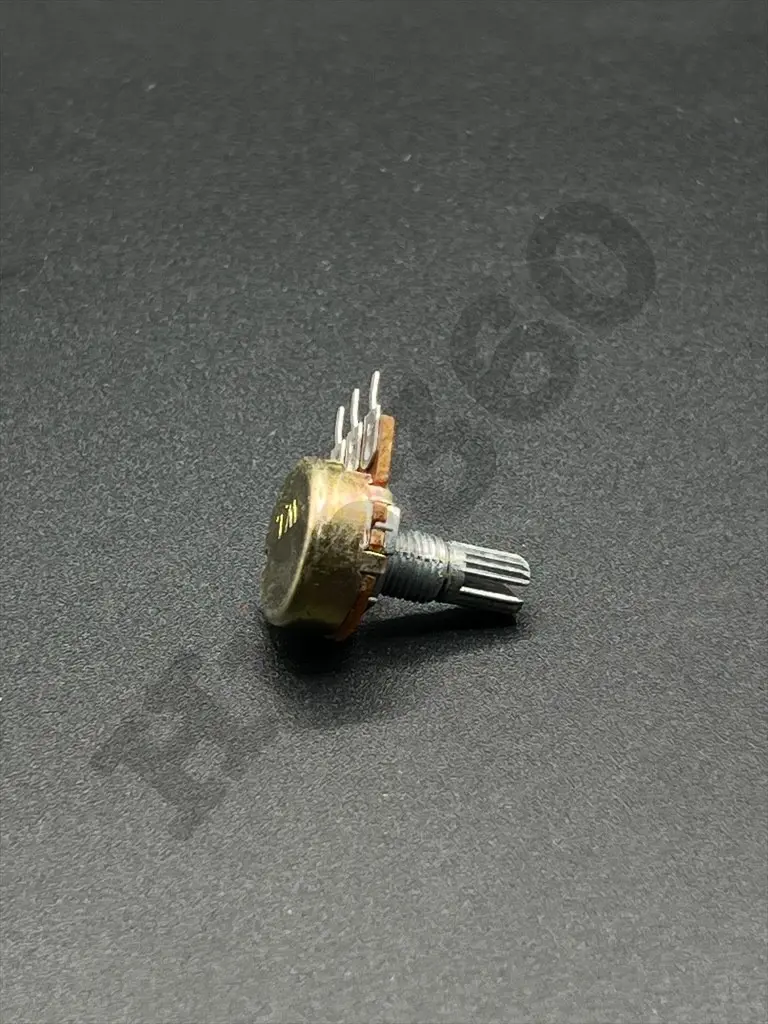

20KΩ Potentiometer
The 20KΩ Potentiometer is a variable resistor used to adjust voltage or current within a circuit. With a resistance range of 20 kilohms, this component allows for fine-tuning and calibration of electronic devices. It features a three-terminal design, enabling it to act as a voltage divider or variable resistor.
Key Features:
- Resistance: 20KΩ (20,000Ω)
- Adjustable resistance with a rotating or sliding mechanism
- High precision and reliability
- Typically used in tuning and calibration applications
- Available in different forms such as rotary or linear
- Resistance Value: 20KΩ (20,000Ω)
- Tolerance: ±10%
- Power Rating: Typically 0.5W to 1W
- Adjustment Type: Rotary or linear
- Package Type: Through-hole
- Volume controls in audio equipment
- Brightness and contrast adjustments in displays
- Calibration of electronic circuits
- Variable voltage dividers
- Tuning and adjusting circuit parameters
- Integrate the potentiometer into the circuit according to the design requirements.
- Adjust the resistance by turning the knob or sliding mechanism.
- Verify that the resistance range meets the circuit’s needs.
- Avoid exceeding the maximum power rating to prevent damage.
- Ensure proper handling to avoid mechanical damage.
- Regularly check for wear and tear in high-use applications.
