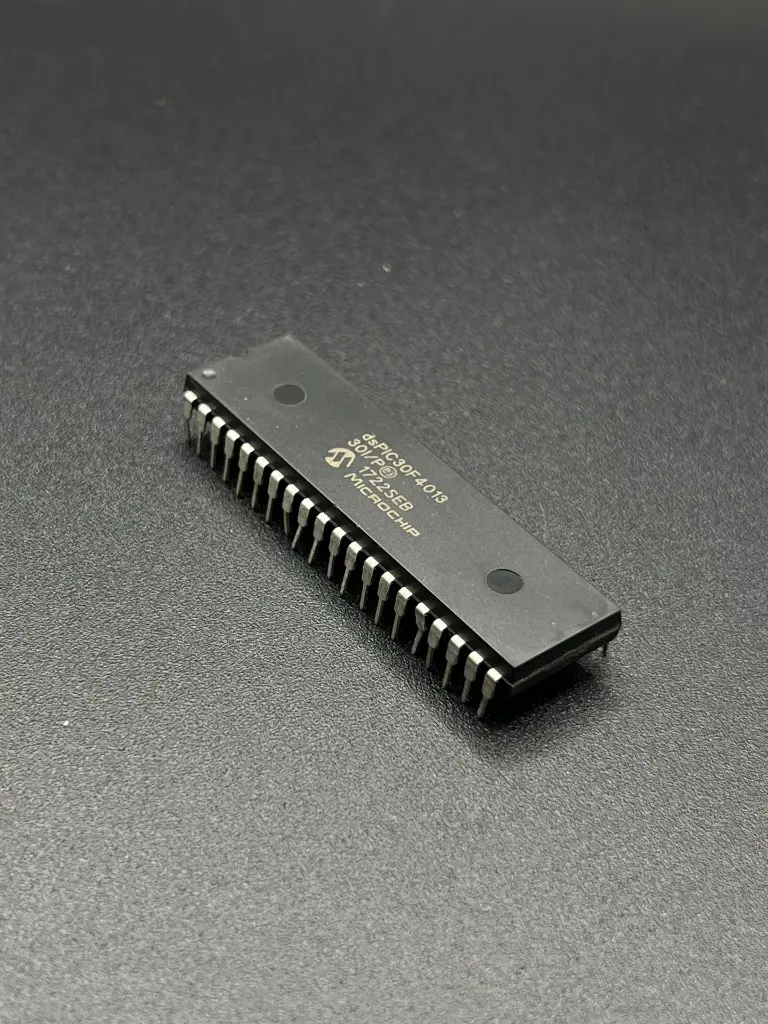

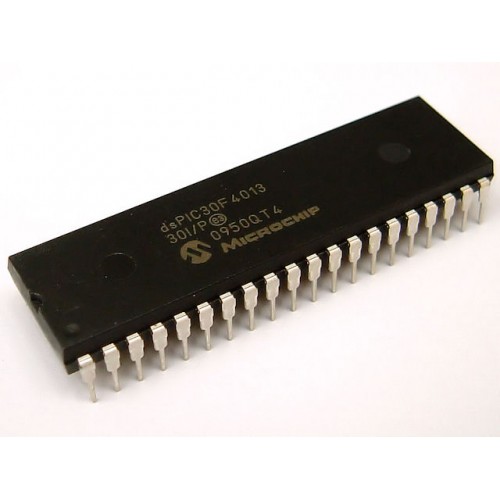

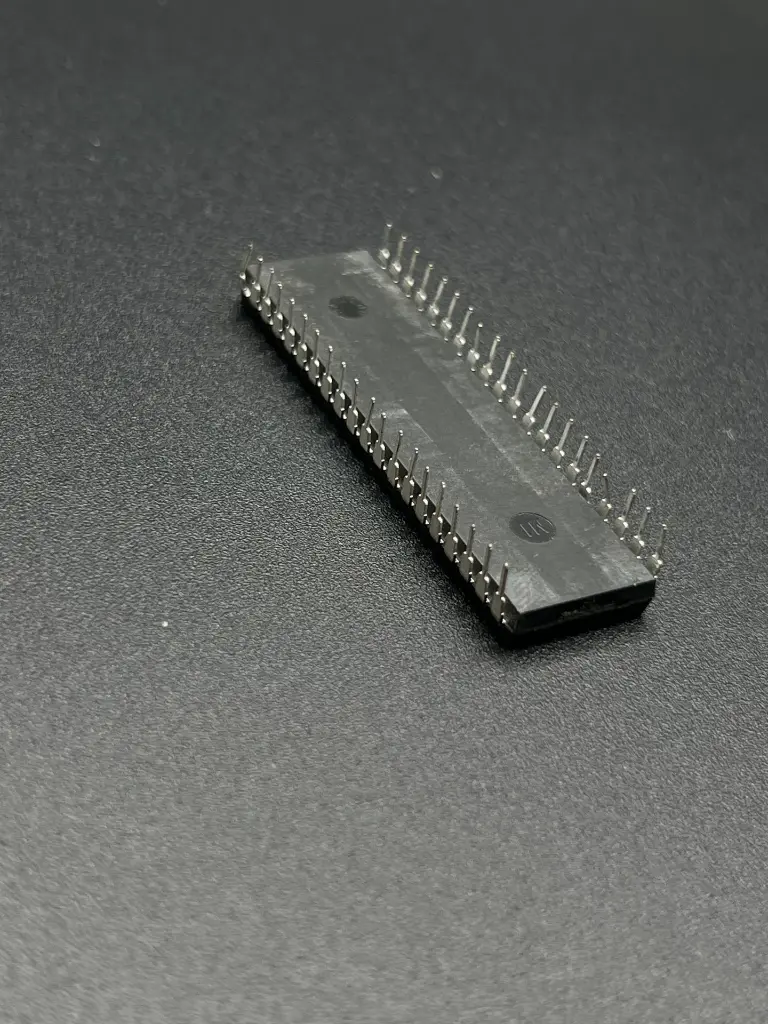

dsPIC30F4013

The dsPIC30F4013 is a 16-bit digital signal controller (DSC) from Microchip Technology, designed for high-performance embedded applications. It combines the capabilities of a microcontroller with advanced digital signal processing (DSP) features, making it suitable for applications requiring high-speed computation and precise control. With its robust set of peripherals and high processing power, it is ideal for complex control and signal processing tasks in various industries. Key Features:

• 16-bit microcontroller with DSP capabilities
• 40 MIPS (Million Instructions Per Second) performance
• 128 KB Flash memory for program storage
• 8 KB SRAM for data storage
• 4 KB EEPROM for non-volatile data storage
• High-speed PWM (Pulse Width Modulation) modules
• Integrated ADC (Analog-to-Digital Converter) with 10-bit resolution
• Multiple communication interfaces including UART, SPI, and I2C
• Timer modules for precise timing and control
• Enhanced PWM and capture/compare modules

Technical Specifications:

• Package Type: 64-pin TQFP (Thin Quad Flat Package)
• Operating Voltage: 3.0V to 3.6V
• Clock Speed: Up to 40 MHz
• Flash Memory: 128 KB
• SRAM: 8 KB
• EEPROM: 4 KB
• I/O Pins: Up to 52
• Timers: 2 Timer1 modules, 2 Timer2 modules
• ADC: 10-bit, up to 16 channels
• PWM: Up to 6 PWM channels
• Operating Temperature Range: -40°C to +125°C

Applications:

• Motor control systems
• Power electronics and inverters
• Industrial automation and process control
• Digital signal processing (DSP) applications
• Automotive control systems
• Consumer electronics and appliances

Usage:

1. Program the dsPIC30F4013 using a compatible programmer or development kit.
2. Connect external peripherals and sensors to the microcontroller’s I/O pins and communication interfaces.
3. Configure the microcontroller’s settings and features via software using MPLAB X IDE and XC16 compiler.
4. Integrate the microcontroller into your electronic circuit for complex control and signal processing tasks.

Caution:

• Ensure proper handling to avoid damage from electrostatic discharge (ESD).
• Verify correct power supply voltage and connections before powering the device.
• Follow the manufacturer’s guidelines for programming and operational configuration.

Datasheet: For detailed technical specifications, refer to the dsPIC30F4013 Datasheet.
