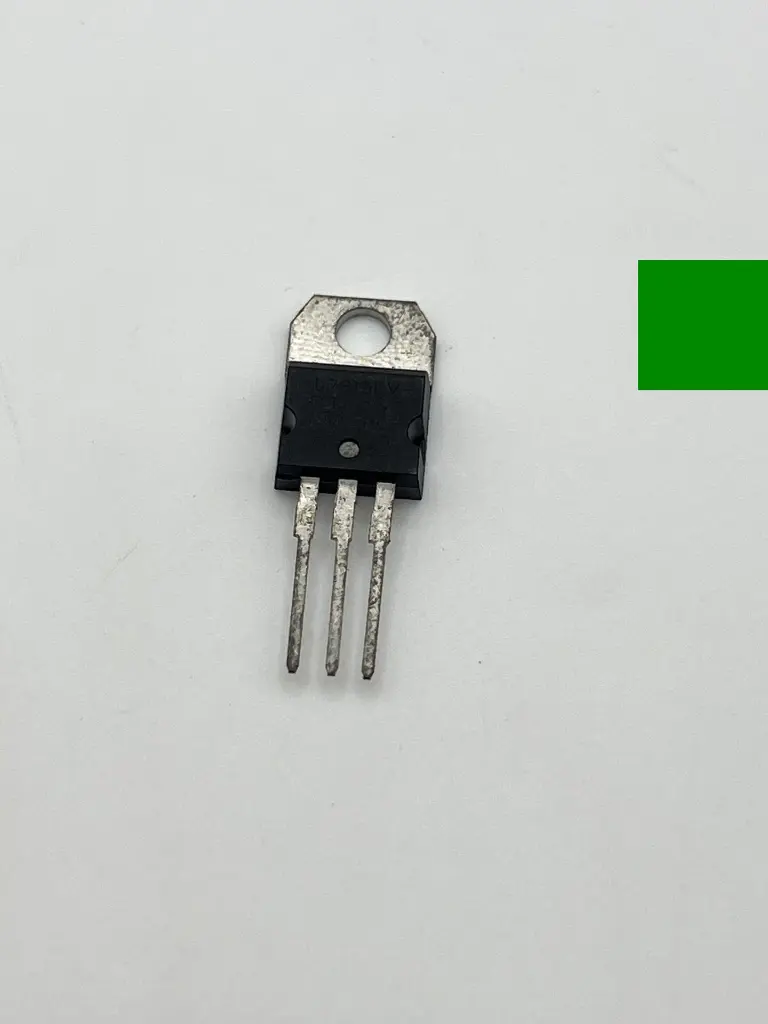

L7815
The L7815 is a three-terminal positive voltage regulator that provides a fixed output of +15V. This regulator is designed to deliver a stable +15V output from a higher input voltage source, making it suitable for various electronic applications requiring a regulated positive voltage. It is capable of handling up to 1.5A of current and includes built-in protections against thermal and short-circuit conditions.
Key Features:
- Fixed positive output voltage of +15V
- Capable of delivering up to 1.5A of current
- High voltage regulation with minimal dropout
- Integrated thermal overload and short-circuit protection
- Simple to use with minimal external components
- Ideal for analog and digital circuit power requirements
- Output Voltage: +15V
- Maximum Output Current: 1.5A
- Input Voltage Range: Up to +35V
- Dropout Voltage: 2V (typical)
- Line Regulation: 0.01% (typical)
- Load Regulation: 0.1% (typical)
- Package Type: TO-220, D2PAK
- Positive voltage power supplies
- Voltage regulation in analog and digital circuits
- Power management in electronic devices
- Battery-operated circuits requiring +15V
- Connect the positive input voltage to the input terminal (IN).
- Connect the output terminal (OUT) to the load or circuit requiring +15V.
- Ensure the ground terminal (GND) is connected to the system ground.
- Use a heatsink if necessary to handle thermal dissipation, especially under high load conditions.
- Do not exceed the maximum input voltage rating.
- Ensure proper heat dissipation to prevent overheating.
- Verify correct polarity to avoid damage to the regulator and connected components.
