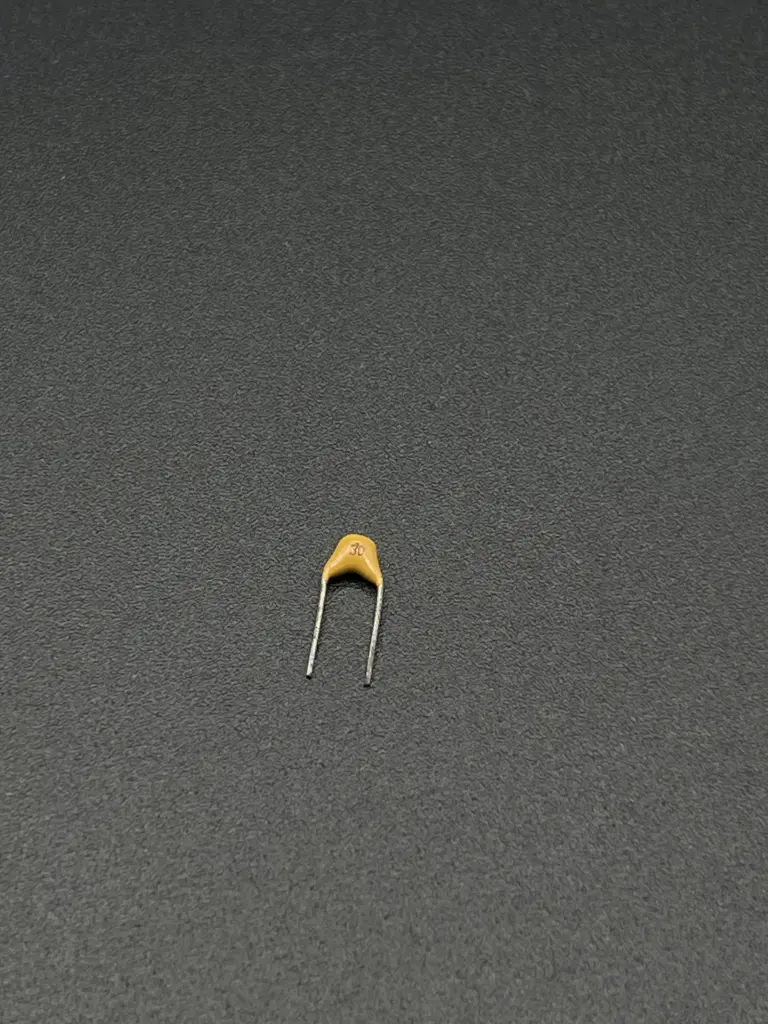

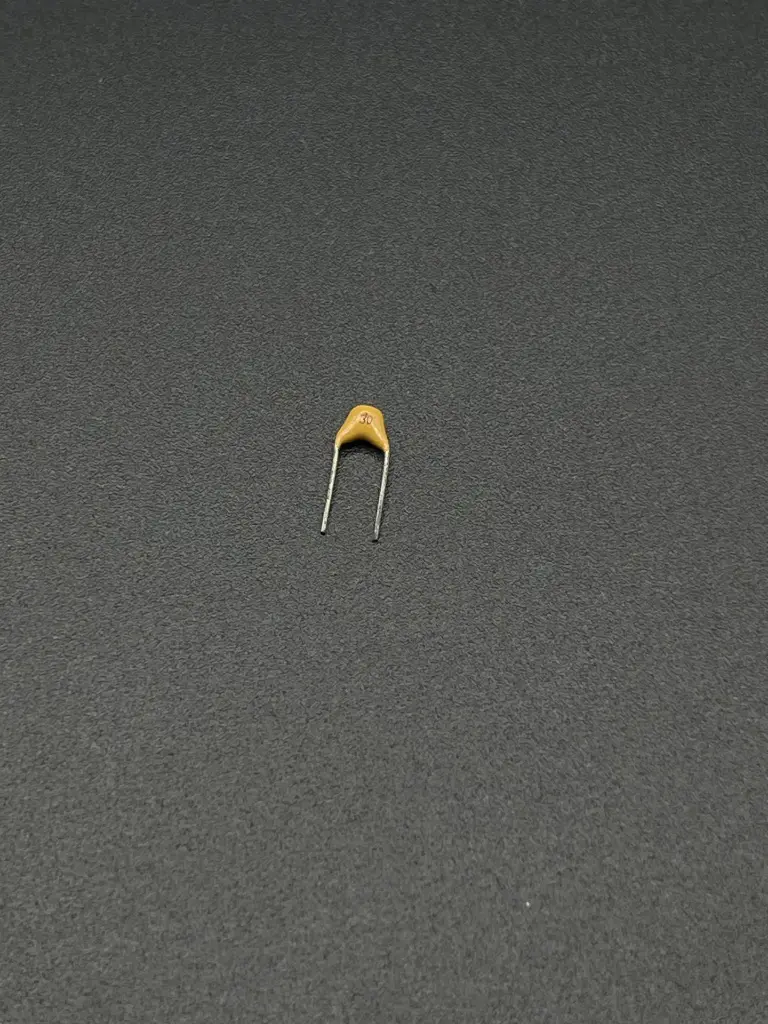

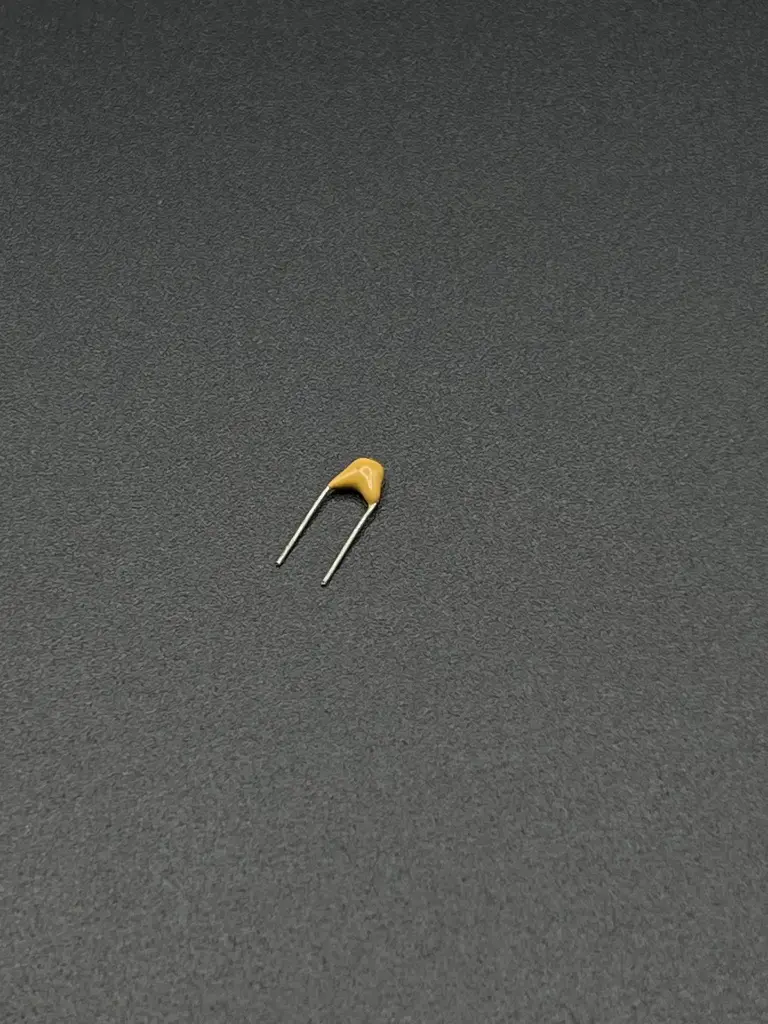

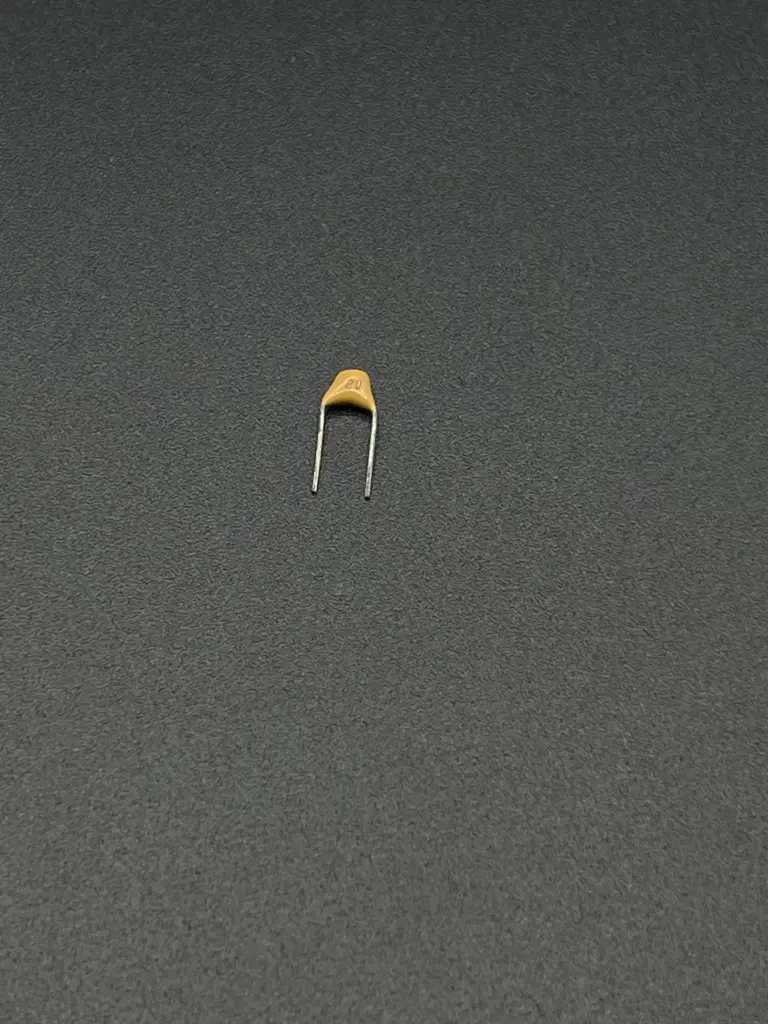

30pf monolithic capacitor
The 30pF monolithic capacitor is a high-precision ceramic capacitor designed for use in electronic circuits that require accurate and stable capacitance values. It features a monolithic ceramic construction that ensures durability and reliability, making it suitable for high-frequency applications, signal processing, and various electronic functions.
Key Features:
- Capacitance value of 30pF
- Monolithic ceramic construction for enhanced stability and reliability
- Low equivalent series resistance (ESR) for high-frequency performance
- Compact size ideal for space-constrained applications
- Wide operating temperature range
- Capacitance Value: 30pF
- Tolerance: ±5% (typical)
- Dielectric Material: Ceramic
- Voltage Rating: Typically 50V to 100V (check specific part for exact rating)
- Temperature Coefficient: ±10 ppm/°C (typical)
- Body Dimensions: Small, typically 2.0mm x 1.25mm (dimensions can vary)
- High-frequency and RF circuits
- Filtering and coupling applications
- Oscillator circuits
- Timing circuits
- Signal processing
- Insert the capacitor into the designated position on a PCB or breadboard.
- Solder the leads of the capacitor to secure it in place.
- Verify correct orientation and placement if polarized.
- Check circuit performance to ensure proper functionality after installation.
- Ensure the capacitor is operated within its voltage rating to avoid breakdown.
- Handle with care to prevent physical damage.
- Confirm capacitance value with a meter before installation to ensure it meets specifications.
