6A10

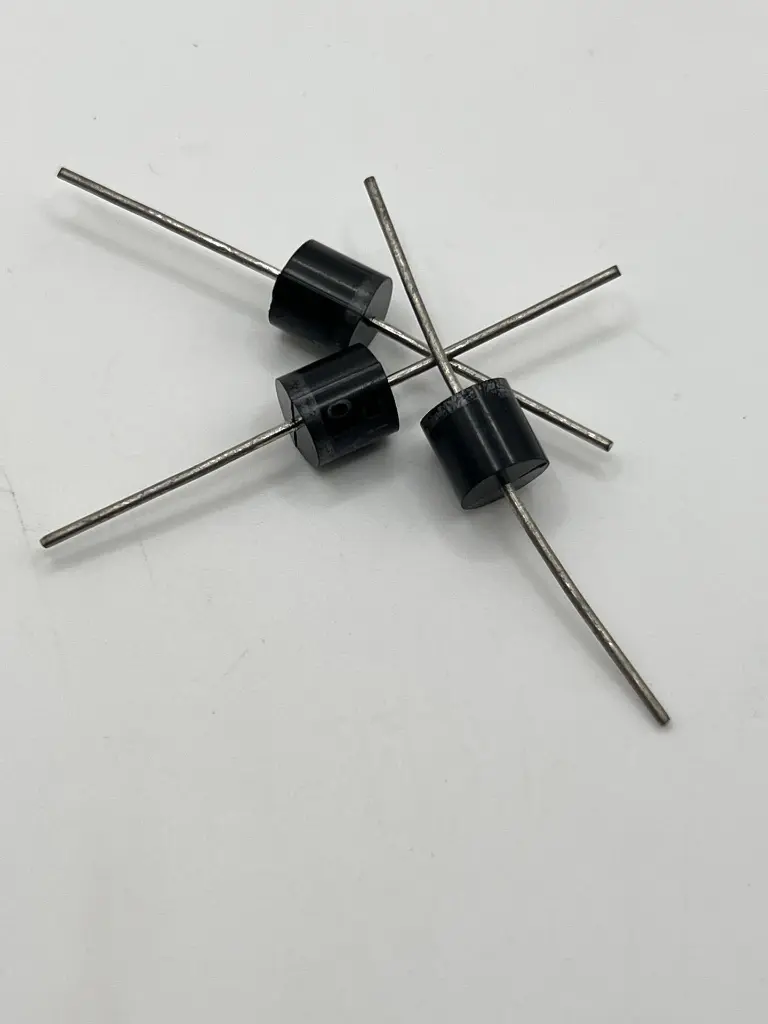

The 6A10 is a high-current rectifier diode designed for use in various power supply and conversion applications. It features a high forward current capability and a high reverse voltage rating, making it suitable for rectification in power supplies, inverters, and other high-power electronic circuits. The 6A10 diode is known for its robust construction and reliable performance under demanding conditions.
Key Features:
- High forward current capacity
- High reverse voltage rating
- Low forward voltage drop
- High surge current capability
- Reliable and durable construction
- Max Forward Current (If): 6A
- Max Reverse Voltage (Vr): 1000V
- Forward Voltage (Vf): 1.1V @ 6A
- Max Surge Current (Ifsm): 400A
- Max Power Dissipation (Pd): 3W
- Junction Temperature Range: -65°C to +150°C
- Package Type: DO-201
- Power supply rectification
- Inverters and converters
- Battery chargers
- DC power systems
- Freewheeling diodes
- High-power electronic circuits
- Connect the anode (A) to the positive side of the circuit and the cathode (K) to the negative side.
- Ensure the current and voltage ratings are within the specified limits to avoid damage.
- Use appropriate heat sinking or cooling if the diode is operating near its maximum power dissipation.
- Avoid exceeding the maximum current and voltage ratings.
- Ensure proper polarity to prevent reverse breakdown.
- Handle with care to avoid physical damage to the diode leads.
