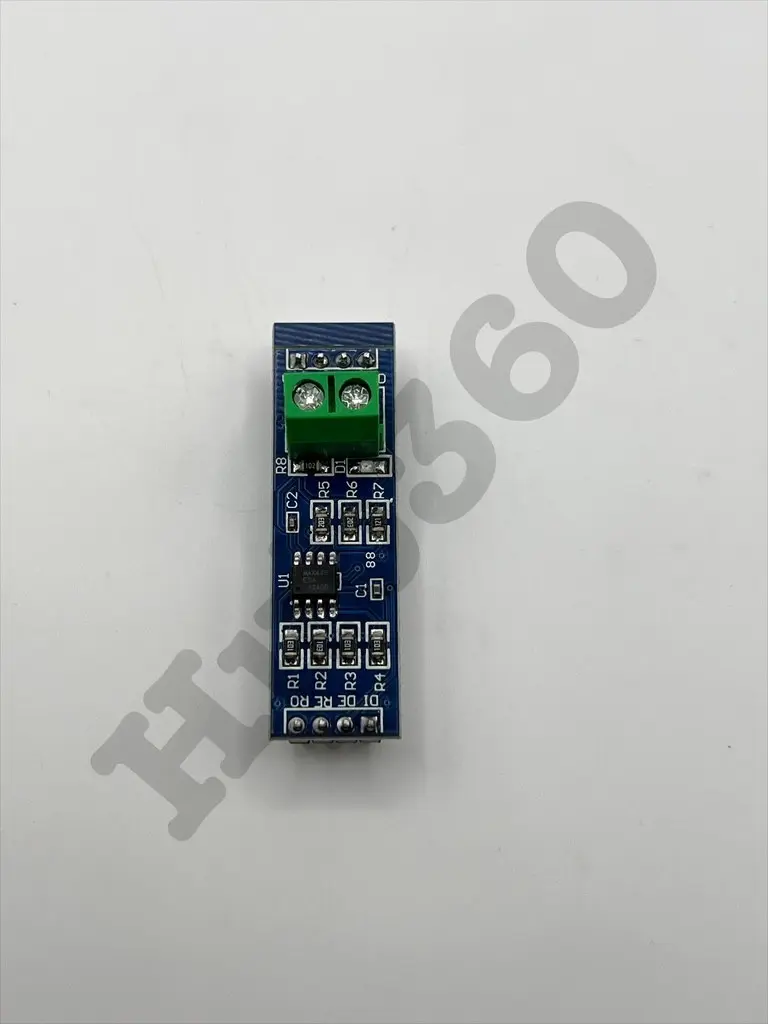

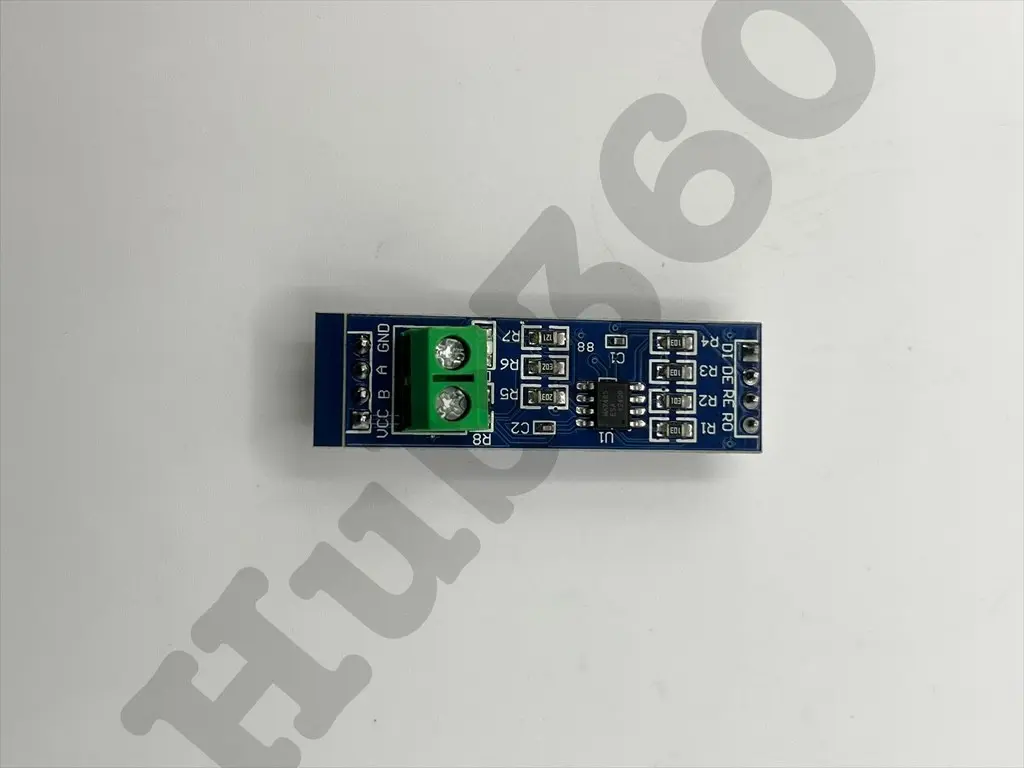

MAX485 to TTL converter
The MAX485 to TTL Converter is designed to interface between RS-485 communication networks and TTL-level logic systems. It uses the MAX485 IC, which is a low-power RS-485 transceiver. This converter is ideal for serial communication applications that require long-distance data transmission with noise immunity, such as in industrial control systems, data acquisition systems, and communication networks.
Key Features:
- Converts RS-485 signals to TTL level signals and vice versa
- Low power consumption
- Supports multi-point communication on RS-485 bus
- Wide operating voltage range
- High data rate support
- Compact design for easy integration
- IC Used: MAX485
- Input Type: RS-485
- Output Type: TTL
- Supply Voltage: 5V DC
- Current Consumption: 120µA (typical)
- Data Rate: Up to 2.5Mbps
- Operating Temperature Range: -40°C to +85°C
- Dimensions: Typically around 40mm x 30mm x 10mm (varies by module design)
- Communication Distance: Up to 1200 meters (at 9600 baud)
- Pin Configuration:
- RO (Receiver Output)
- DI (Driver Input)
- A/B (RS-485 Differential Pair)
- DE/RE (Driver Enable/Receiver Enable)
- VCC (Supply Voltage)
- GND (Ground)
- Serial Communication: Interfaces between RS-485 and TTL logic systems for data communication.
- Industrial Control: Used in industrial systems for reliable long-distance data transmission.
- Data Acquisition Systems: Integrates with data acquisition systems for remote data collection.
- Communication Networks: Supports multi-point communication in networks using RS-485 protocol.
- DIY Projects: Ideal for hobbyist projects involving serial communication over RS-485.
