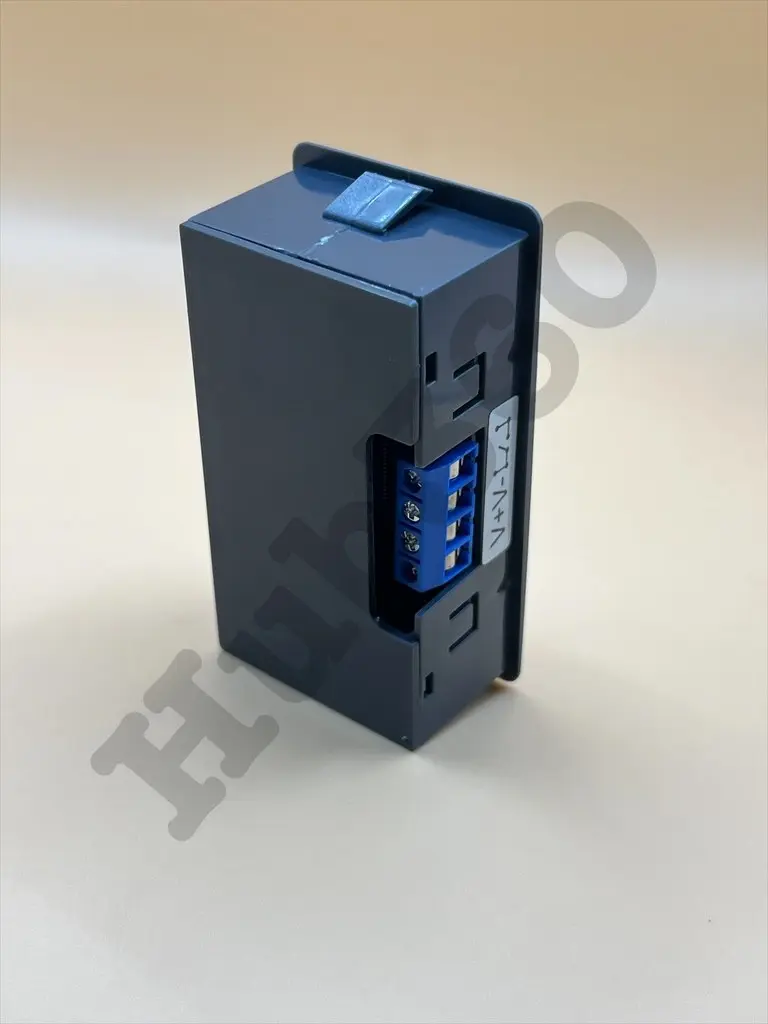

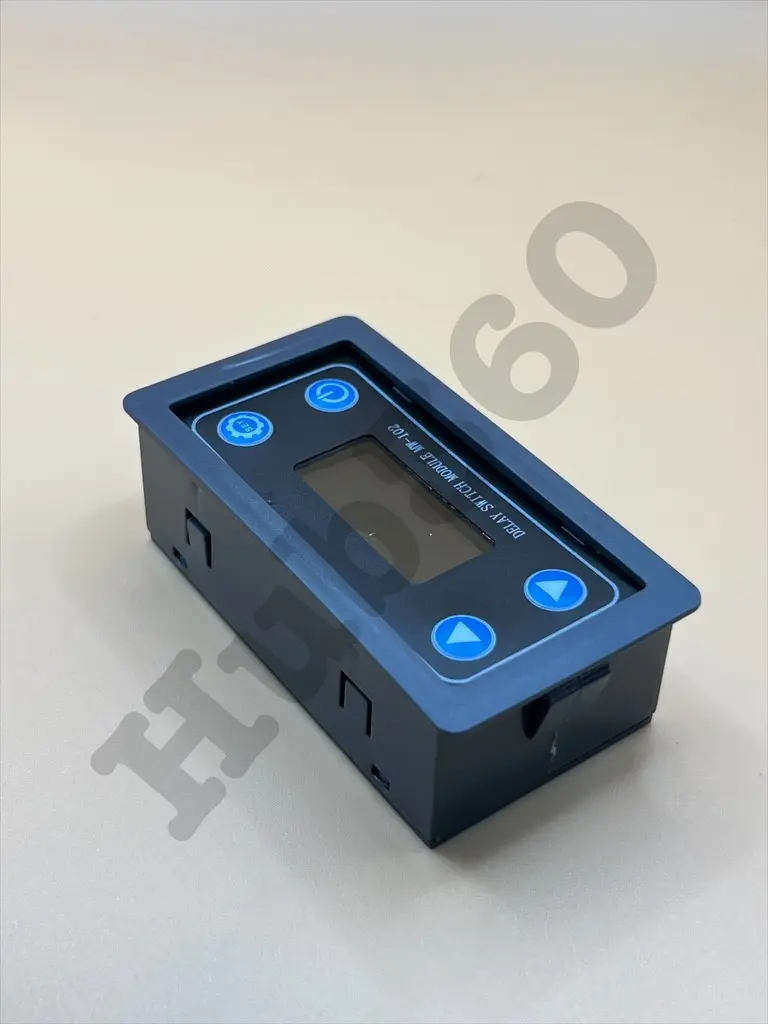

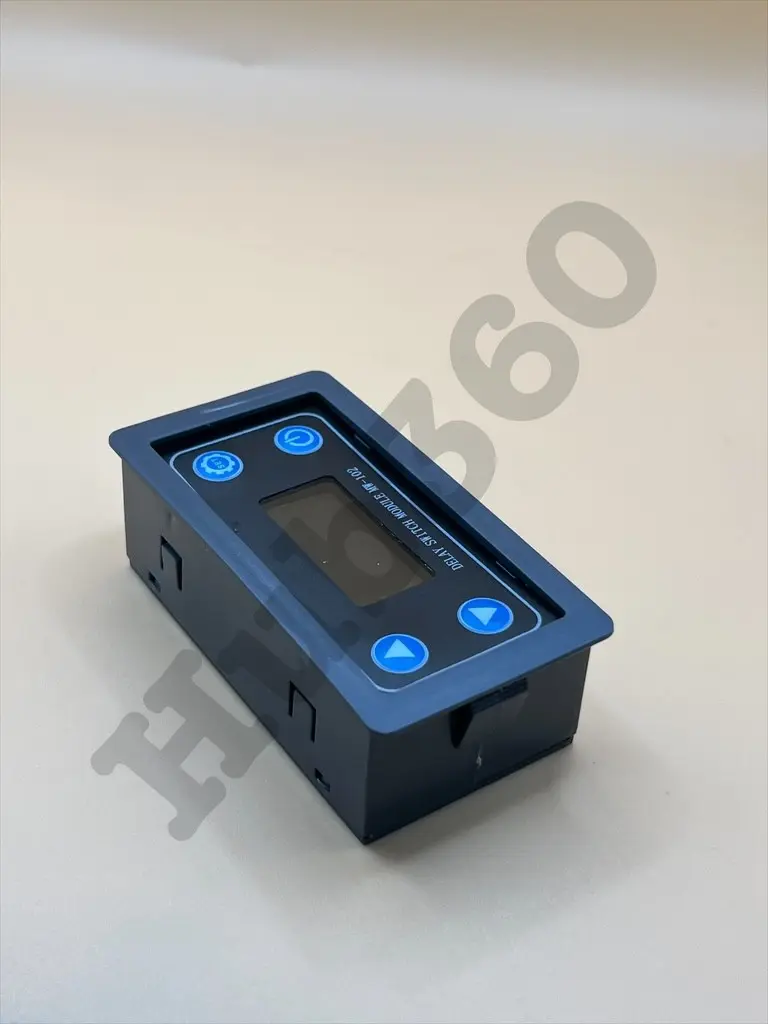

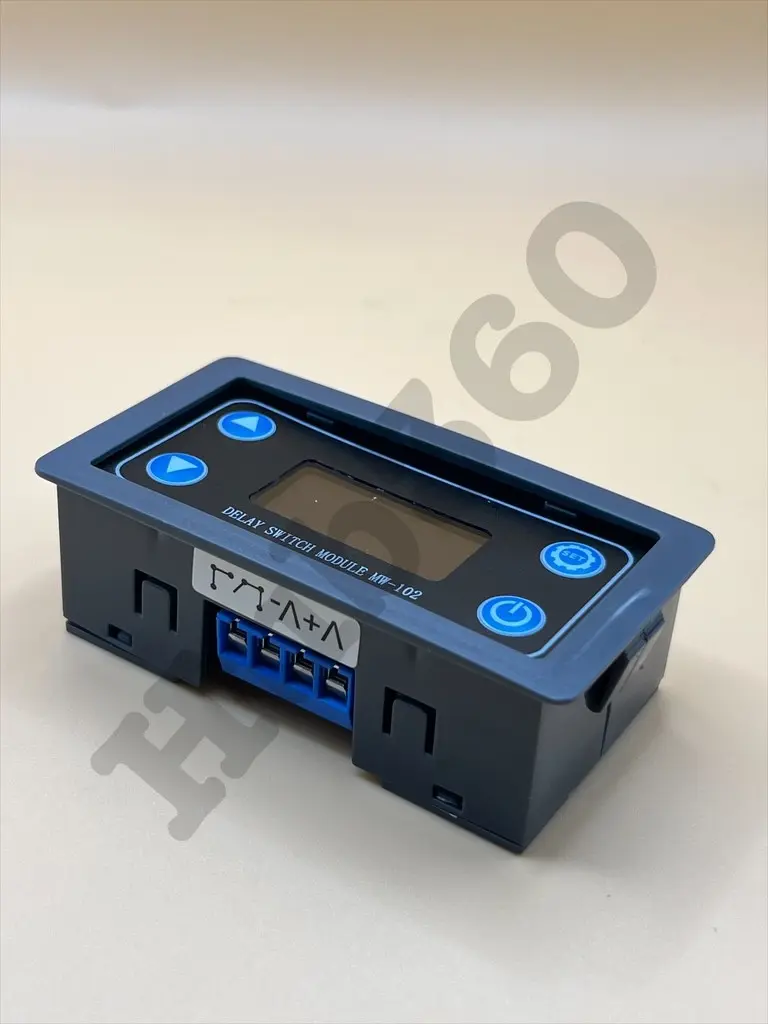

XY-WJ01 one way relay delay timmer switch

Description:

A compact module combining a programmable timer with an SPST relay for timed control of external devices. Activates/deactivates the relay after a set delay upon receiving a trigger signal.

Key Features:

• Controls one external device via the built-in SPST relay.
• Programmable delay to activate/deactivate the relay.
• Supports various trigger modes (button press, voltage level change, external switching signal).
• Wide DC voltage range (typically 6V to 30V).
• LCD display for configuration, monitoring delay, and viewing operating mode.
• Sleep mode for power conservation (dims display during inactivity).
• Memory function retains programmed settings after power cycles.

Technical Specifications (Refer to Datasheet):

• Operating Voltage: Typically 6V to 30V DC (exact range varies)
• Timing Range: Usually 0.01 seconds to 9999 minutes (specific range varies)
• Relay Output: SPST relay, typically rated for 30V DC at 10A or 220V AC at 5A (check datasheet)
• Display: LCD screen
• Dimensions: Refer to datasheet for specific model dimensions

Applications:

• Time-delayed control of lights, motors, or other devices.
• Automatic shutoff systems.
• Simple automation projects with timed relay activation.
• Educational tool for learning about timers and relay control.

Datasheet:

Consult the XY-WJ01 module datasheet for detailed technical information. XY-WJ01 datasheet
