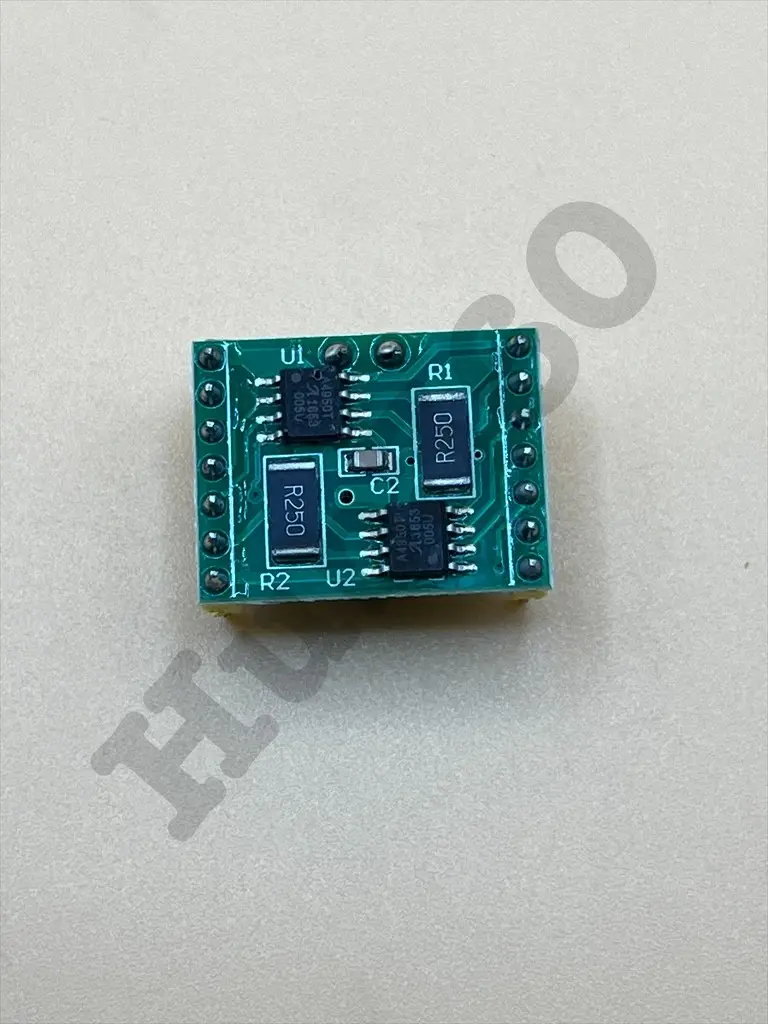

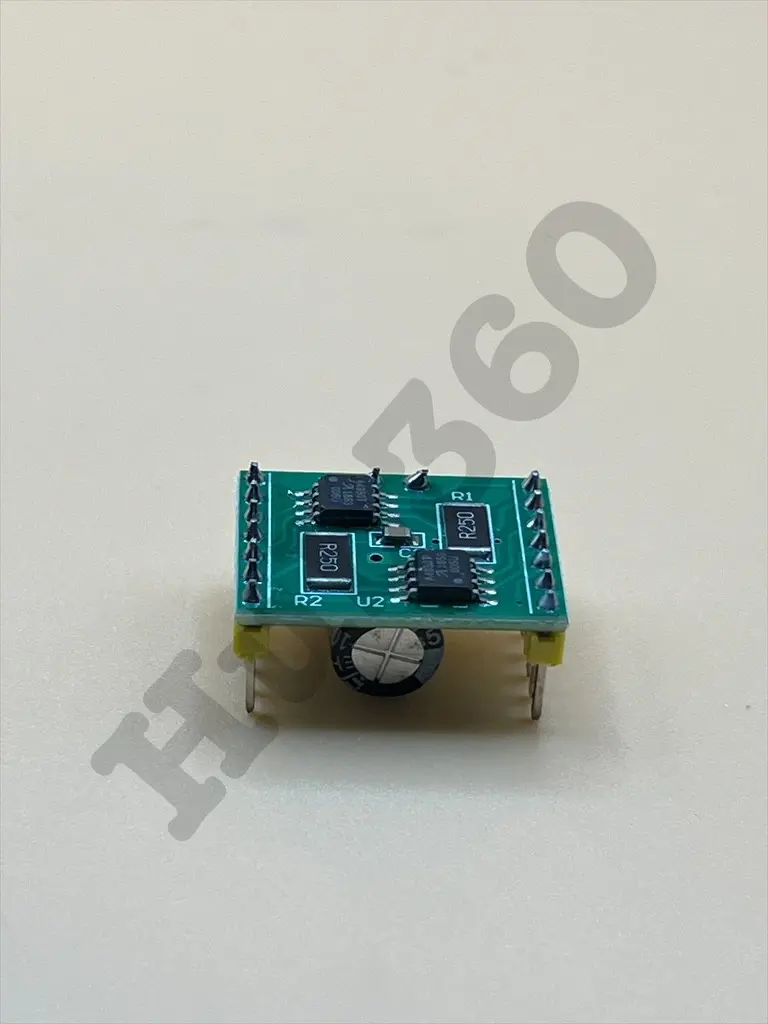

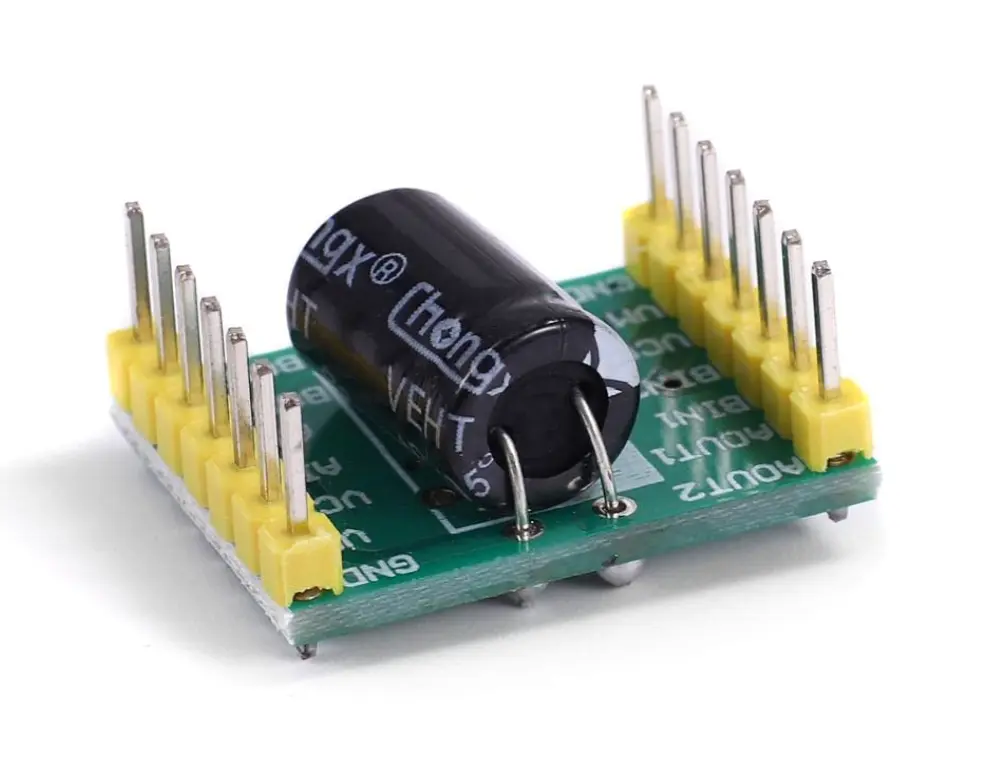

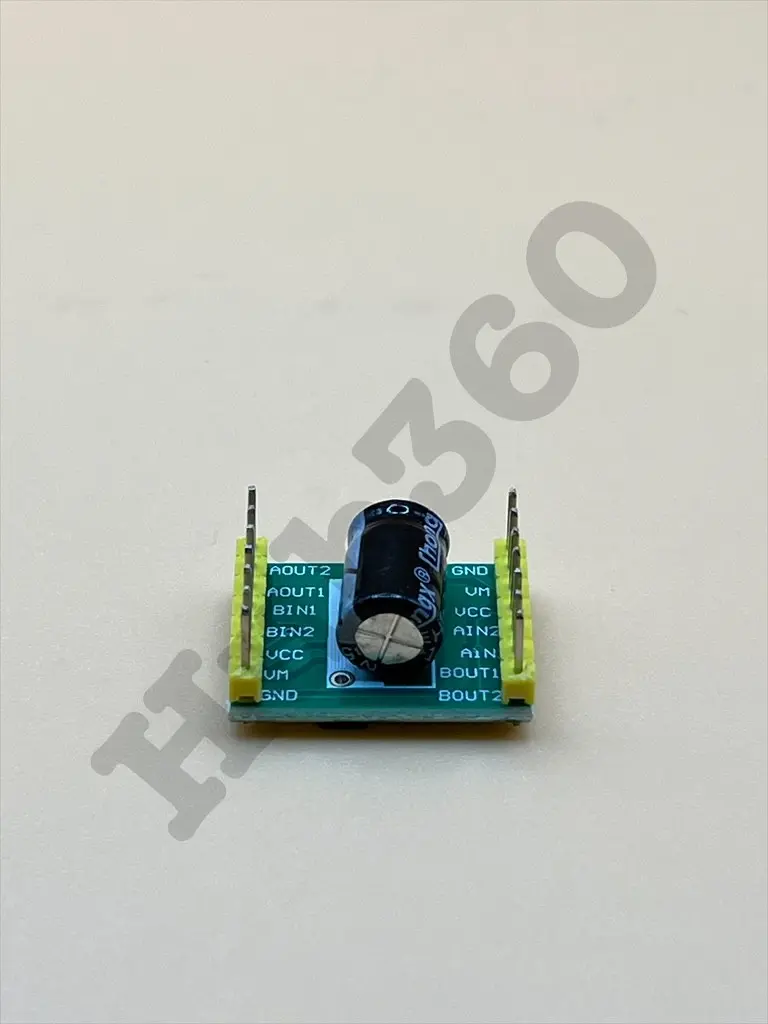

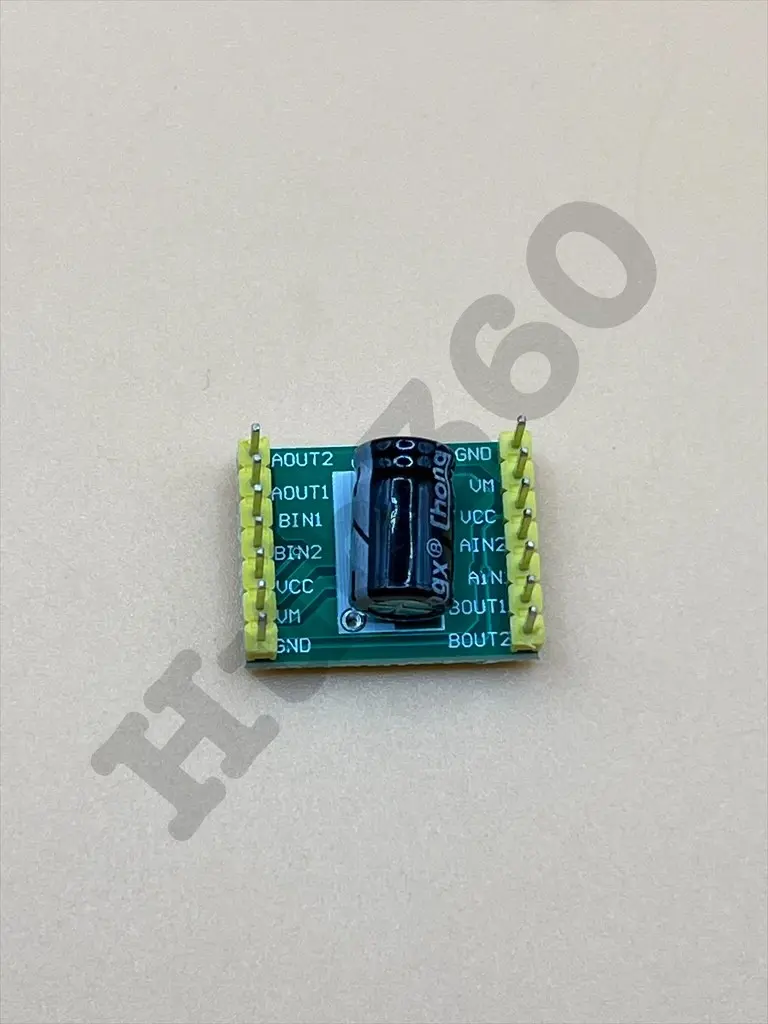

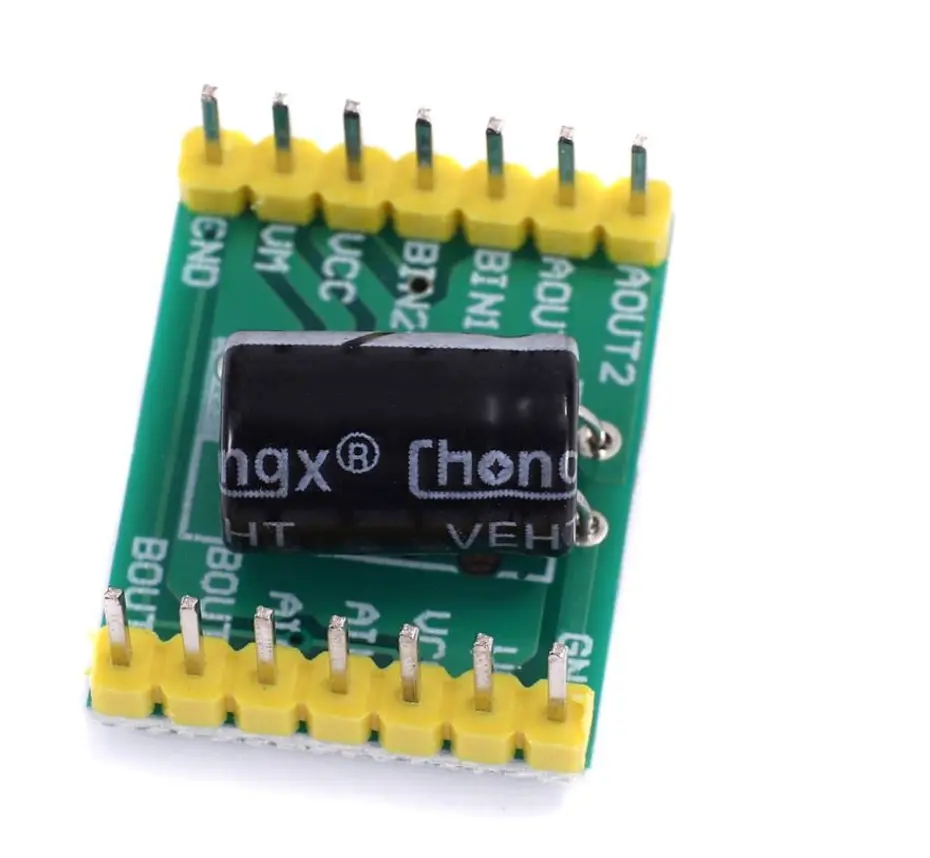

A4950 TB6612 Dual motor driver module

Description: The A4950 TB6612 Dual Motor Driver Module is a versatile motor driver board designed for controlling two DC motors or a bipolar stepper motor. It integrates dual H-bridge circuits based on the A4950 and TB6612FNG motor driver ICs, providing robust and efficient motor control capabilities. This module is ideal for robotics, automation projects, and other applications requiring precise motor control with easy interfacing to microcontrollers.
Key Features:

• Dual motor driver with H-bridge configuration
• Supports DC motors and bipolar stepper motors
• Operating Voltage: 2.7V to 15V
• Output Current: Up to 3A per channel (peak)
• PWM (Pulse Width Modulation) speed control
• Forward, reverse, brake, and coast modes
• Overcurrent and thermal shutdown protection
• Status LEDs for motor operation indication
• Compact and easy to integrate into projects

Technical Specifications:

• Motor Driver ICs: A4950 and TB6612FNG
• Motor Types: DC motors, bipolar stepper motors
• Input Voltage: 2.7V to 15V
• Output Current: Up to 3A per channel (peak)
• Control Interface: PWM control for speed, direction control inputs
• Protection Features: Overcurrent, thermal shutdown
• Dimensions: Compact size suitable for robotics and small-scale automation
• Weight: Lightweight for ease of handling

Applications:

• Robotics and motorized projects
• Automation systems
• Remote-controlled vehicles
• CNC machines and 3D printers
• Home appliances and DIY electronics

Datasheet: For detailed technical information, refer to the TB6612 Motor Driver Datasheet.
