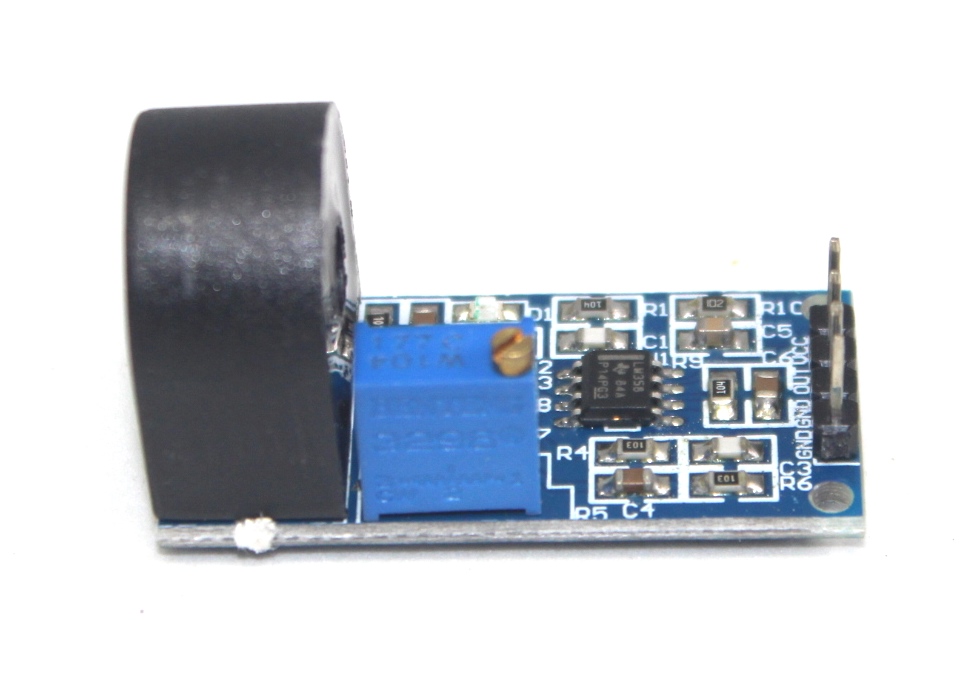

5A AC Current transformer/sensor
The 5A AC Current Transformer/Sensor is a precision device used for measuring alternating current (AC) in electrical circuits. It typically converts high AC currents into a proportional low-current signal suitable for measurement by analog or digital devices such as microcontrollers or data loggers. This sensor is crucial for applications requiring accurate monitoring and control of electrical currents in industrial, commercial, and residential settings.
Key Features:
- Measures AC currents up to 5A
- Converts high AC currents to a low-current signal
- High accuracy and linearity
- Compact and lightweight design
- Easy to integrate into existing systems
- Isolation between primary (measured) and secondary (output) circuits
- Provides galvanic isolation for safety
- Low phase shift and excellent frequency response
- Available in various form factors (e.g., PCB-mount, split-core, solid-core)
- Measurement Range: Up to 5A AC
- Output Signal: Typically 0-5A to 0-5V or 0-10V (customizable)
- Accuracy: Typically ±1% to ±0.5%
- Frequency Range: 50Hz/60Hz (standard), higher frequencies available
- Burden (Secondary Load): Depends on model, typically low impedance
- Insulation Voltage: Suitable for high-voltage systems (specified by model)
- Operating Temperature: Typically -40°C to +85°C
- Dimensions: Varies by model (e.g., compact PCB-mount to larger split-core)
- Energy monitoring systems
- Power quality analysis
- Industrial automation
- Renewable energy systems
- HVAC (Heating, Ventilation, and Air Conditioning)
- Power distribution monitoring
- Smart grid applications
No Specifications
