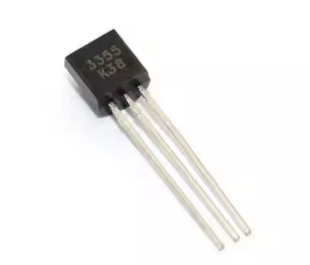

2SC3355 high frequency FM transmitter
Description: The 2SC3355 is a high-frequency NPN transistor designed for applications requiring high gain and low noise at RF frequencies. It is suitable for use in RF amplification stages, oscillators, and RF transmitter circuits, including FM transmitters. The transistor offers excellent high-frequency performance with low capacitance and low noise figure, making it ideal for high-frequency communication systems.
Key Features:
- High-frequency NPN transistor
- Low noise figure
- High gain (typically 12 dB at 500 MHz)
- High transition frequency (fT) of 6 GHz (typical)
- Low capacitance (Cob) for stability at high frequencies
- RoHS compliant
- Collector-Base Voltage (VCBO): 25V
- Collector-Emitter Voltage (VCEO): 15V
- Emitter-Base Voltage (VEBO): 2V
- Collector Current (IC): 50mA
- Power Dissipation (Ptot): 150mW
- Operating Frequency: Up to several GHz
- Package Type: SOT-23
- RF amplifiers
- Oscillators
- FM transmitters
- High-frequency communication systems
No Specifications
