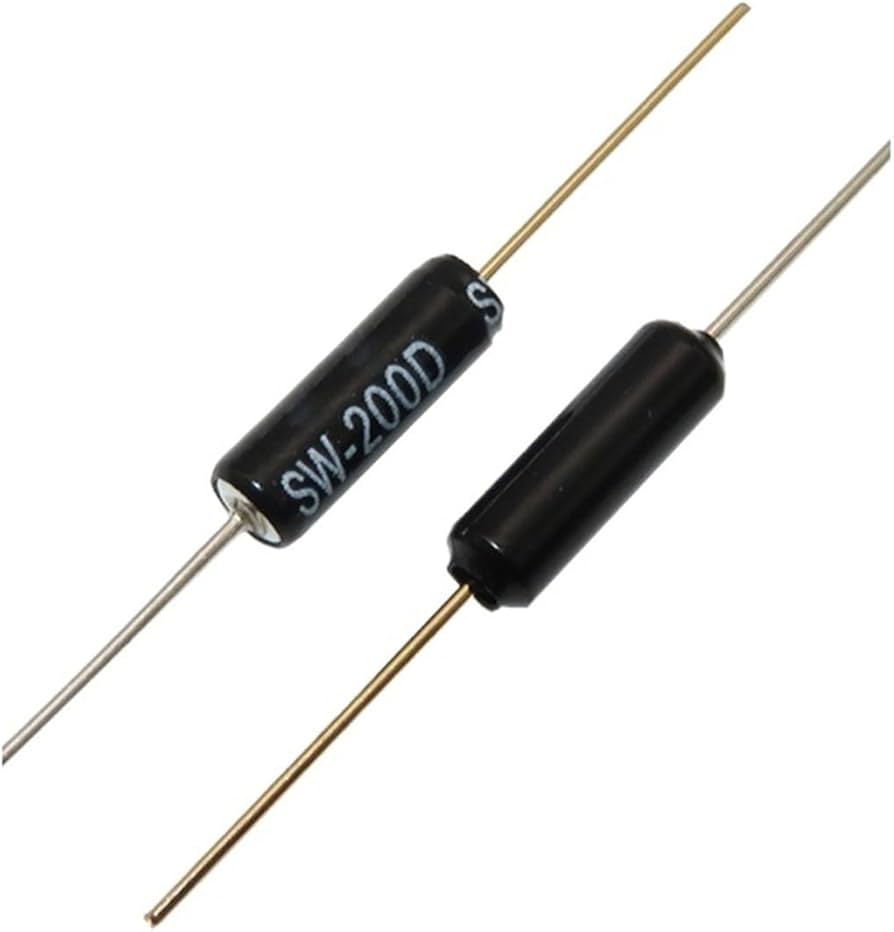

SW-200D vibration ball tilt angle switch
Product Name: SW-200D Vibration Ball Tilt Angle Switch
Description: The SW-200D is a vibration ball tilt angle switch designed to detect the orientation or tilt of an object relative to the ground. It features a small metal ball inside a conductive housing that makes or breaks contact with electrical terminals depending on its tilt angle. This switch is commonly used in applications where tilt sensing is required, such as alarm systems, tilt sensors, and automotive electronics.
Key Features:
- Vibration ball tilt angle switch
- Detects tilt or orientation changes
- Simple mechanical operation
- Reliable and durable construction
- Compact size for easy integration
- RoHS compliant
- Contact Rating: Up to 12V DC, 50mA
- Operating Angle: Typically ±10° to ±20° (depending on orientation)
- Contact Type: Normally open (NO)
- Contact Resistance: <100mΩ
- Operating Temperature Range: -40°C to +85°C
- Housing Material: Plastic or metal (depending on model)
- Tilt sensors
- Alarm systems
- Automotive electronics
- Level indicators
- Robotics
- Consumer electronics
No Specifications
