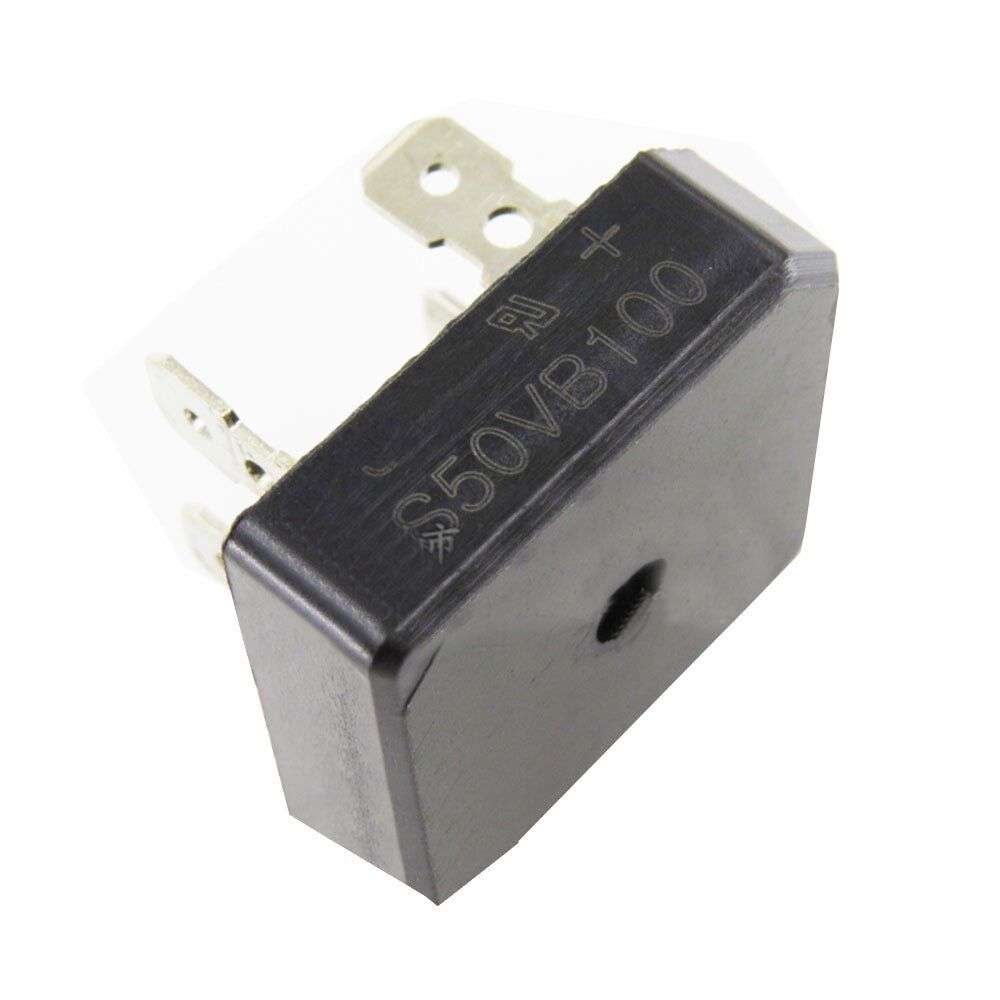

S50VB100 50A welding machine Rectifier
Description: The S50VB100 is a high-current, high-voltage single-phase bridge rectifier designed for industrial applications, particularly in welding machines. It efficiently converts alternating current (AC) to direct current (DC), ensuring reliable performance in demanding environments. The rectifier is housed in a robust package, capable of handling high surge currents and operating at elevated temperatures.
Key Features:
- High-current bridge rectifier
- Maximum Average Rectified Output Current (I_O): 50A
- Maximum Repetitive Peak Reverse Voltage (V_RRM): 1000V
- Low forward voltage drop
- High surge current capability
- Durable construction for industrial applications
- RoHS compliant
- Maximum Average Rectified Output Current (I_O): 50A
- Peak Repetitive Reverse Voltage (V_RRM): 1000V
- Maximum RMS Bridge Input Voltage (V_RMS): 700V
- Maximum DC Blocking Voltage (V_DC): 1000V
- Maximum Forward Voltage Drop (V_F): 1.1V (at I_F = 50A, T_A = 25°C)
- Surge Overload Rating (I_Surge): 400A
- Operating Temperature Range: -55°C to +150°C
- Package Type: VB (4-SIP)
- Welding machines
- Industrial power supplies
- Battery chargers
- Motor controls
- Heavy machinery
No Specifications
