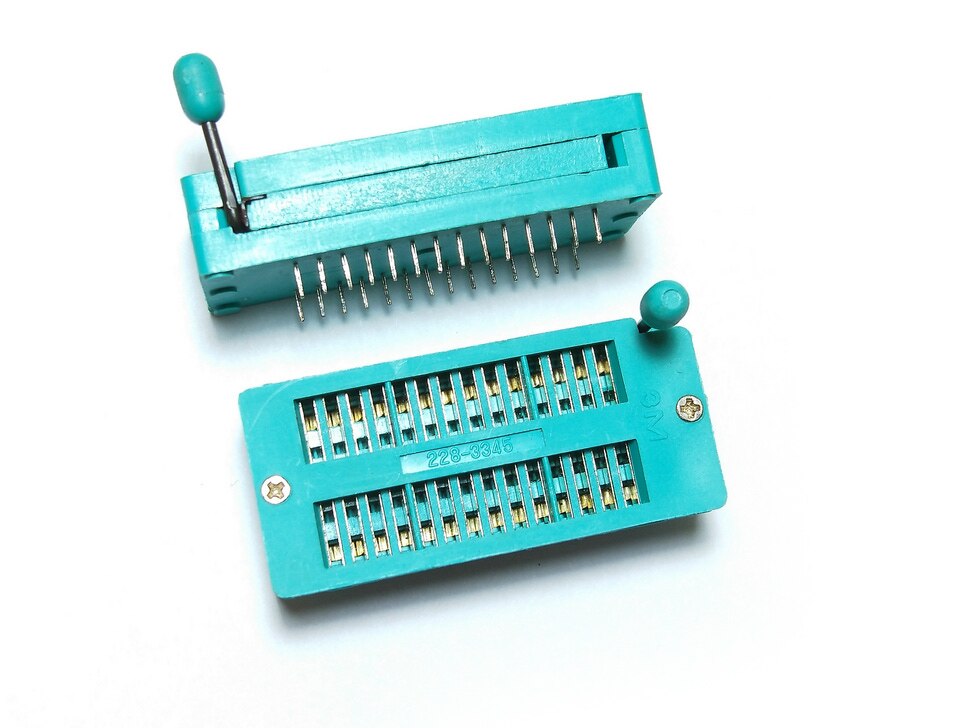

28pin Wide base ZIF socket
The 28-pin wide base ZIF (Zero Insertion Force) socket is designed to hold 28-pin Dual In-line Package (DIP) integrated circuits with a wider pin spacing. This socket allows for the easy and damage-free insertion and removal of ICs, making it ideal for prototyping, testing, and applications where ICs are frequently replaced.
Key Features:
- Compatibility: Accommodates 28-pin wide base DIP ICs
- Insertion Force: Zero Insertion Force (ZIF) mechanism ensures easy and safe insertion and removal of ICs
- Lever Operation: Includes a lever or slide mechanism to open and close the contacts, securing the IC when engaged
- Durability: Made from high-quality materials to ensure long-lasting performance
- Contact Material: Gold-plated or tin-plated contacts for corrosion resistance and reliable electrical connections
- Pin Count: 28
- Pin Pitch: Standard 2.54 mm (0.1 inches) pitch
- Socket Type: Zero Insertion Force (ZIF)
- Contact Material: Gold-plated or tin-plated contacts for improved conductivity and resistance to corrosion
- Housing Material: High-temperature resistant plastic to withstand soldering processes
- Dimensions: Specific to the 28-pin wide base DIP form factor, adhering to industry standards
- Prototyping: Ideal for development boards and prototypes, allowing easy swapping of ICs during design and testing phases.
- Repair and Maintenance: Facilitates the replacement of ICs in existing electronic devices without risking damage from repeated insertions and removals.
- Production: Suitable for low-volume production runs where ICs might need frequent changes or upgrades.
- Educational: Widely used in educational kits and projects to demonstrate the use of various ICs without the need for soldering.
No Specifications
