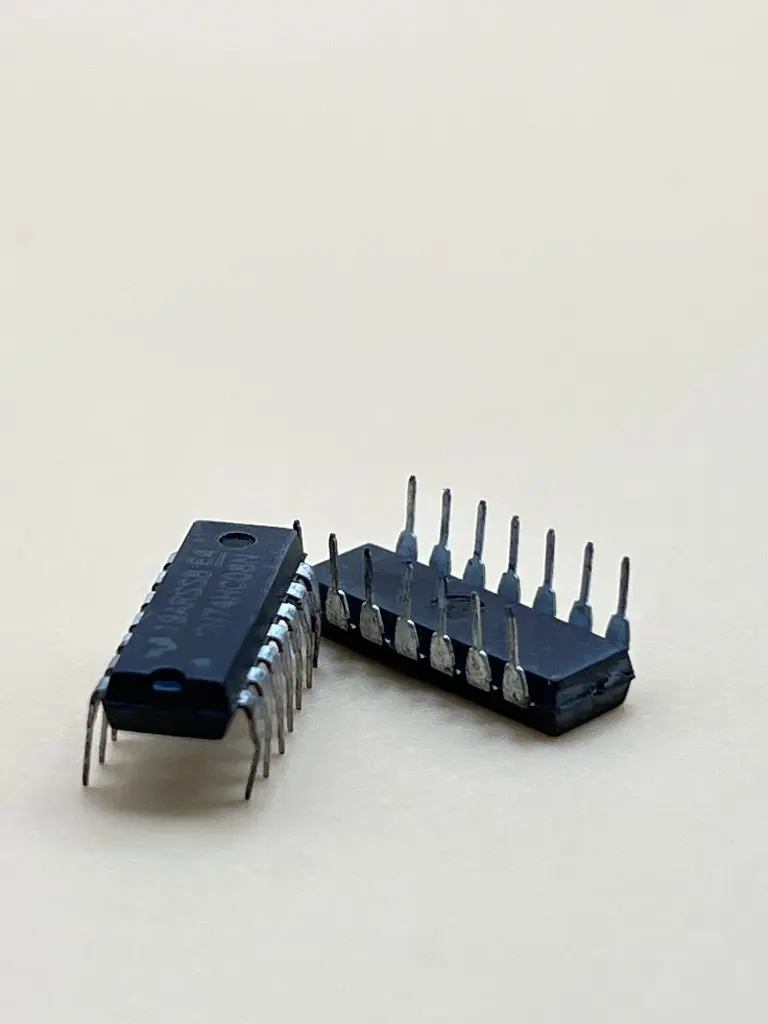

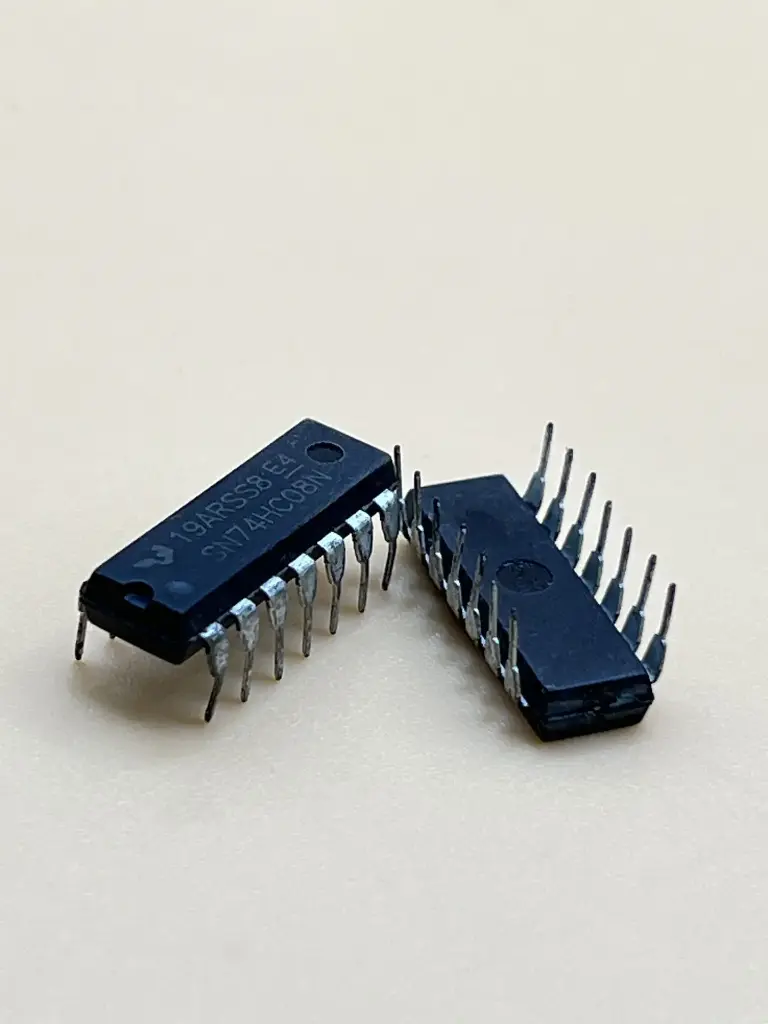

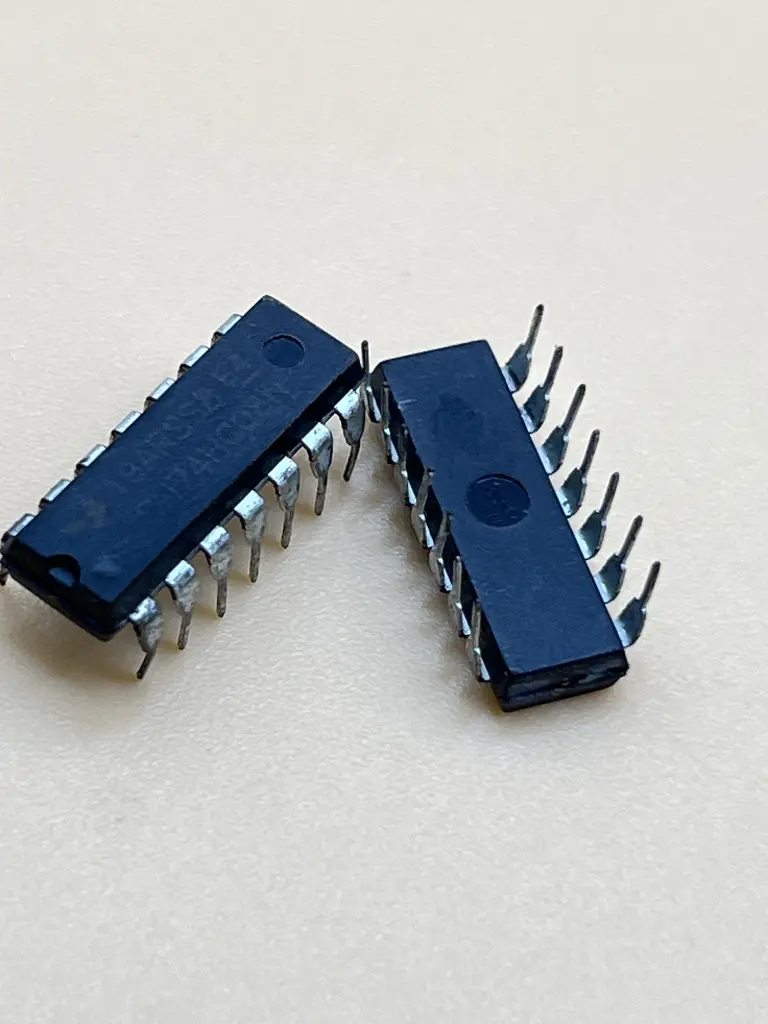

SN74HC08N (74HC08) Logic circuit chip
Description:
The SN74HC08N is a high-speed CMOS quad 2-input AND gate logic circuit chip. It is part of the 74HC series of logic devices and offers improved performance over standard CMOS devices. This chip features low power consumption, high noise immunity, and the ability to drive 10 LSTTL loads. It is widely used in digital circuits requiring AND logic operations and is suitable for various applications in computing and communication systems.
Key Features:
- Quad 2-input AND gates
- High-speed CMOS technology
- Low power consumption
- High noise immunity
- Wide operating voltage range: 2V to 6V
- Compatible with TTL logic levels
- Inputs are protected against static discharge
- Package Type: 14-pin DIP
- Supply Voltage (V_CC): 2V to 6V
- Input Voltage (V_IN): 0V to V_CC
- Output Voltage (V_OUT): 0V to V_CC
- Input High Voltage (V_IH): 3.15V (minimum) at V_CC = 6V
- Input Low Voltage (V_IL): 1.35V (maximum) at V_CC = 6V
- Output Current (I_O): ±25mA
- Quiescent Supply Current (I_CC): 2µA (maximum)
- Propagation Delay Time: 10ns (typical) at V_CC = 5V, C_L = 15pF
- Operating Temperature Range: -40°C to +85°C
- Computing Systems: Logic operations in microprocessors and digital systems.
- Communication Equipment: Signal processing and control in communication devices.
- Industrial Control: Logic control in automation and control systems.
- Consumer Electronics: Digital logic functions in various electronic devices.
- Automotive: Logic operations in automotive electronics.
